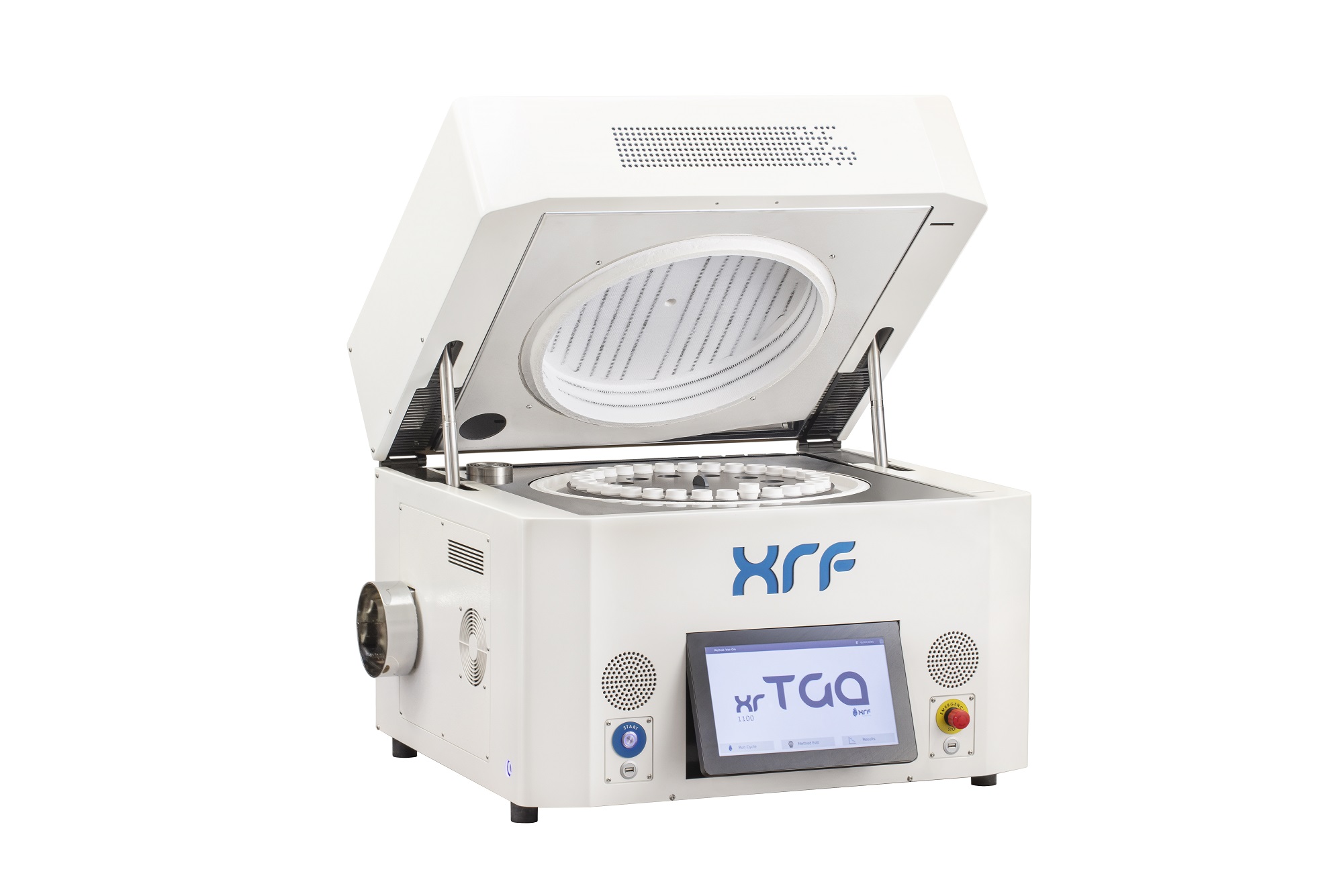

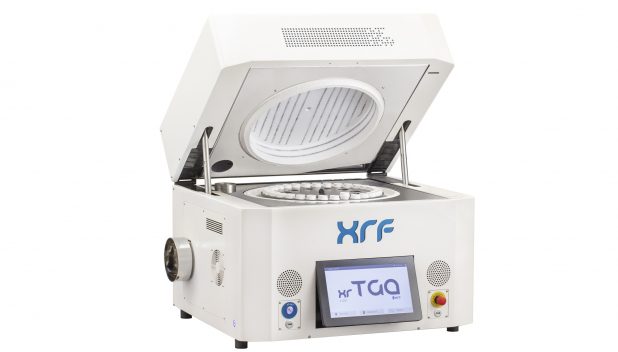

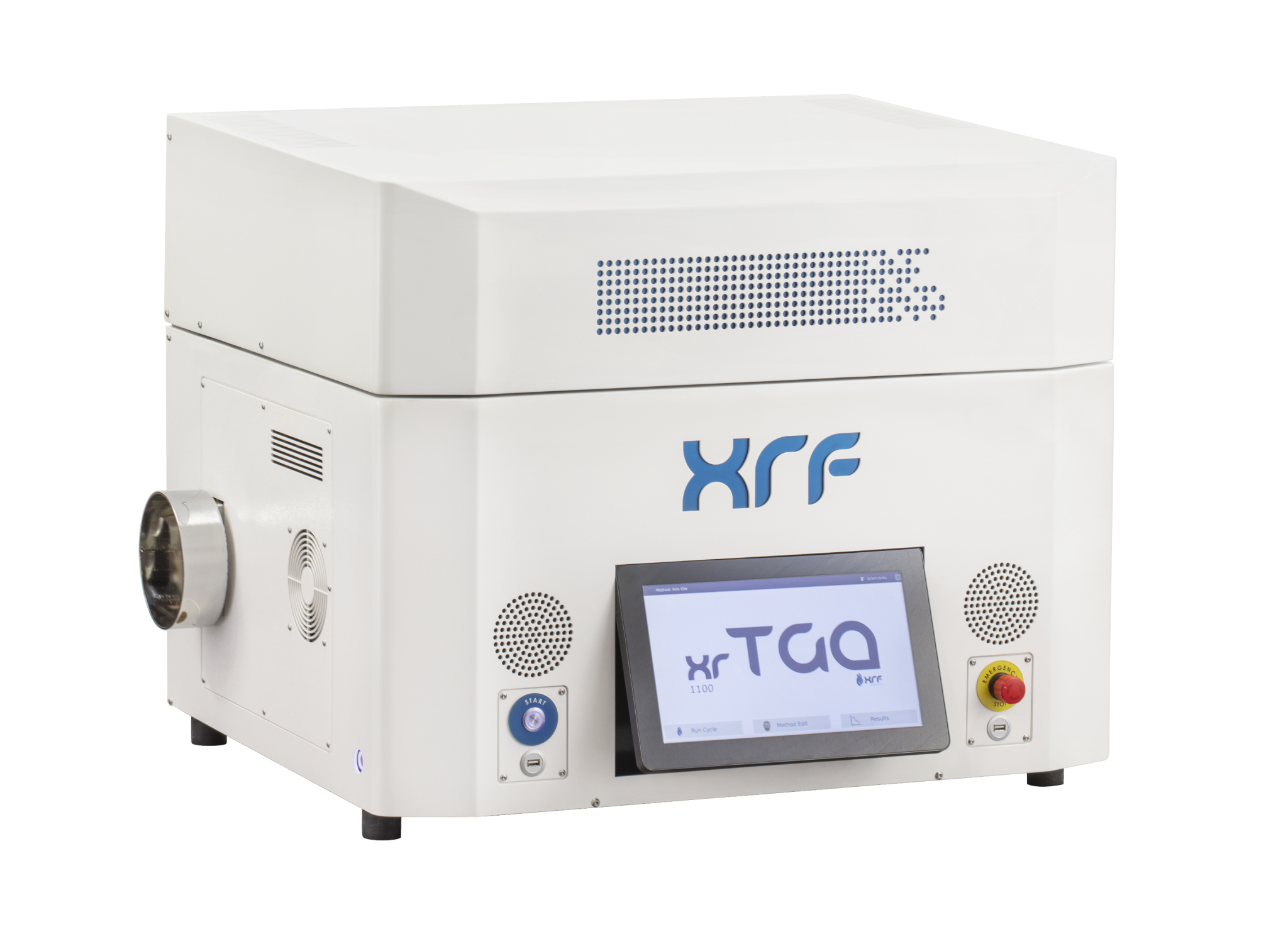

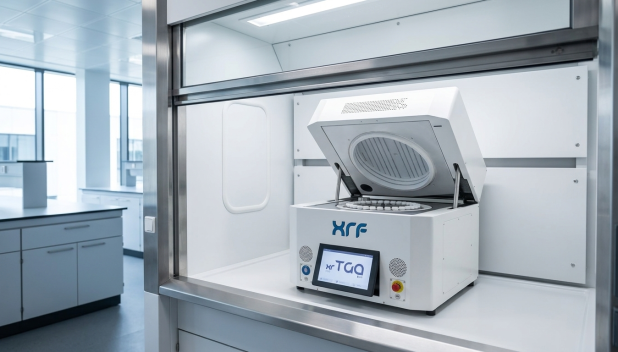

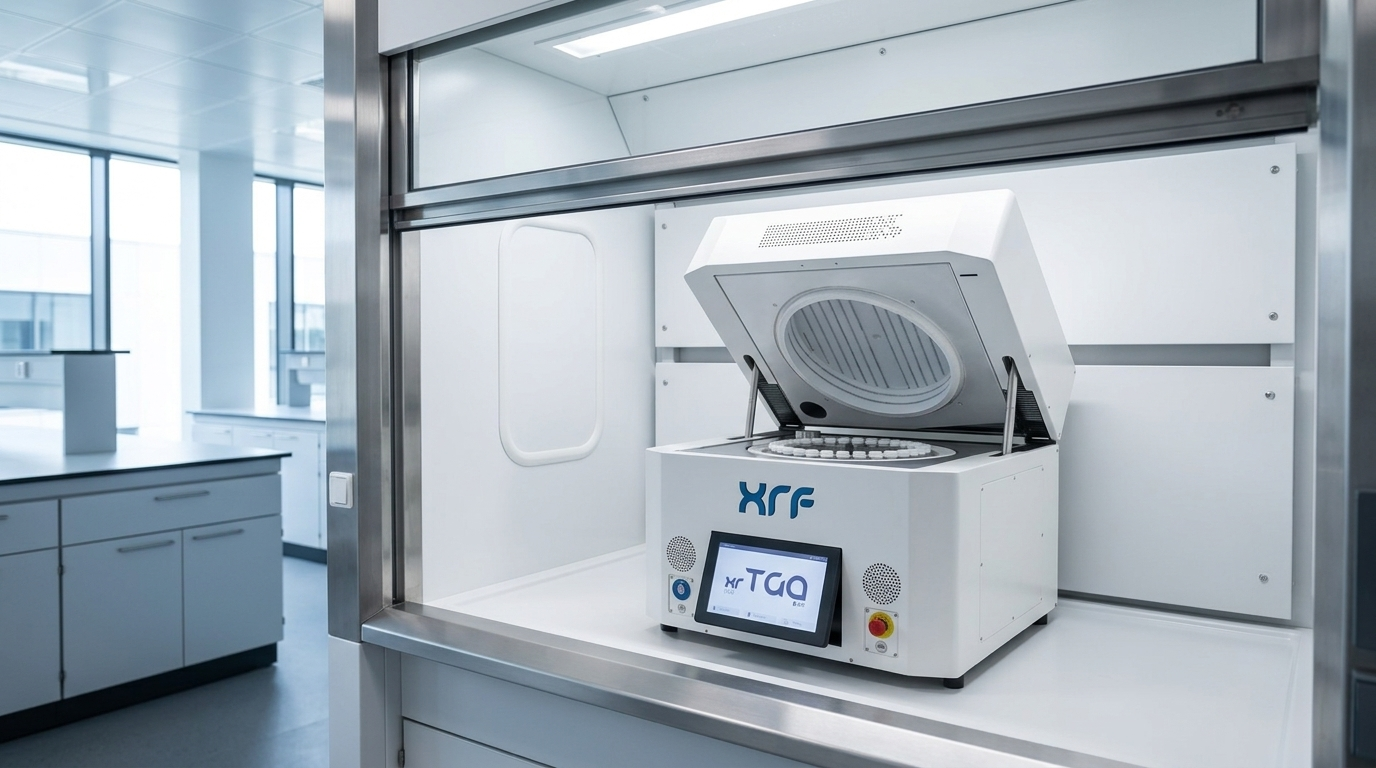

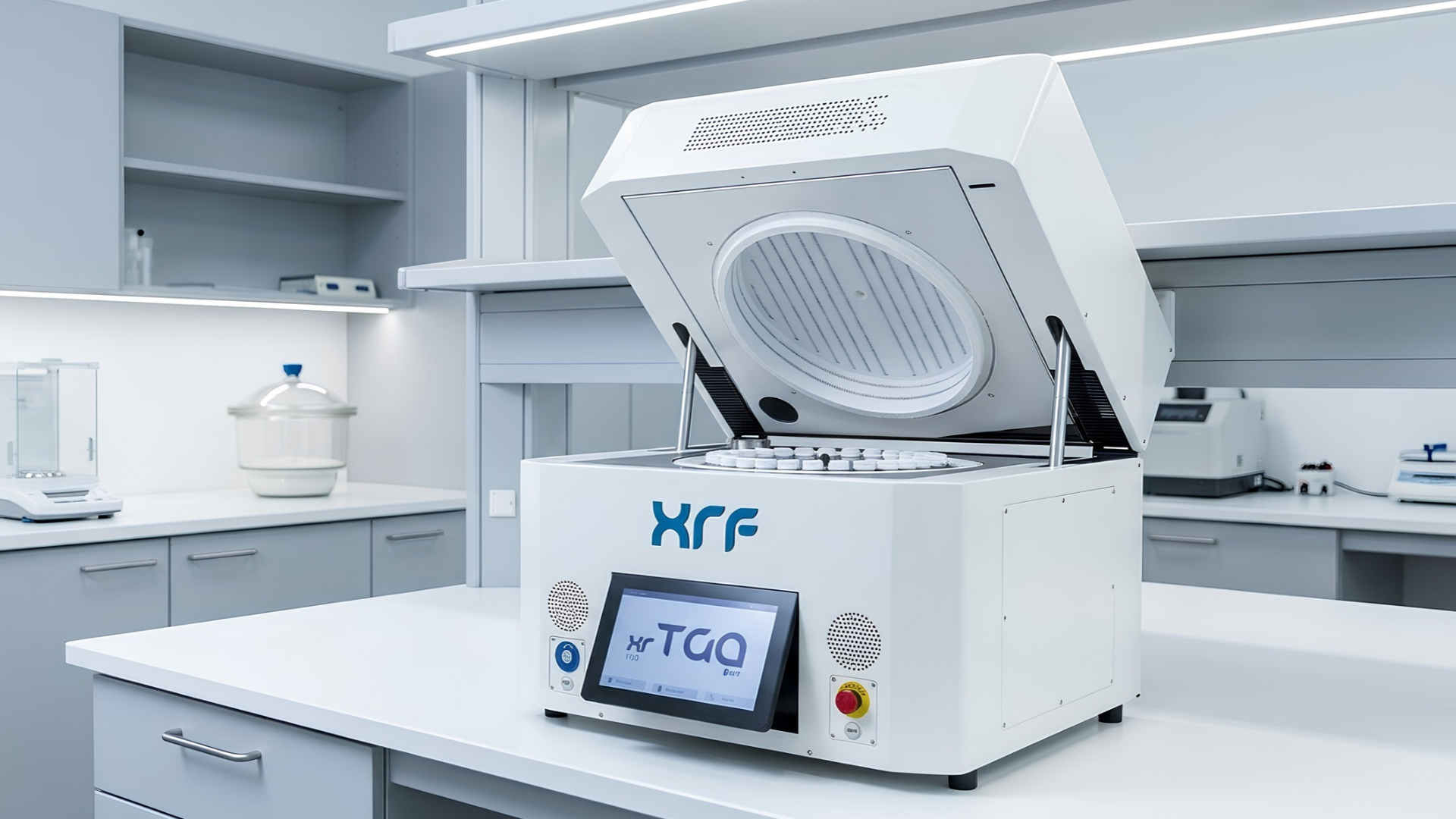

    Built with industrial users and large-scale scientific facilities inmind, the XRF Scientific automated macro thermogravimetric analyser (TGA) is a high-throughput solution for a wide range of thermal analysis applications. Our TGA system is based on 30 years’ experience developing precise heating and weighing solutions for applications across the full spectrum of science and industry.

    Thermogravimetry sets the standard for thermal decomposition testing for parameters as varied as moisture, volatiles, ash, fixed-carbon, and Loss on Ignition (LOI) content. Our TGA analyser leverages proprietary heating and weighing systems to continuously monitor sample mass changes over time as a function of temperature. User-defined thermal programs can be easily established using an intuitive touchscreen interface, enabling customers to establish different thermogravimetric profiles depending on their materials/phenomena of interest.

    Our brand-new TGA adds value to high-throughput workflows with an increased sample capacity and greater temperature capabilities without a significant uptick in cost.

    Key Features

    • 30 position carousel for larger throughput
    • Higher maximum temperature range up to 1100° C
    • Highly automated and user-friendly interface
    • Fast heating and cooling cycle times
    • Fully integrated PC without the need for an external unit

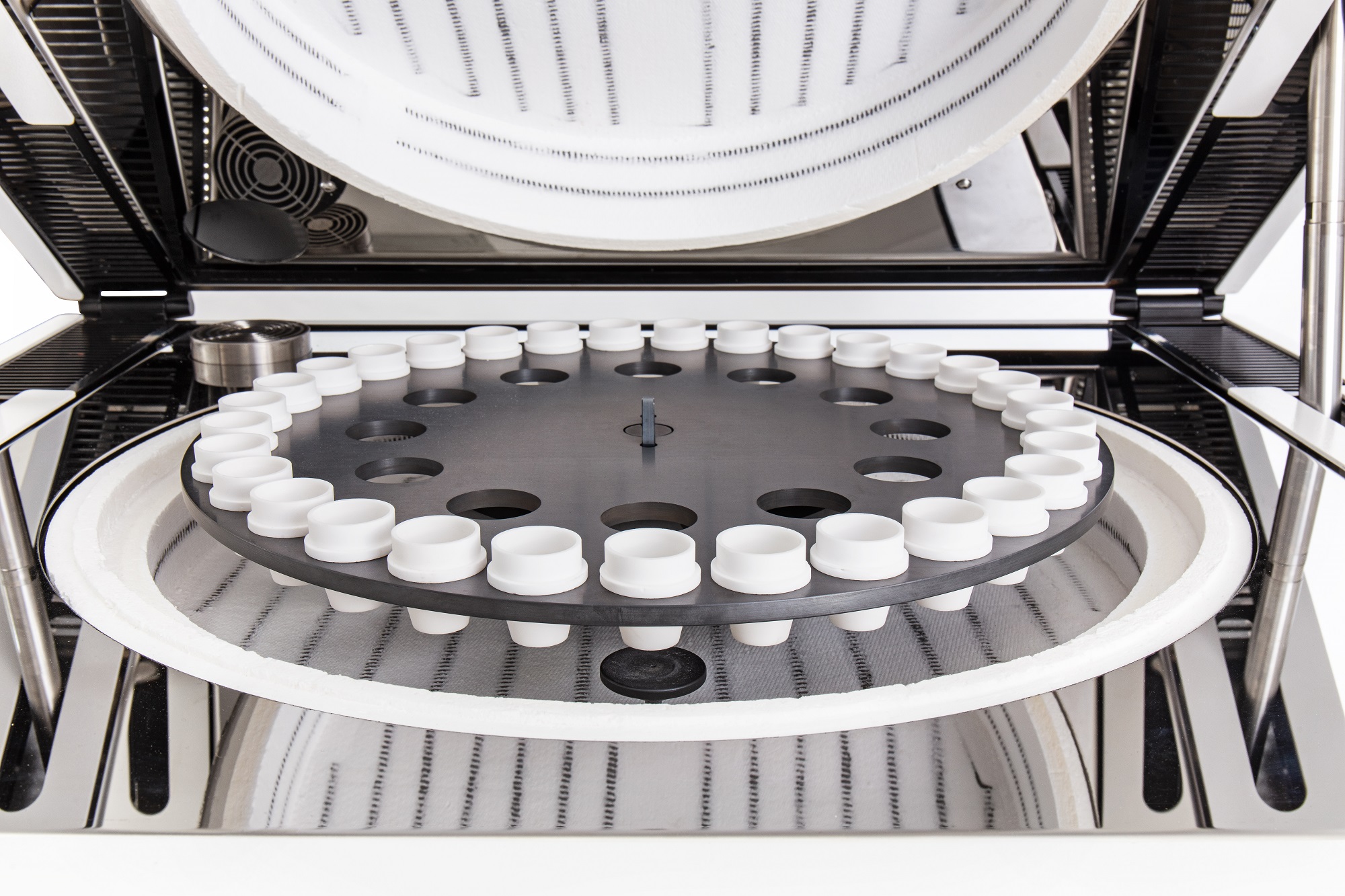

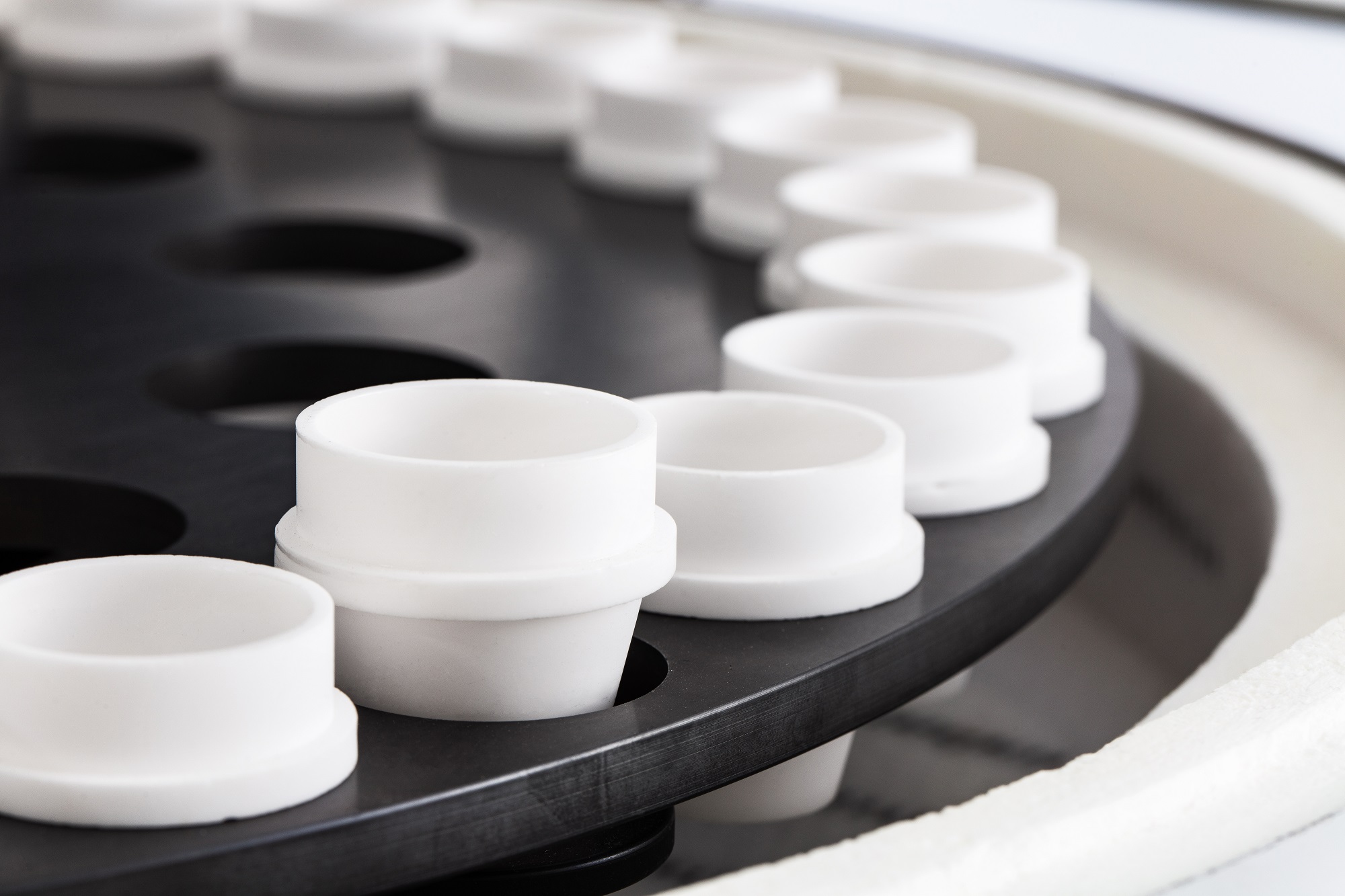

    Large Sample Carousel

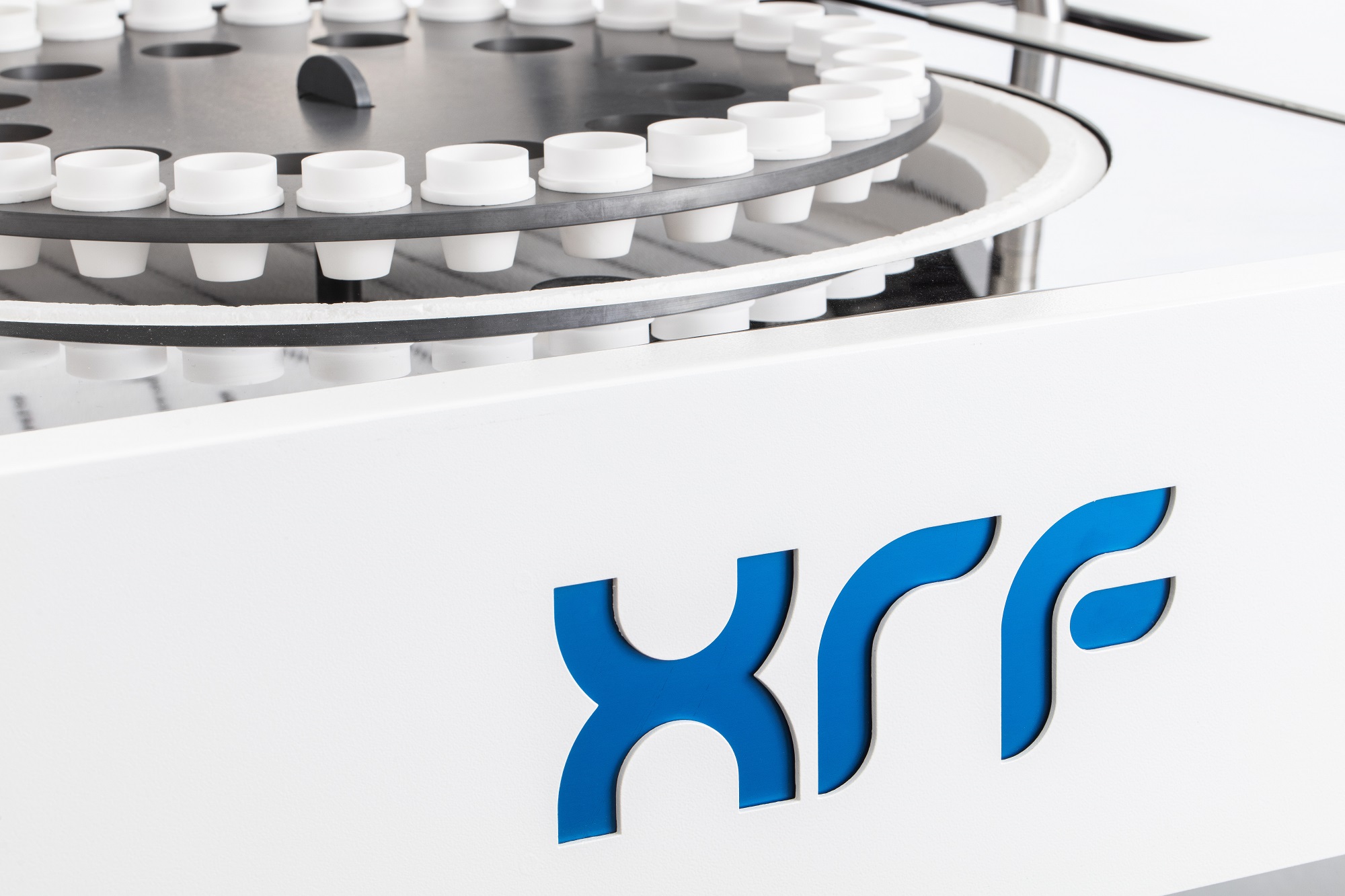

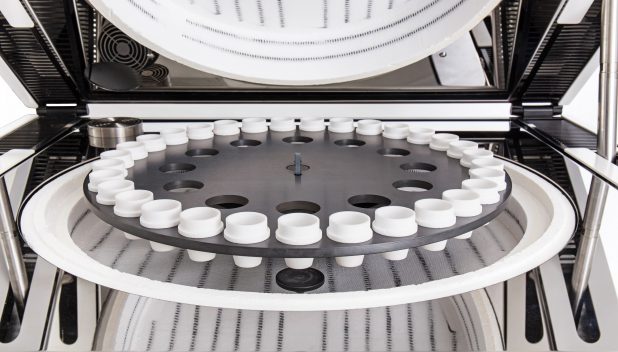

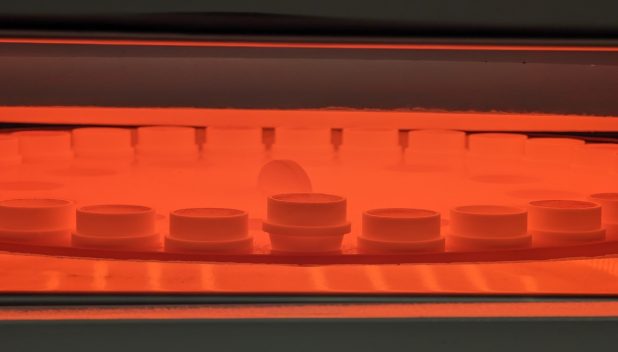

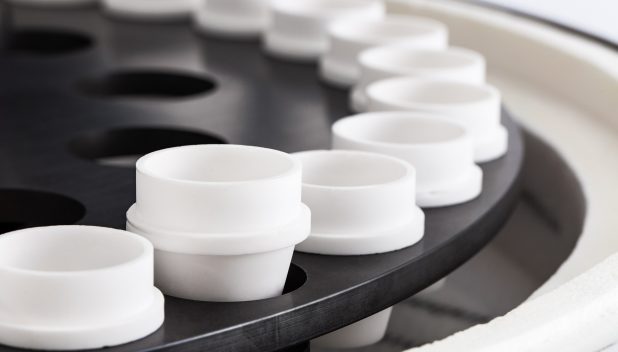

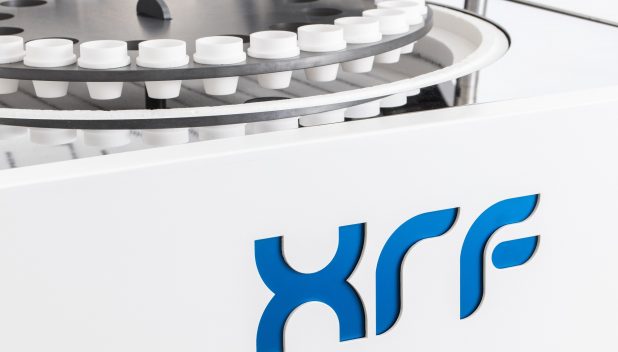

    Our large carousel of 30 sample positions plus 1 reference position allows for high throughput in busy laboratories, whilst maintaining a highly efficient heating chamber.

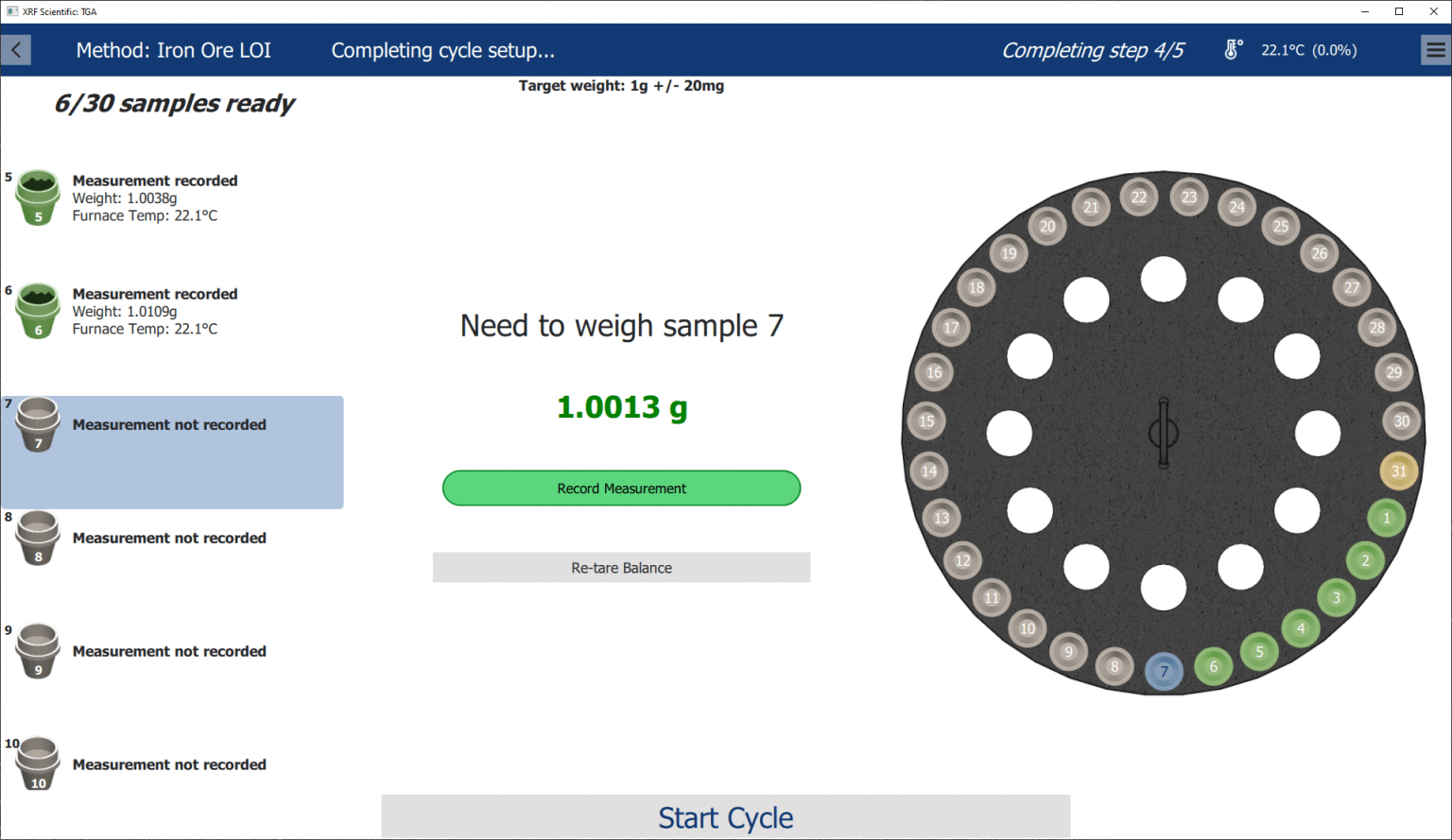

    User Friendly Interface
    Our PC is built into the TGA, which ensures an external unit doesn’t clutter your bench space. A large touch screen interface is fitted, or alternatively plugin in a keyboard and mouse. Results can be accessed remotely for processing.

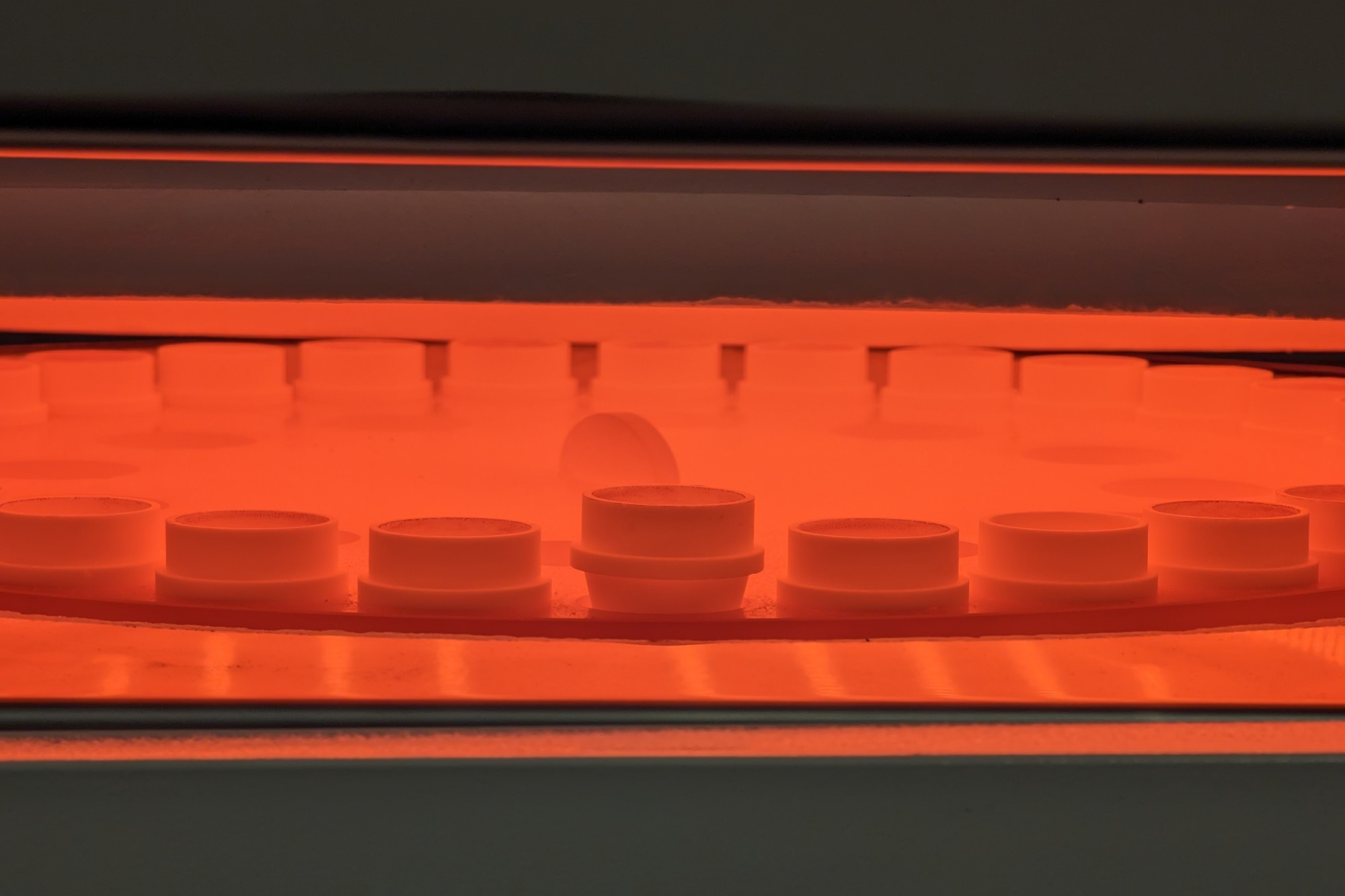

    Fast Heating and Cooling Cycles
    We understand your laboratory processing time is valuable and you want the results fast.  Innovative design features ensure heating and cooling cycle times are quick and accurate, with noticeable improvements over other machines available on the market.

    Atmosphere Control
    Integrated software-controlled gas switching for experiments requiring inert or reactive atmospheres.

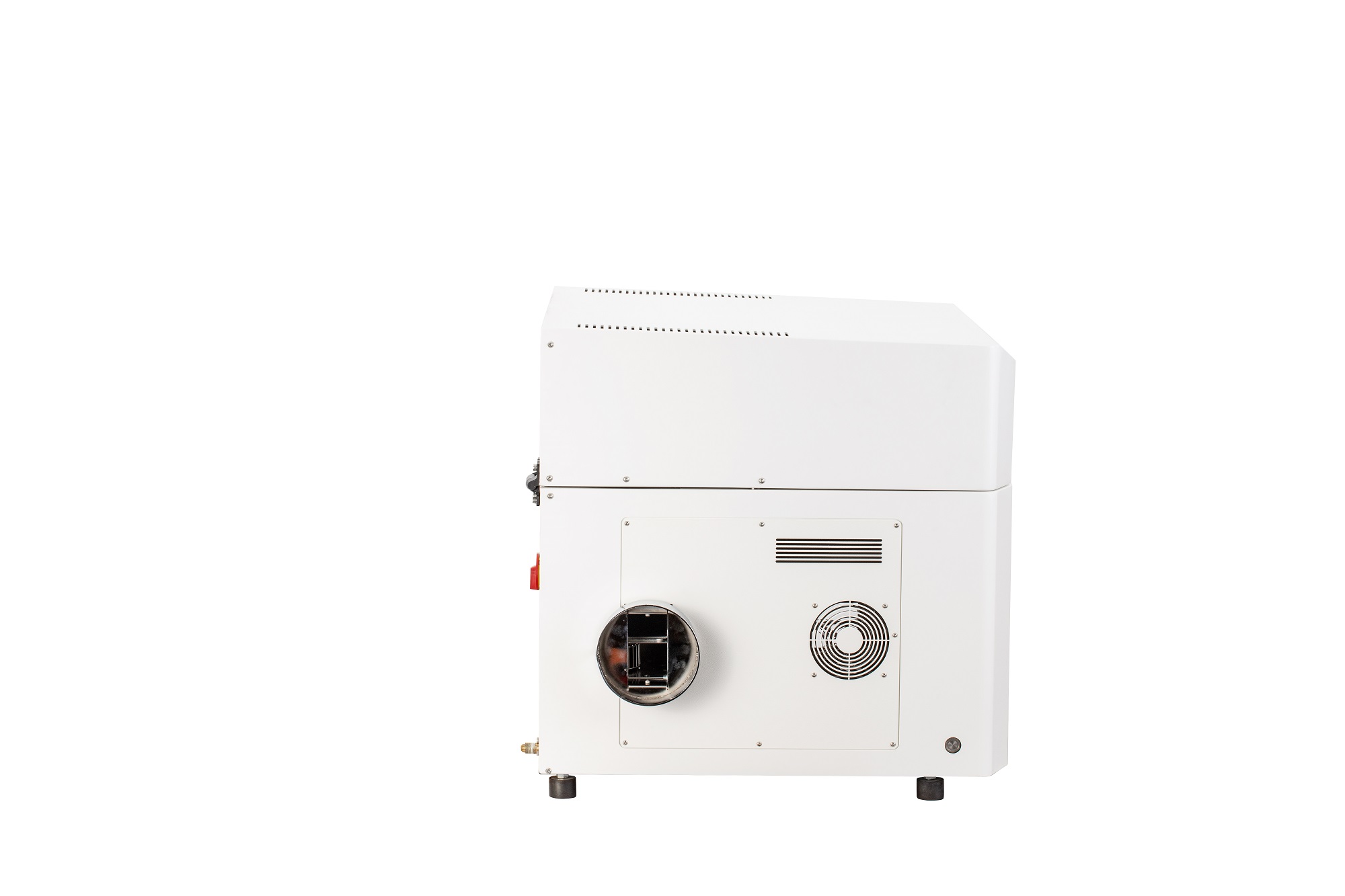

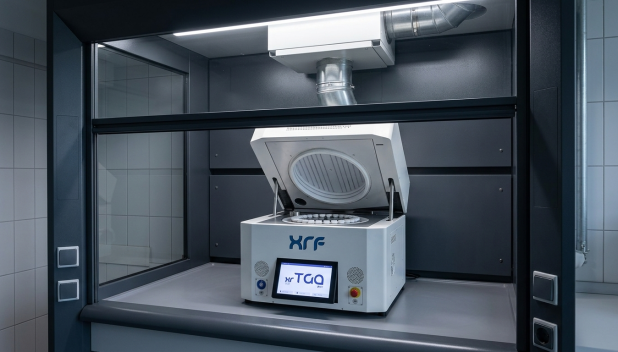

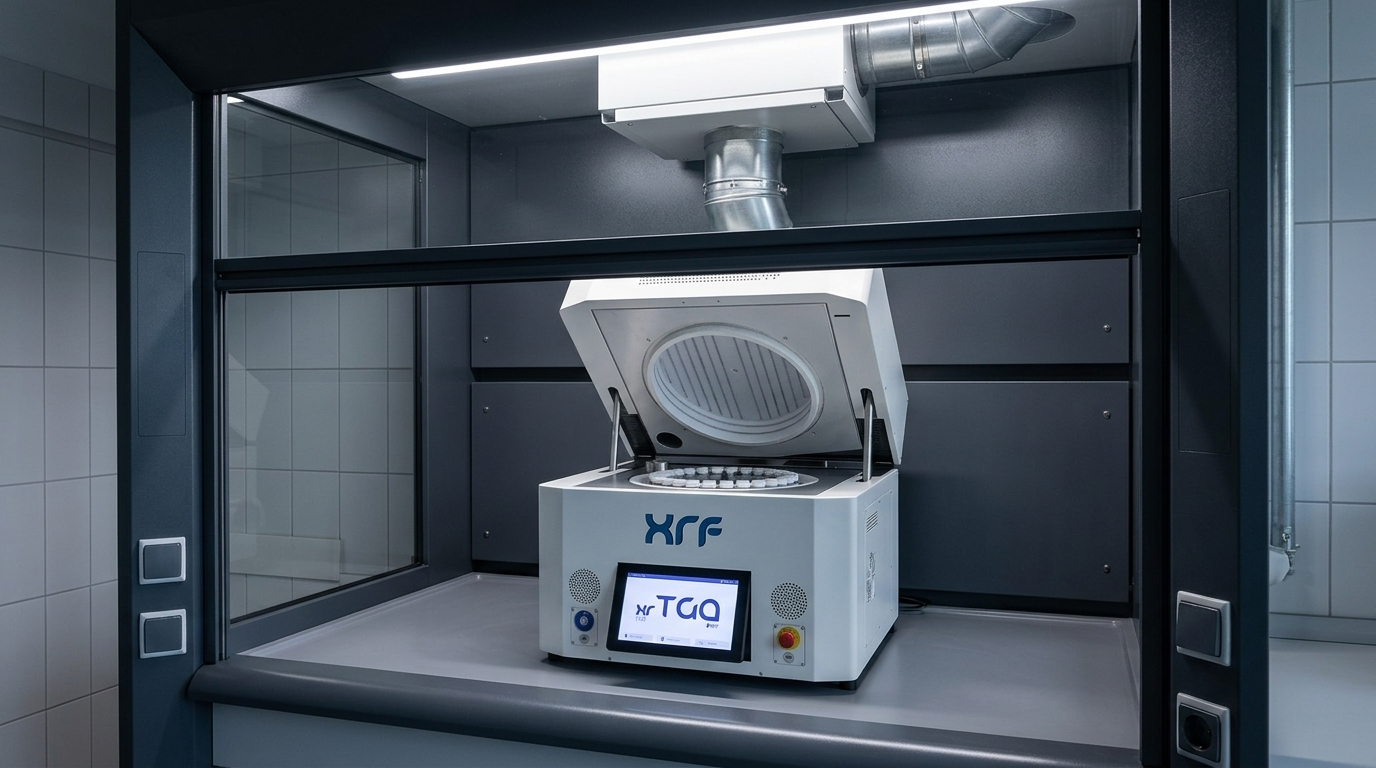

    Integrated Ventilation System

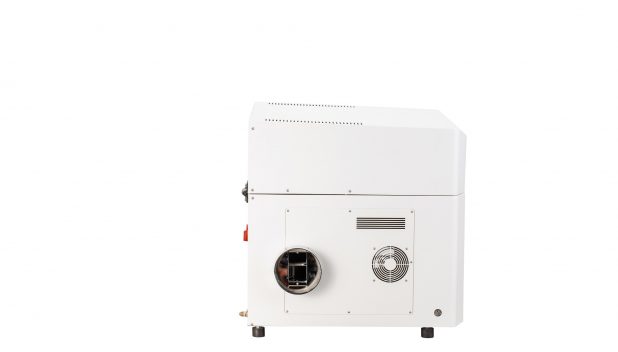

    Active ventilation keeps the laboratory free from toxic vapours/odours and further improves the cooling process.

    Robust and Safe Design

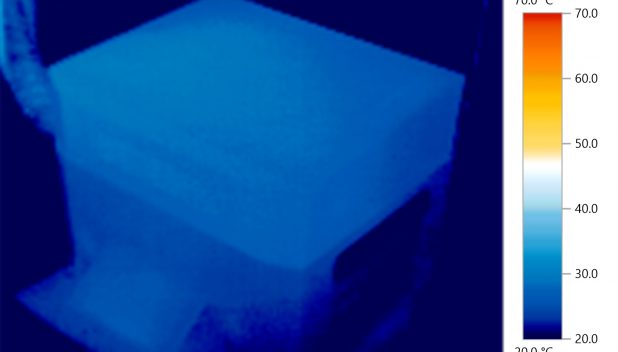

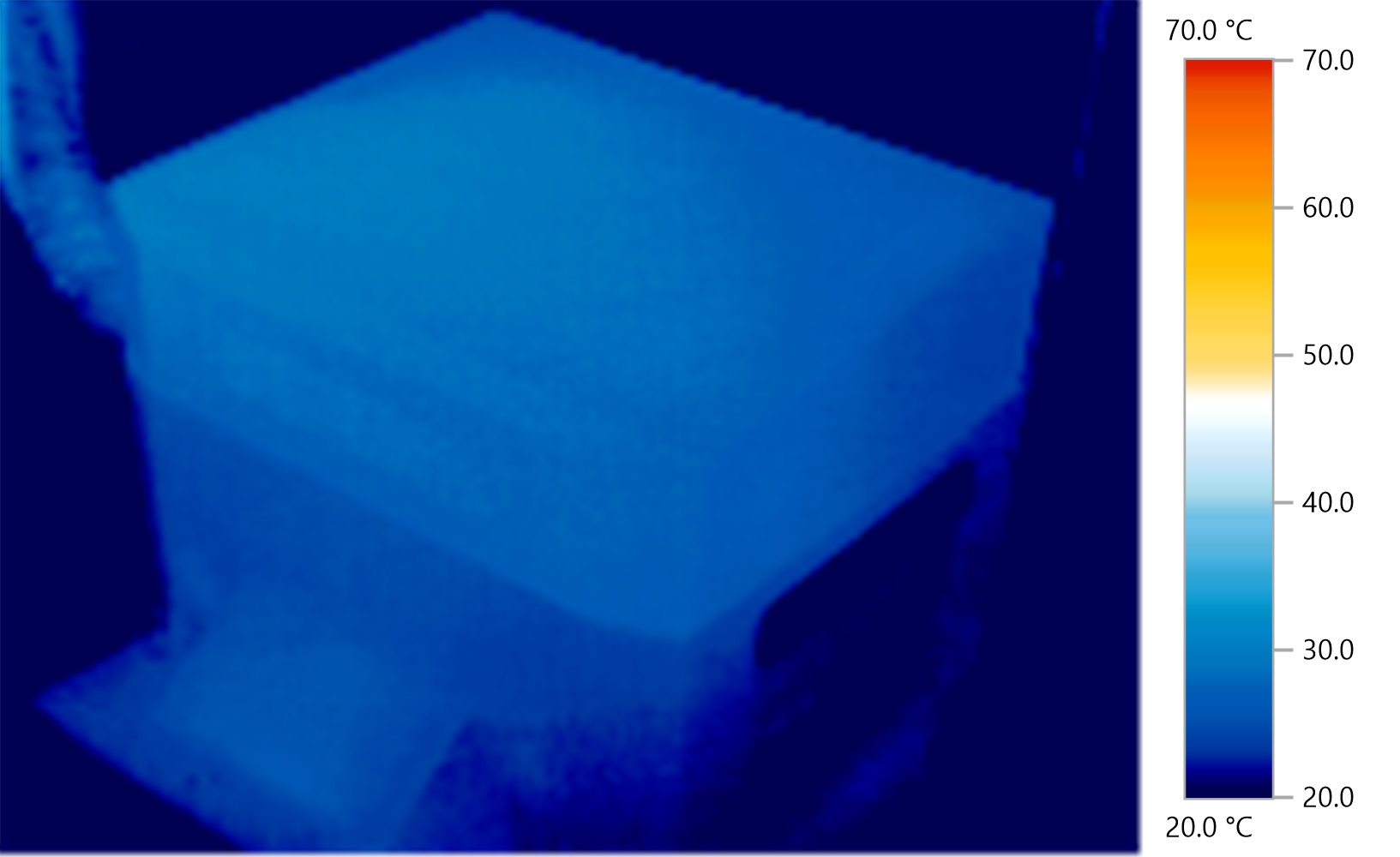

    We have applied decades of knowledge in furnace safety into the TGA. The instrument meets stringent CE standards for external touch temperatures and required safety features. The TGA is built to withstand the harshest laboratory environments, with maximum uptime requirements.

    Application Types

    • Minerals: iron ore mining / steel production, coal, bauxite
    • Food: flours, pasta, chocolate
    • Construction materials: cement, limestone/lime
    • Materials: plastics, alumina, gypsum, agricultural materials, ceramics, pharmaceutical materials

    Complying with Standardised methods

    • Moisture and ash determination in flour – AOAC 925.10 & AOAC 923.03
    • Ash content in thermoplastics – ASTM D5630-94
    • Loss on ignition in solid combustion residues – D7348-08
    • Loss on mass in alumina – AS 2879.1-2000
    • Loss on ignition in cement – ISO 29581-2:2010 / ASTM C 114
    • Moisture and loss on ignition in iron ore – ISO 3087:2011 and ISO/TR 18230:2015
    • Various AOAC, ASTM, ISO and DIN methods
    • And more …

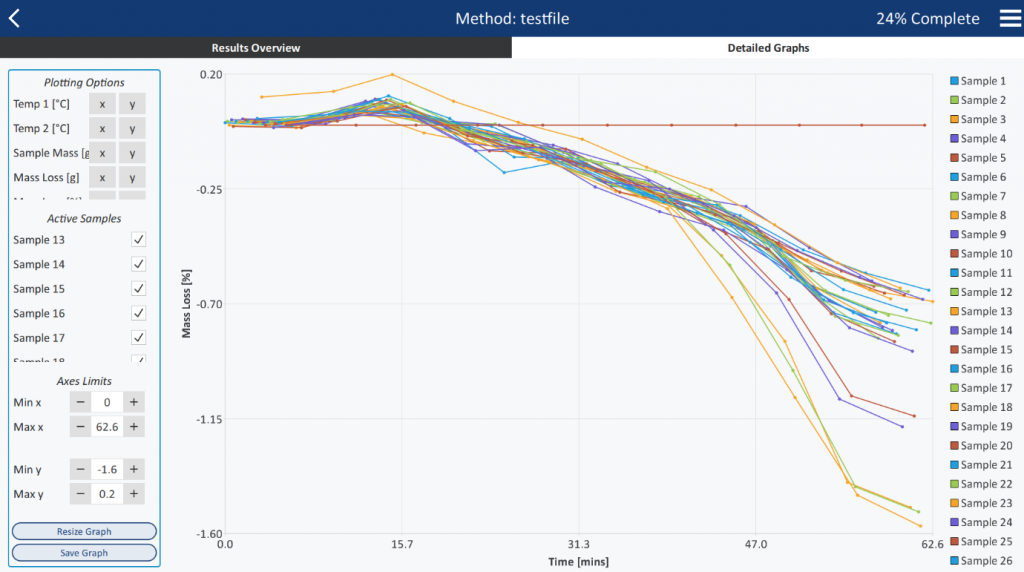

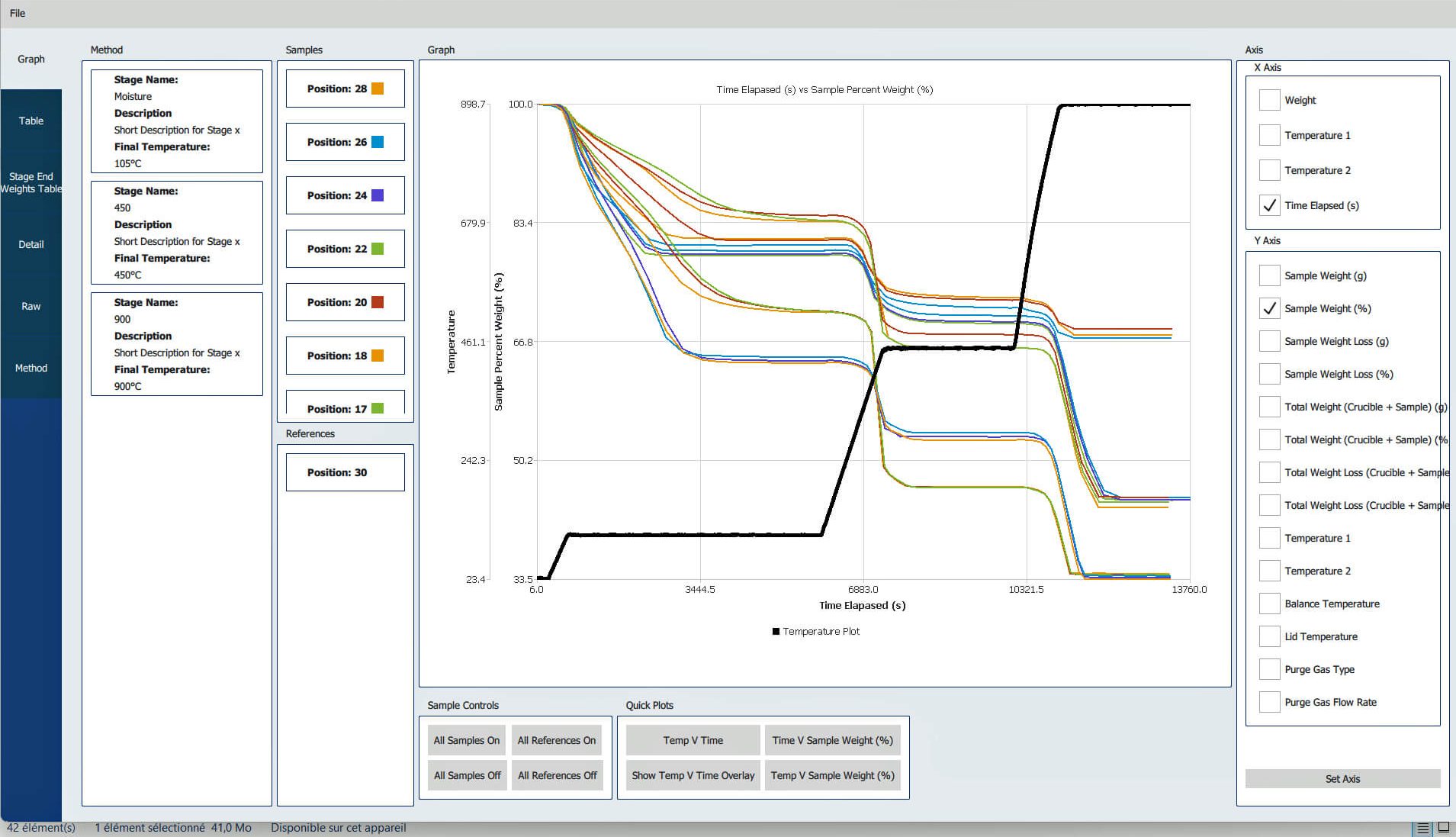

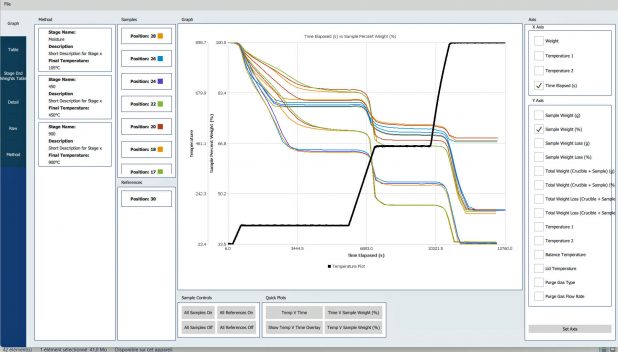

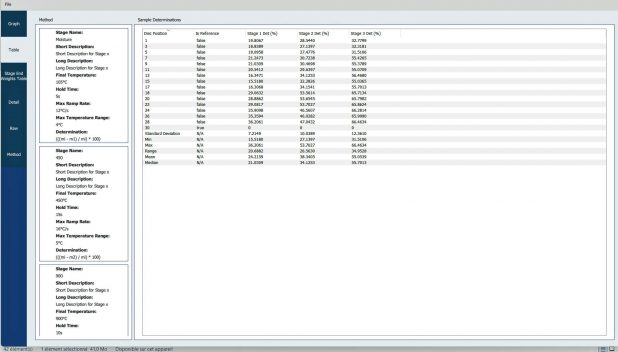

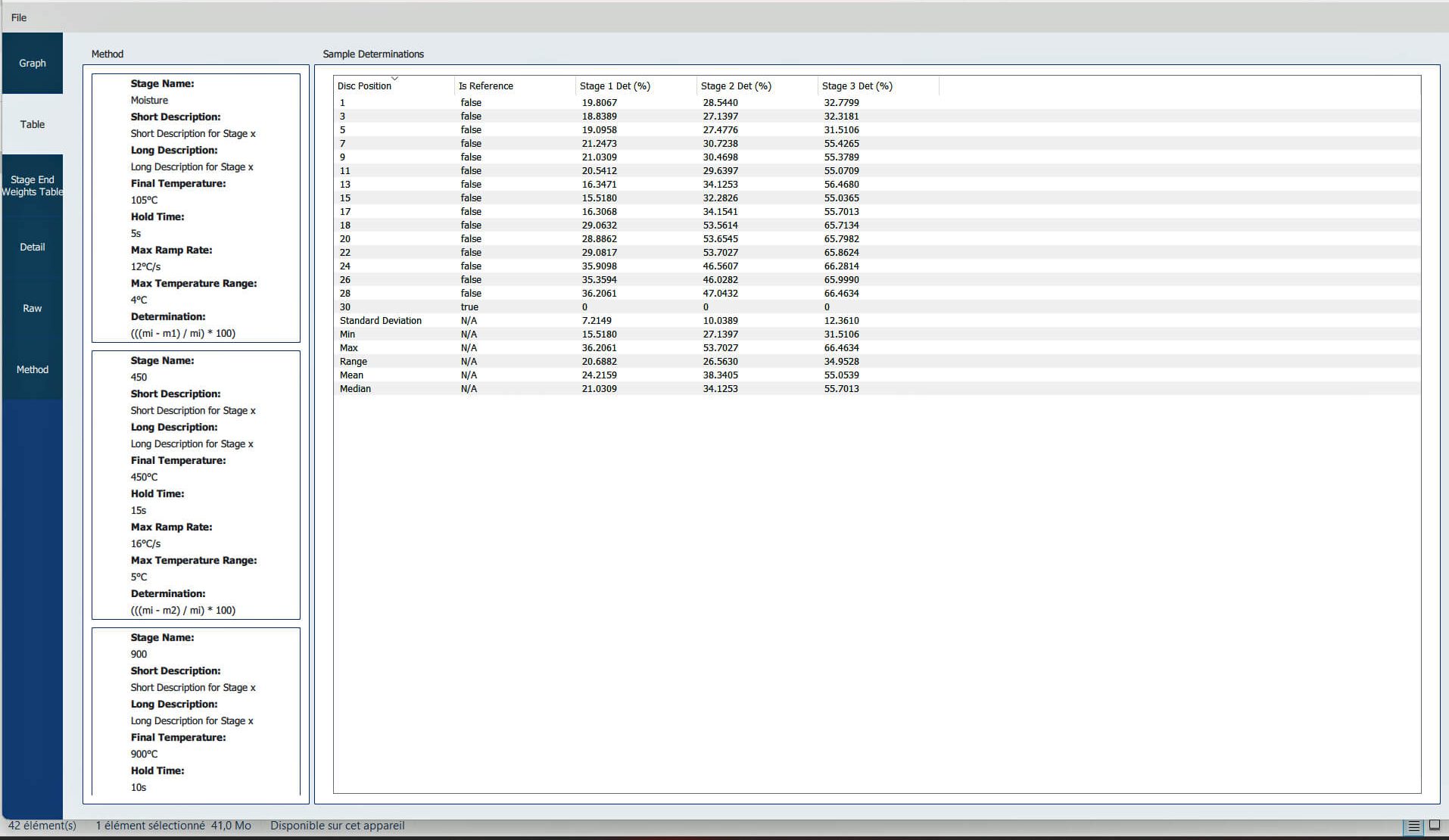

    The xrTGA software include a comprehensive set of relevant tools available for parameter settings, diagnostics, real-time data analysis as well as data processing. Analysis software can be accessed on the instrument directly or via a Windows desktop version. Features of the software include LIMS communication, remote access and convenient data export CSV, XML, Excel®.



    xrTGA1100
    Capacity 30 sample positions plus 1 reference position
    Sample weight capacity 0.1 – 10g
    Weighing precision ± 1%
    Resolution 0.1mg
    Temperature range Room temperature to 1100°C
    Temperature accuracy ±1°C
    Temperature precision ± 1°C at 105°C and ± 2°C at all other ranges
    Heating rate 1°C/min to 55°C/min
    Furnace cooling Forced air and multi-height lid opening for faster cool down
    Gas flow rate 0l/min up to 40l/min
    Power requirements 230 V, 50/60 Hz, max. 32 A
    Dimensions (W x D x H) 850 x 755 x 675mm
    H 1100mm with open lid
    Weight 165kg
    Safety and certification CE marking

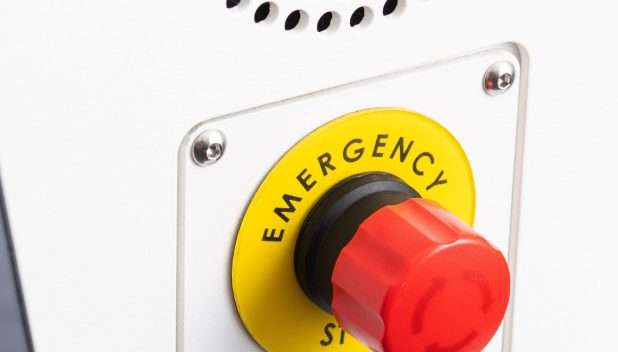

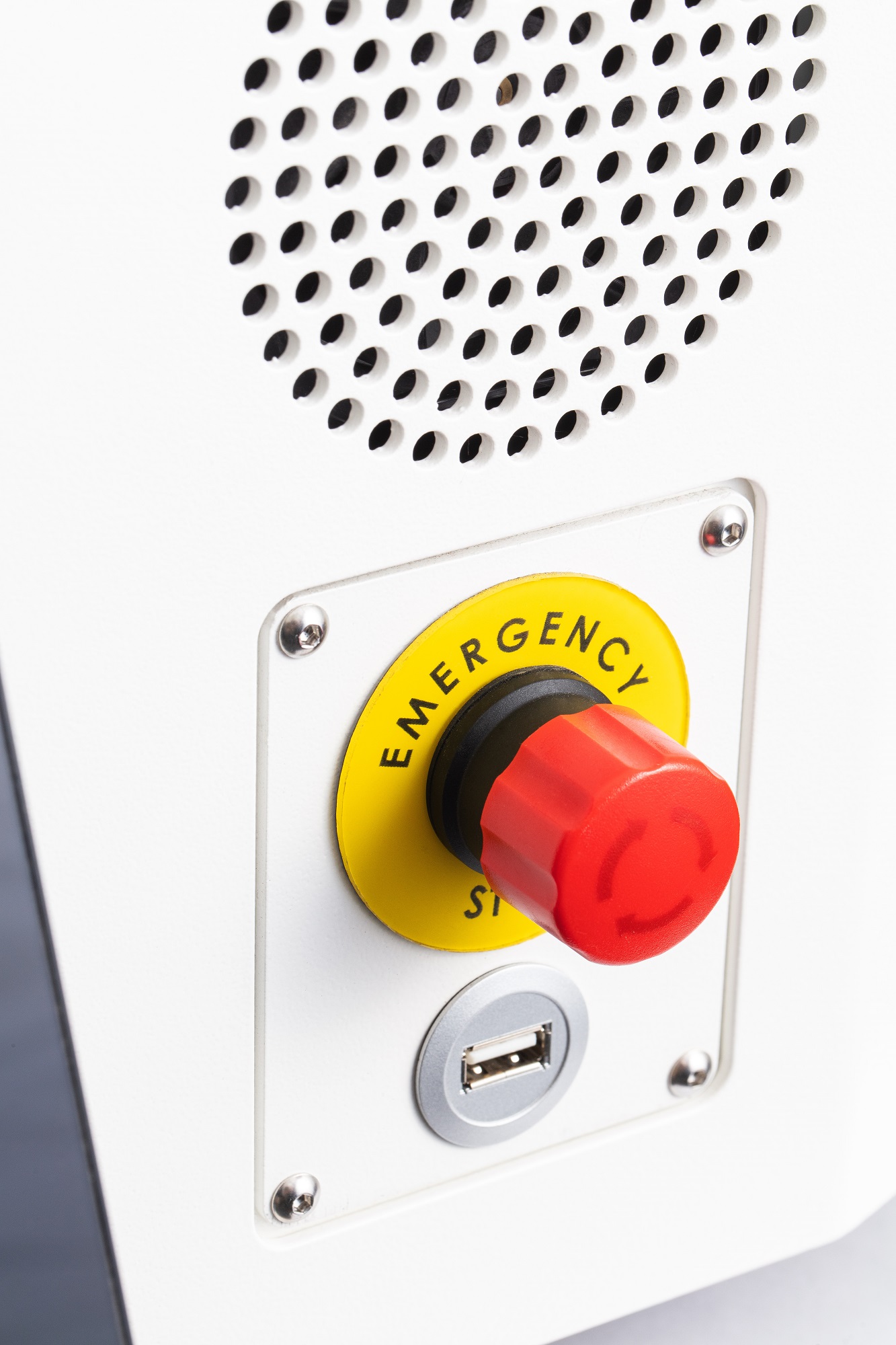

    Operator safety hand switch points for lid closing
    Integrated ventilation system
    Over temperature protection safety circuit

    Accessories for xrTGA 1100 Product Ordering Codes
    Crucible 16ml AI203 5100201
    Lid AI203 to suit Crucible code 5100201 5100202
    Platinum Crucible 15ml, Pt, 15g 5100205
    Platinum Crucible Liner, Pt, 8g 5100206
    Crucible 30 position tray 5100207
    Stainless steel tongs for removing lids 5100208

    xrTGA1100 xrTGA1100 xrTGA1100 xrTGA1100 30 position carousel plus 1 reference position 30 position carousel plus 1 reference position Temperature range up to 1100°C Integrated safety features Cool to touch surfaces xrTGA1100 < 01 of 09 >
