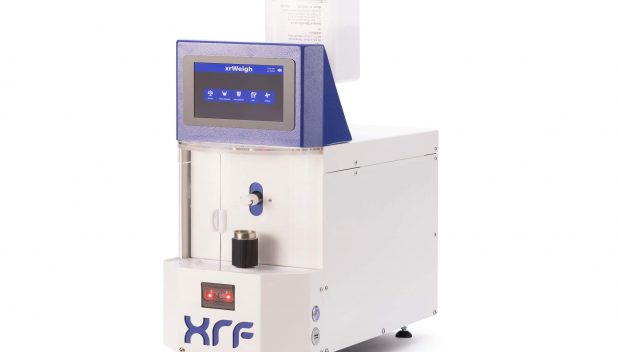

xrWeigh-S-FL
Request a Quote
close

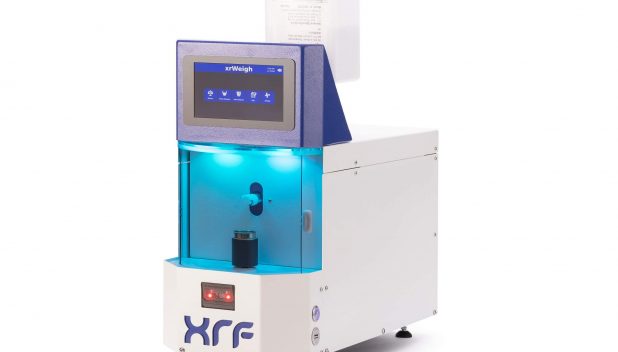

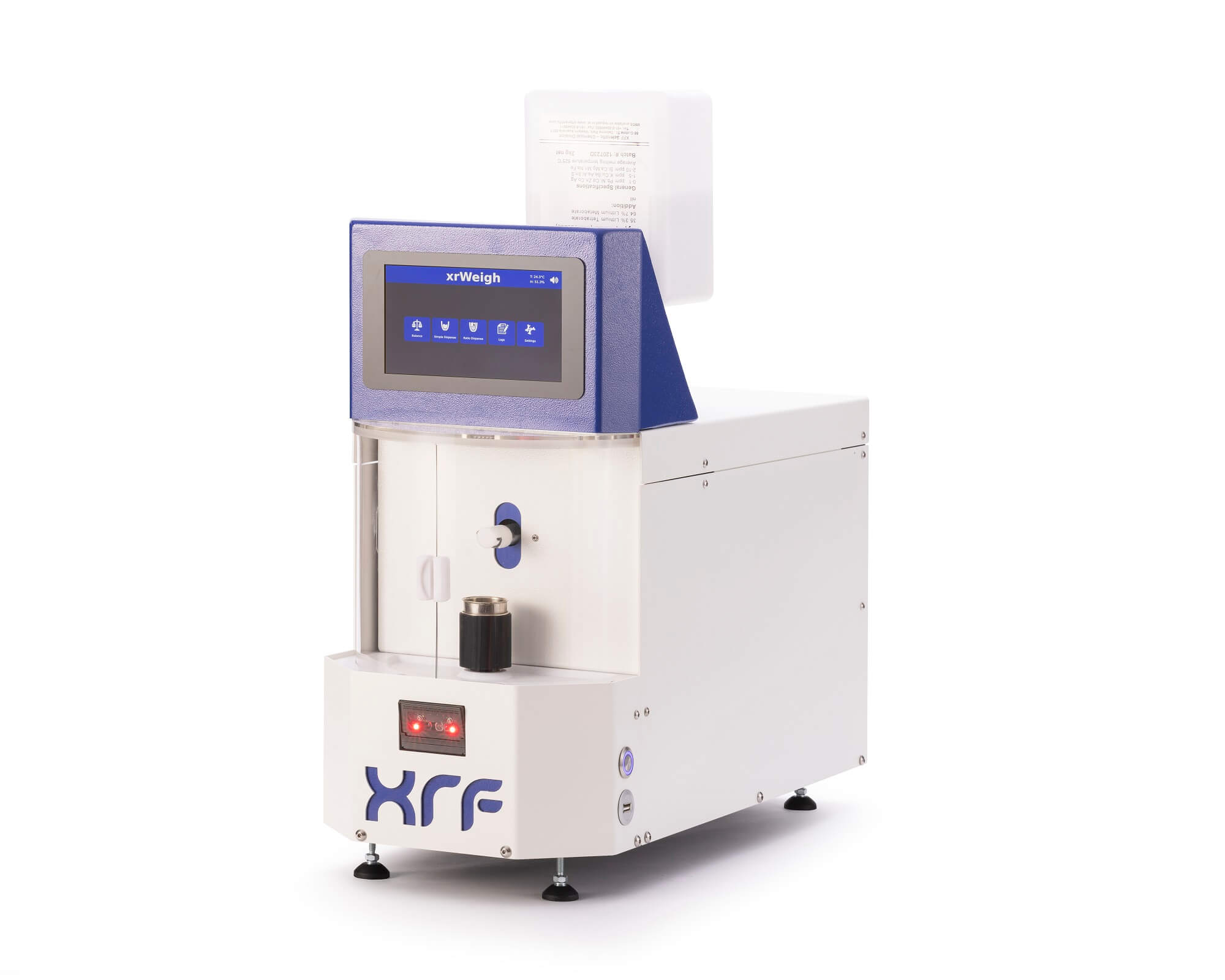

The xrWeigh has been developed for the fast, accurate measurement of flux and other powder based chemicals for precision applications. In a typical laboratory environment, the introduction of the xrWeigh will reduce the time needed for manual weighing by up to 75%. The instrument is simple to use with an easy-to-follow user interface, requiring little or no training. A range of weights and tolerances are configurable and can be optimized for the combination of speed and accuracy for each method.
- Flux loading via XRF flux bottles with anti-spill loading system or a 2kg capacity sealable hopper
- High end precision weighing balance:
- In built stability checking system
- Adjustable load receptor with overload detection
- Internal calibration weight
- Force compensation technology weighing system
- Daily reminder to recalibrate balance

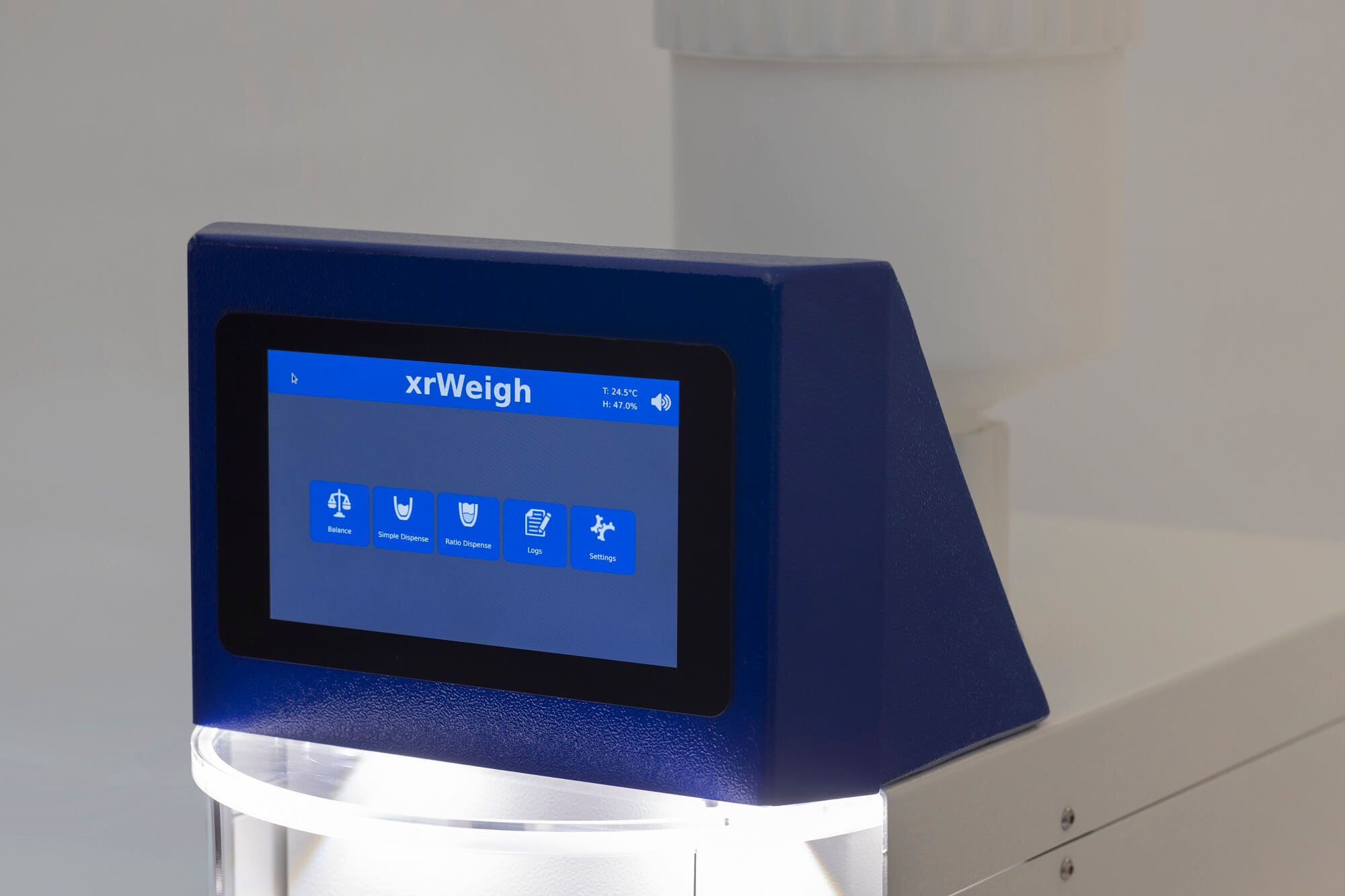

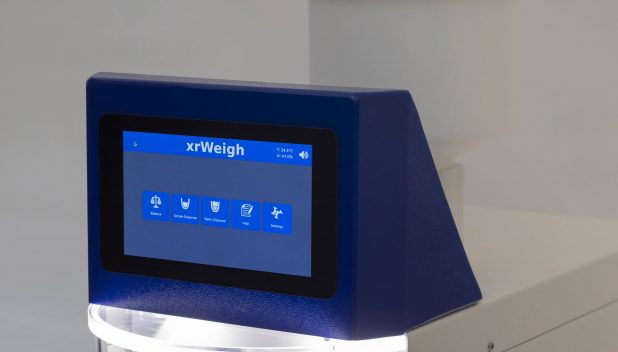

- Simple touch screen operation for selection of target weight and range

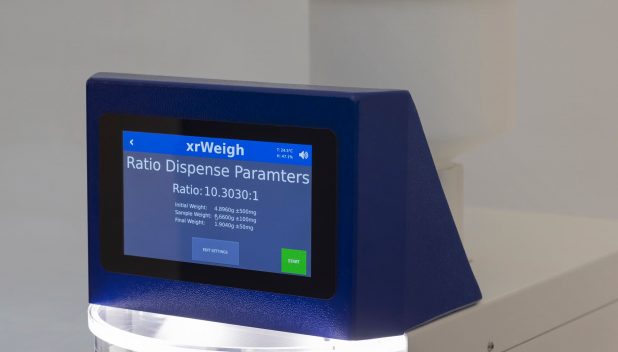

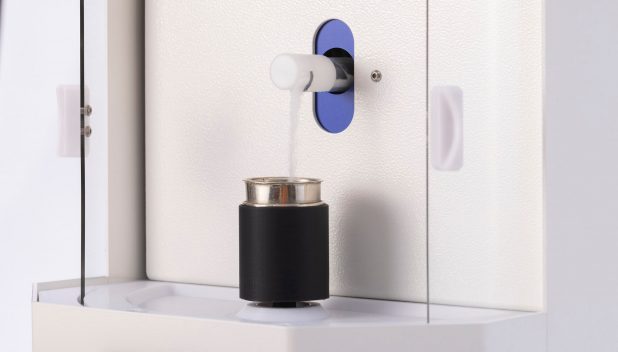

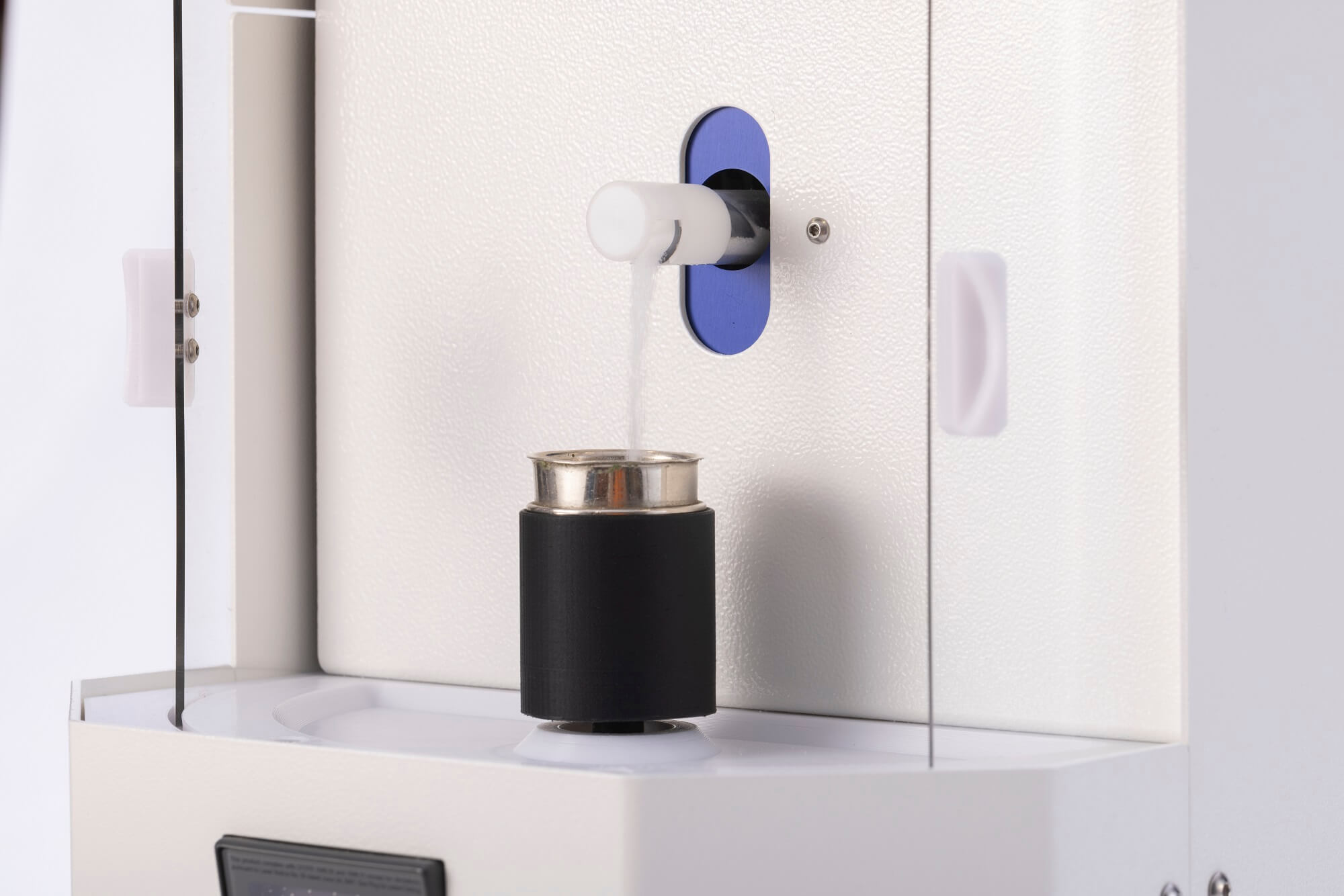

- Dispense either granular or microbeads flux in standard or ratio modes (sample to flux ratio)
- In Range / Out of Range Weight Indication:
- Audible tone (can be disabled)
- Touchscreen indicator

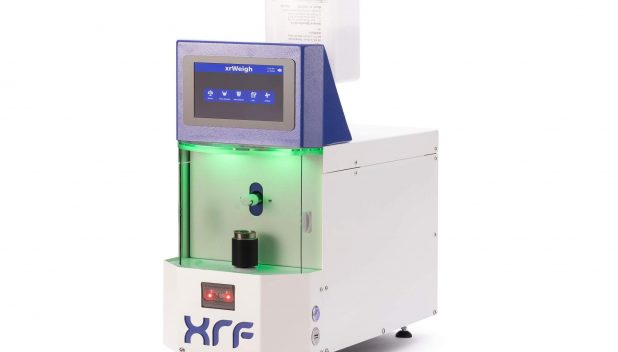

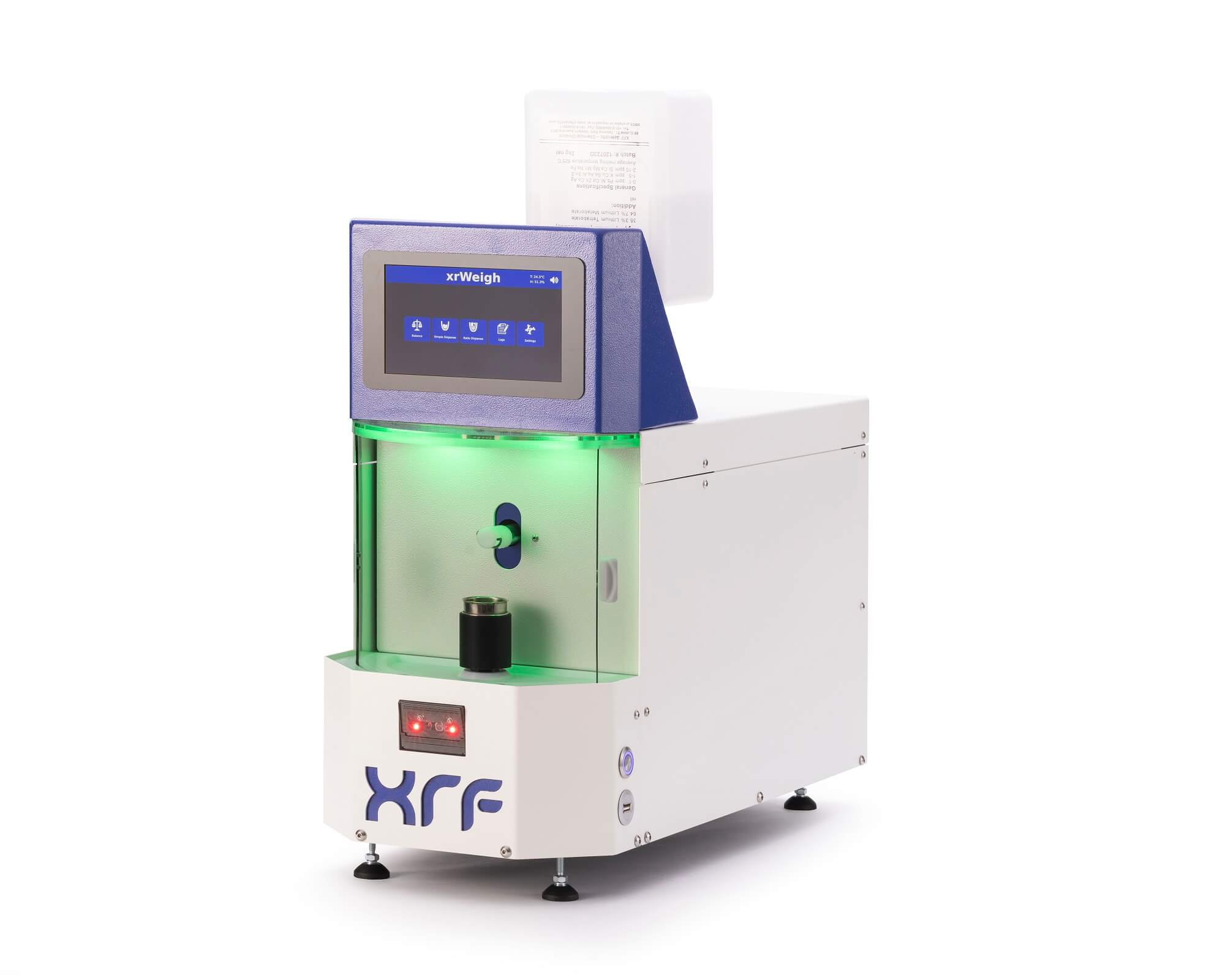

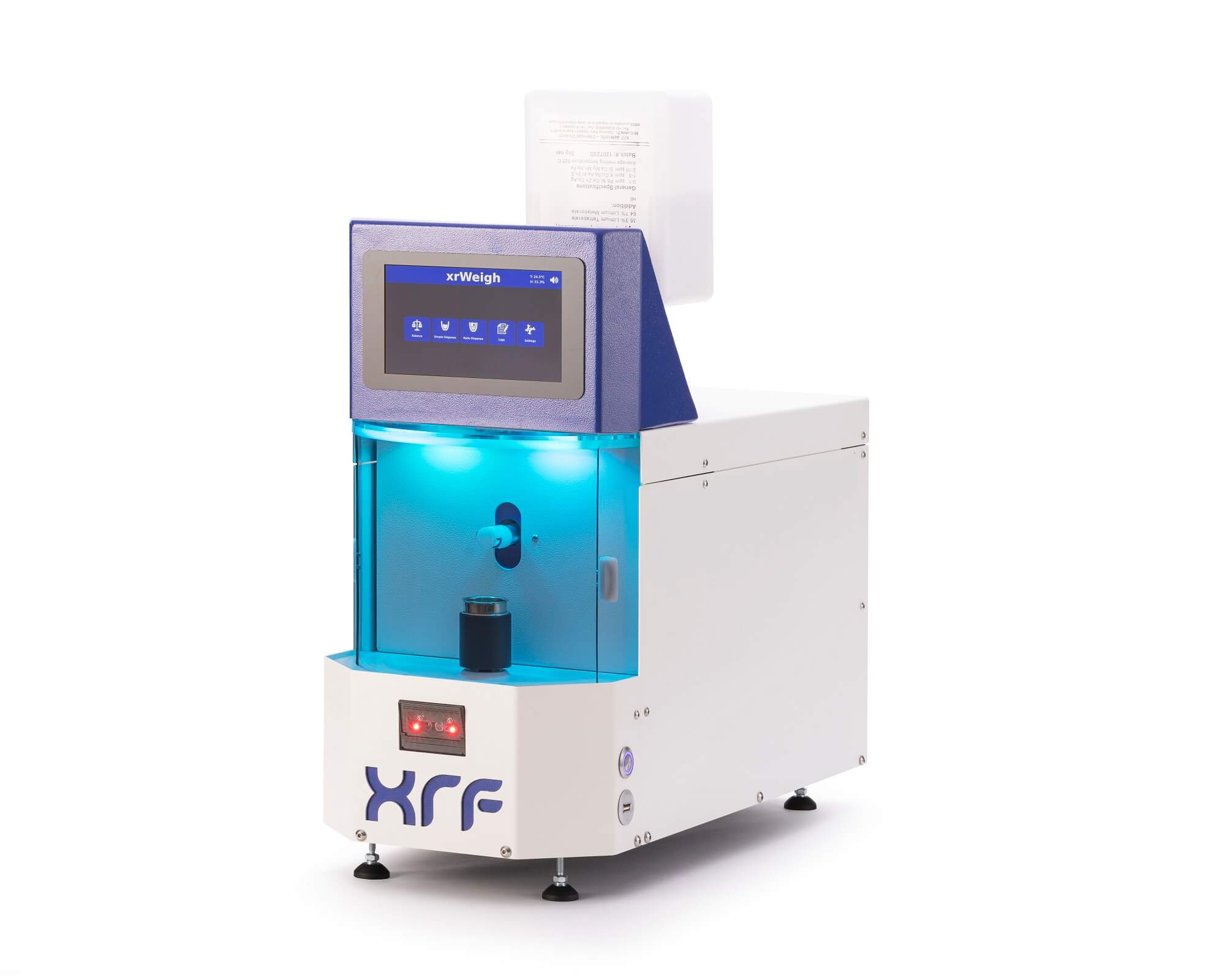

- Dispensing bay illumination indicator

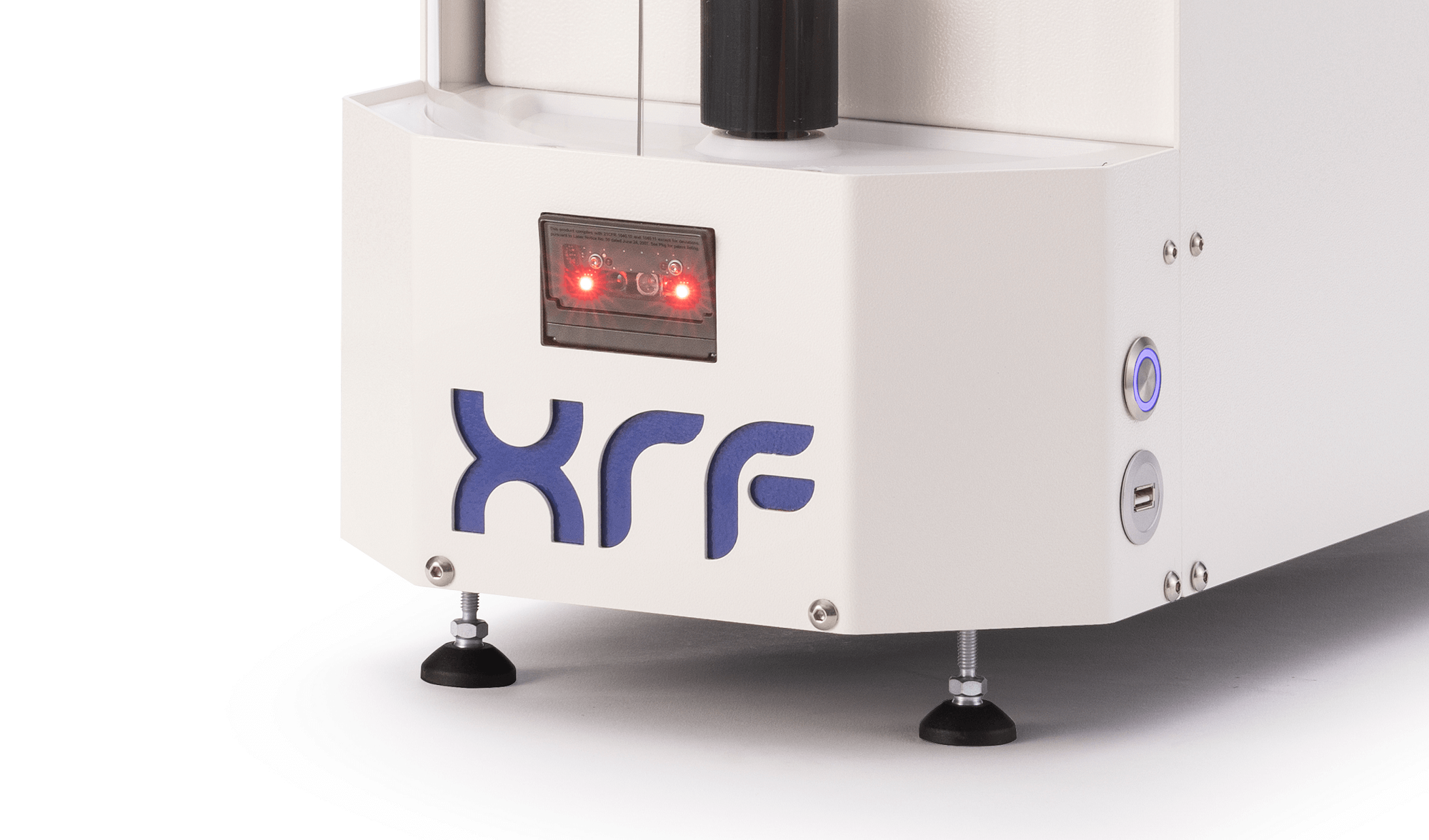

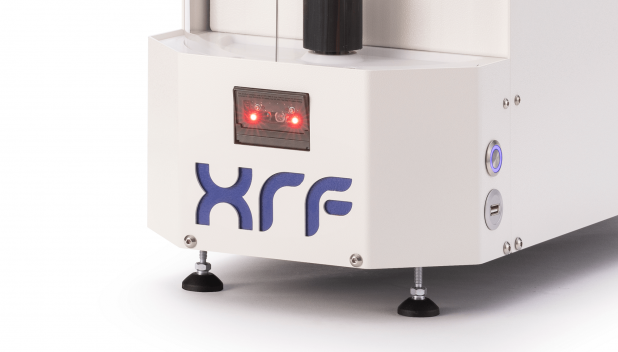

- Built in barcode reader
- Remote access through VNC technology
- LIMS data
| Capacity | 1 vial or 1 crucible |
| Sample weight capacity | 0.1 – 20g |
| Weighing precision | ± 1% |
| Resolution | 0.1mg |
| Balance operating temperature | 5 – 40°C |
| Power requirements | 230 or 115 V, 50/60 Hz, 150W, IEC power inlet |
| Dimensions (W × D × H) – Height with cover opened | 25cm × 60cm × 50cm |
| Weight | 20kg |
