Pressing Consumables

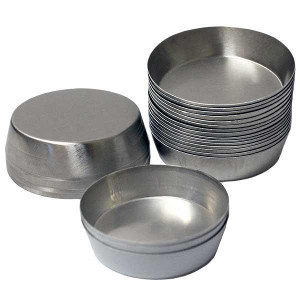

The aluminum cups are used for XRF press pelletizing sample preparation technique.

Key Features

  • Thin wall material ensures minimal back pressure
  • Easy to handle, label and store
  • Adapted to our dies
  • Packaged in convenient box

Product Range

Code Pellet Size Description Package
SO-T32 32mm Tapered Aluminium cups 31.8 x 9mm 1000 pcs/box
SO-T40 40mm Tapered Aluminium cups 39.5 x 9.5mm 500 pcs/box
SO-T40H 40mm Tapered Aluminium cups 39.8 x 9.5mm 500 pcs/box
SO-S32 32mm Straight Wall Aluminium painted cups 1000 pcs/box
SO-S40P 40mm Straight Wall Aluminium painted cups 600 pcs/box
SO-S40HP 40mm Straight Wall Aluminium painted cups 600 pcs/box
SO-S40H 40mm Straight Wall Aluminium cups 39.8 x 7.5mm 500 pcs/box

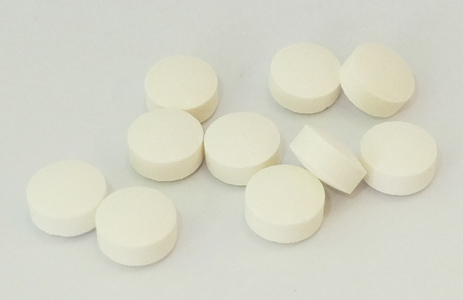

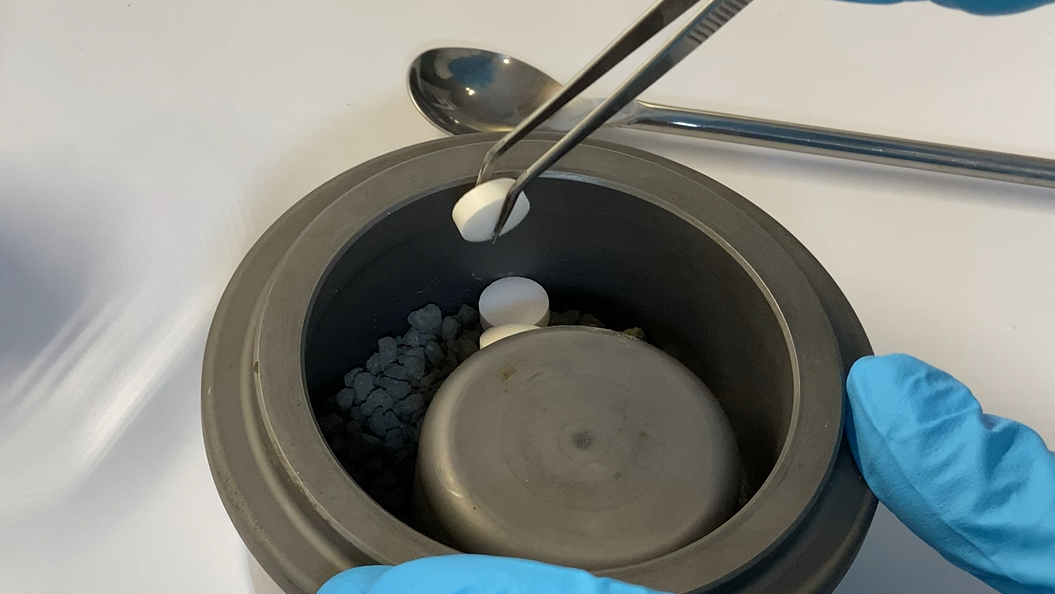

xr-Tab Mix55: Mix Cellulose/Wax

Grinding & binding additive. Can be blended with sample at 5 – 20% by weight. Excellent self-binding properties with adequate grinding abrasiveness during normal grinding cycle.

Item Code: 1016560
Description : xr-tab MIX55 ; MIX Cellulose/Wax; tablets; 330mg
Package: 1.5kg; 4540pcs/bottle

Cellulose: tablets xr-Tab C20 & powder

Grinding & binding additive. Can be blended with sample at 10 – 30% by weight.
Good self-binding properties with adequate grinding abrasiveness during high grinding cycle.

Item Code: SO-press002
Description: Cellulose powder
Package: 0.8kg

Item Code: 1016550
Description: xr-tab C20 tablets; 330mg
Package: 1.5kg 4540pcs/bottle

Licowax

UNIVERSAL – binding additive. Can be blended with sample at 10 – 25% by weight. Excellent self-binding properties.

Code Description Package
SO-press004 Licowax® C micropowder 0.75kg
SO-press0041 Licowax® C micropowder 5kg
SO-press0042 Licowax® C micropowder 20kg

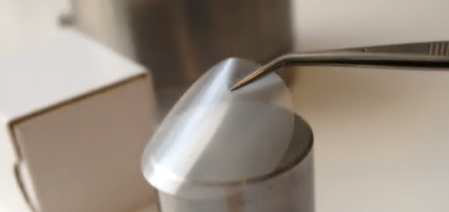

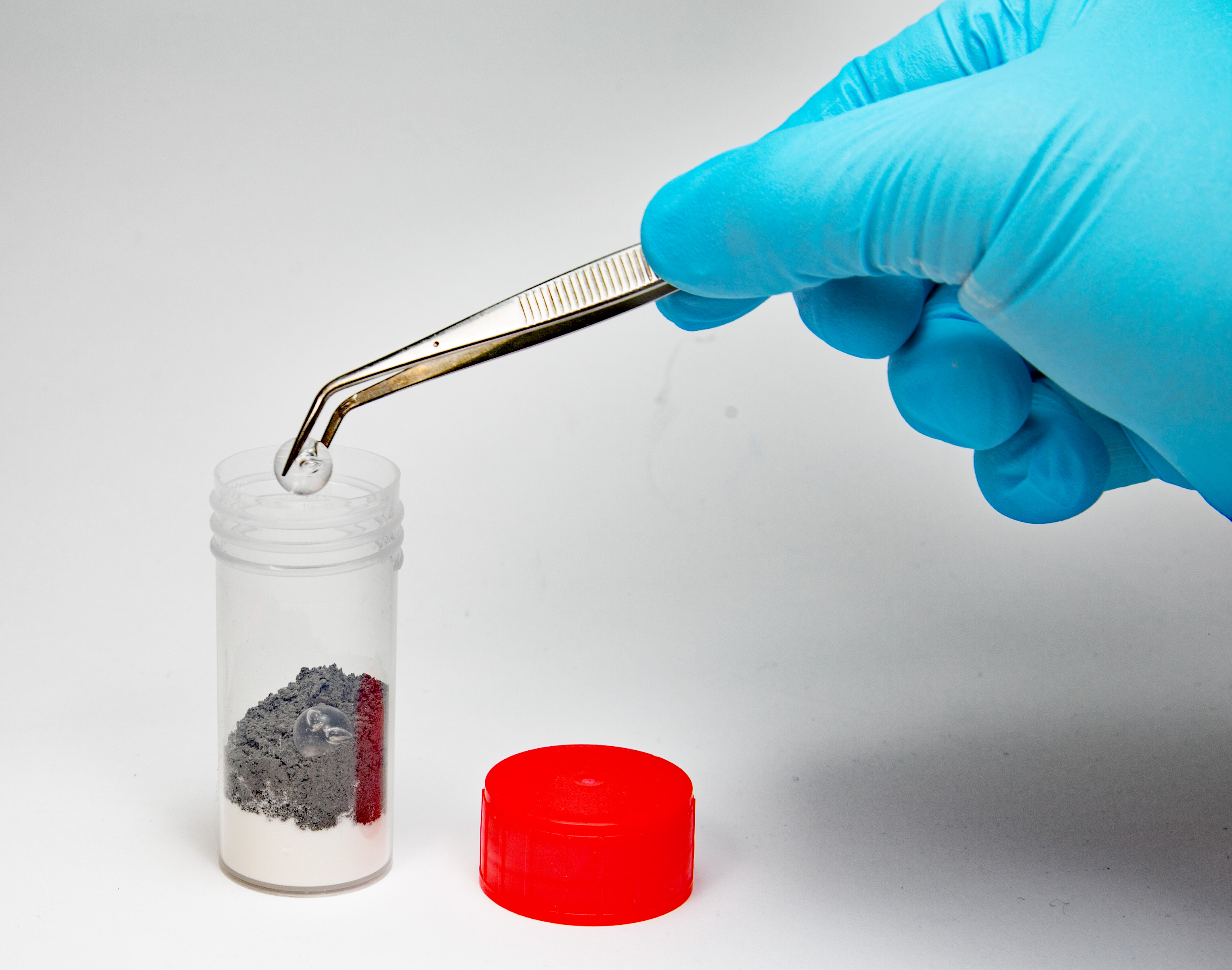

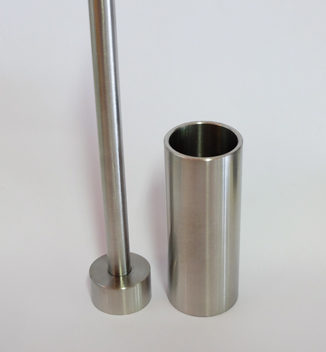

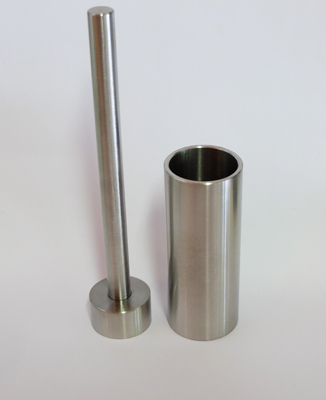

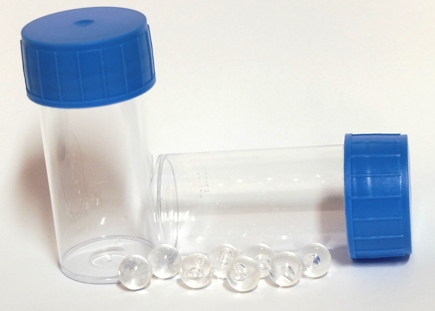

Aluminium Cups Binding & Grinding Additives Filling Tool Die Protective Films Mixing Vials Mixing Vials Binding & Grinding Additives Aluminium Cups < 01 of 07 >
