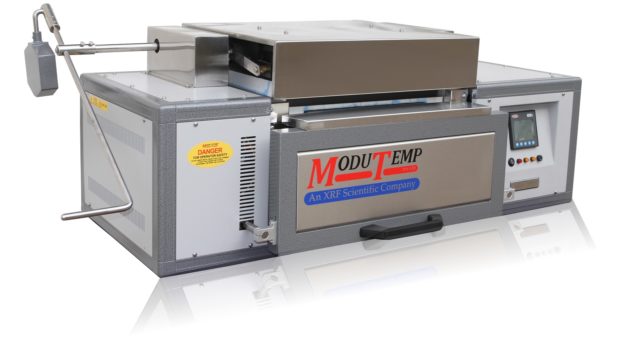

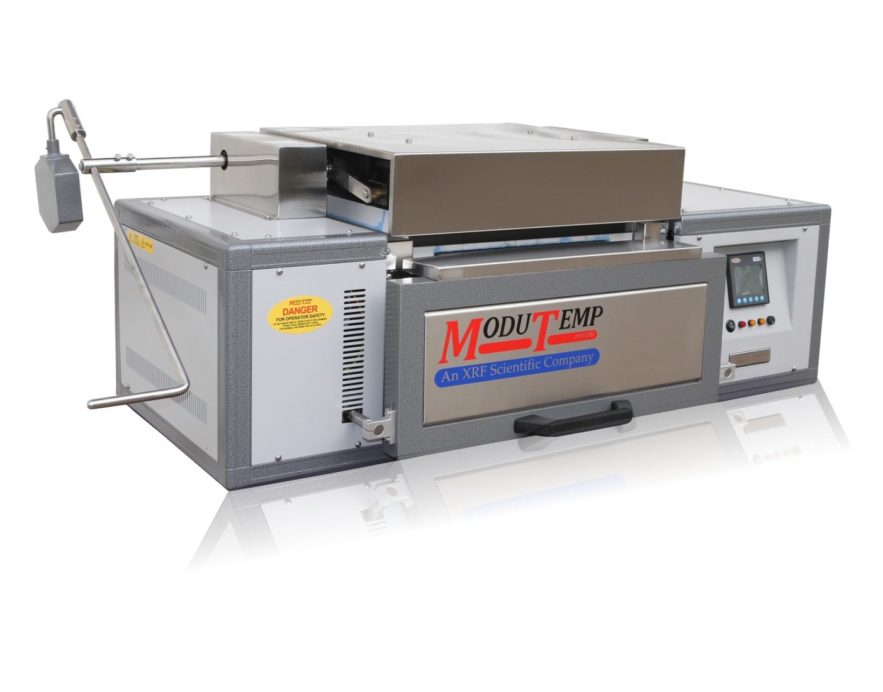

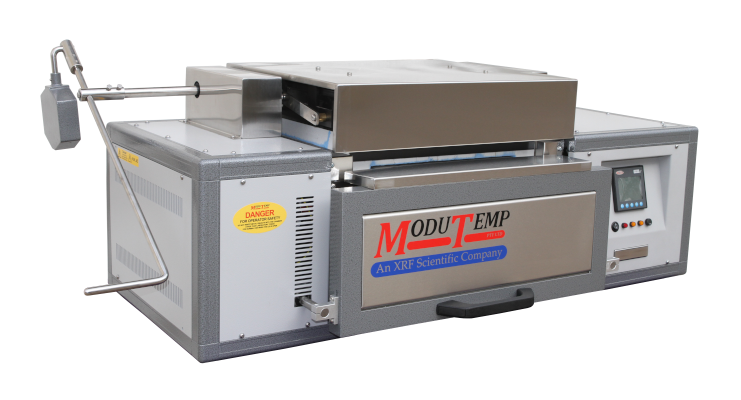

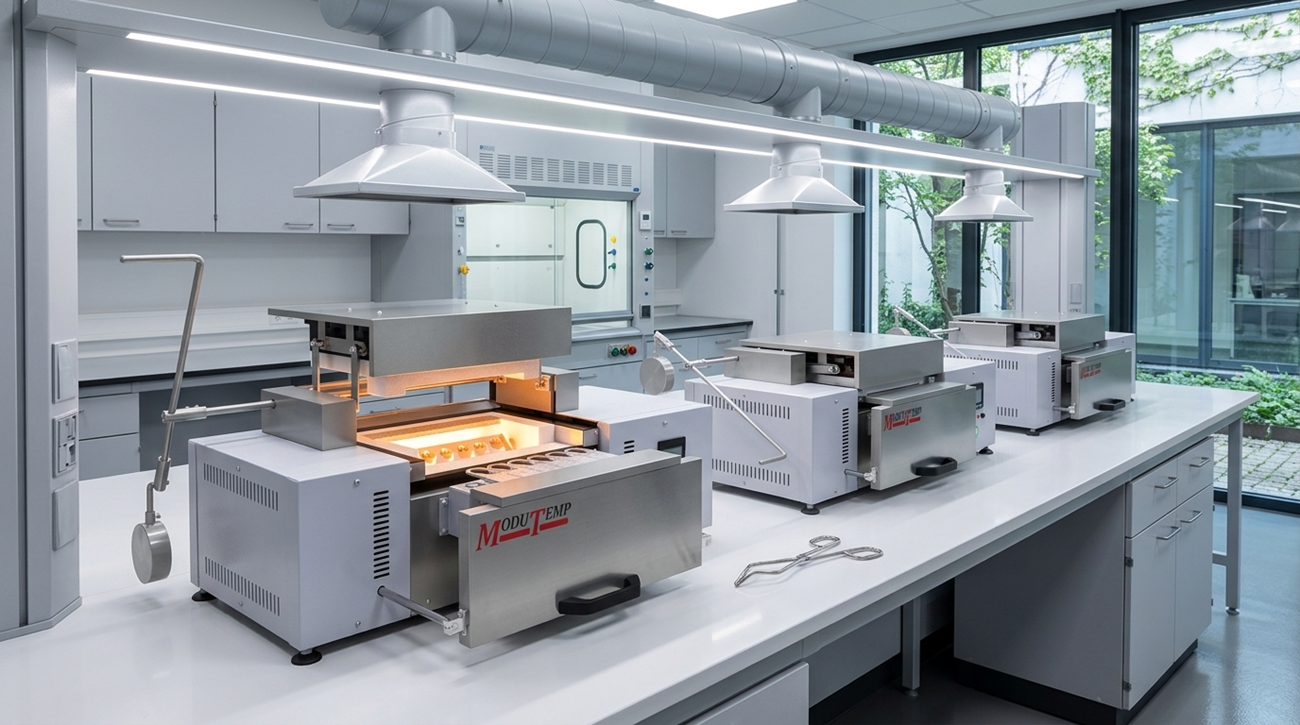

Modutemp Shaking Fusion Furnace

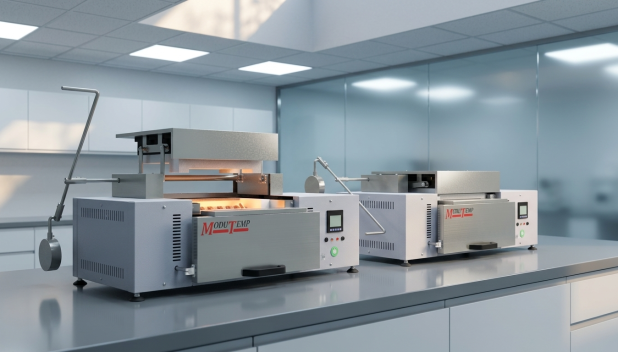

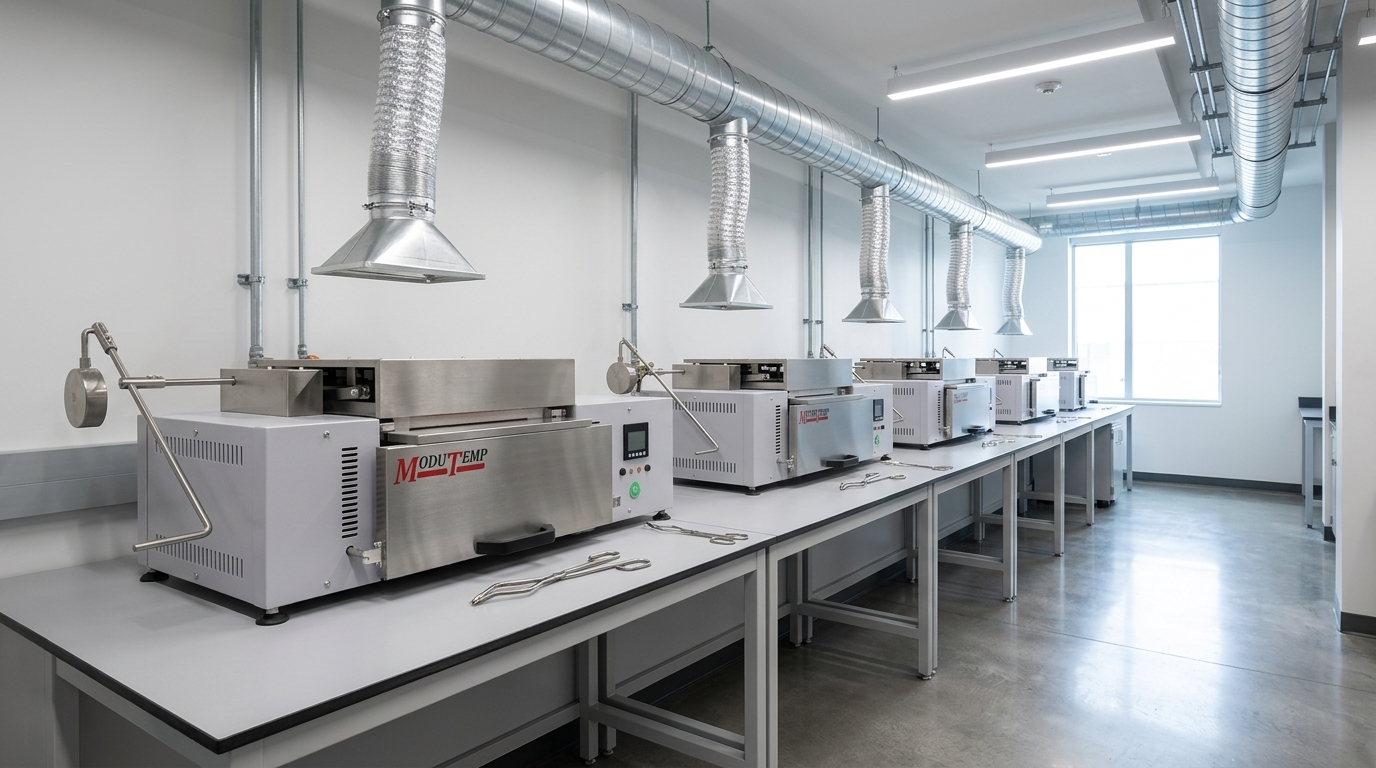

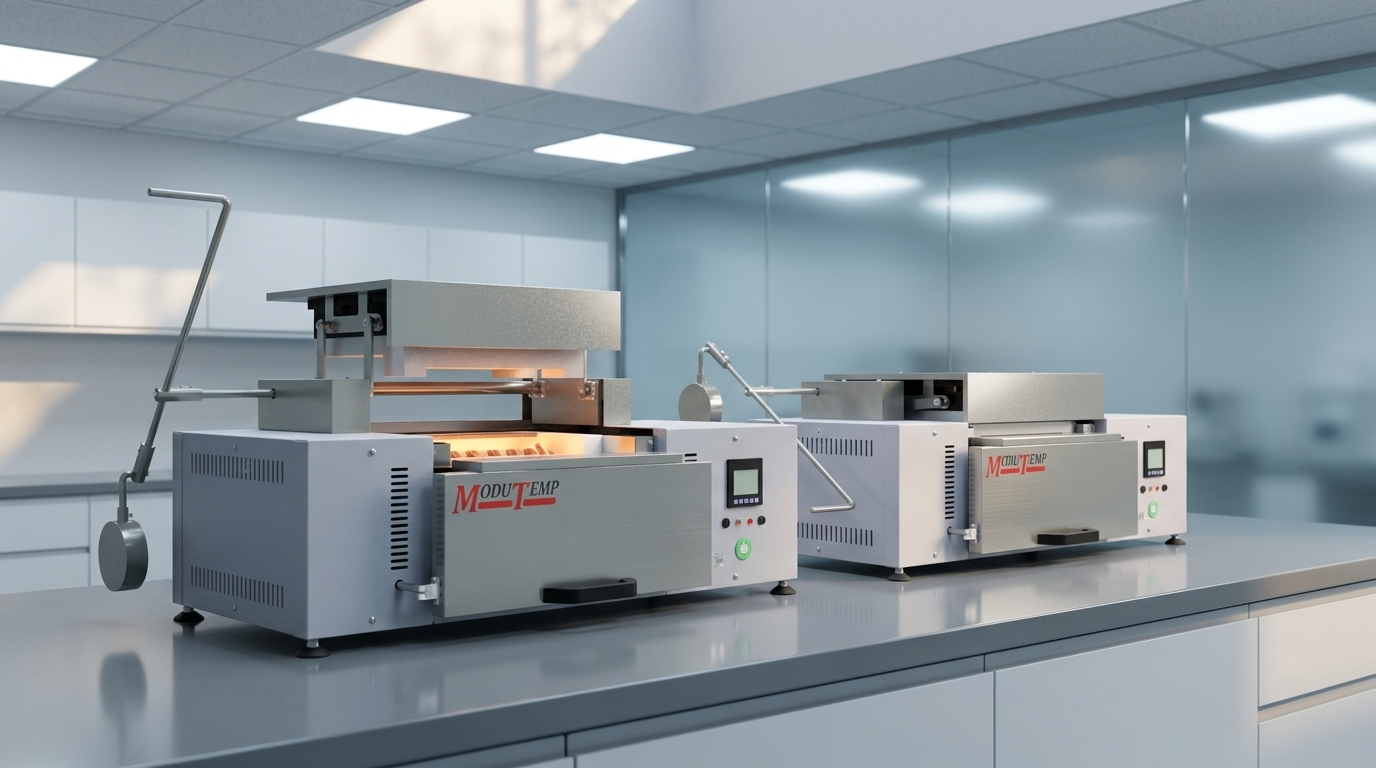

For high volume bead-making requirements, XRF Scientific’s six-place, electric fusion machine offers solid reliability with ease of installation and operation. These machines are capable of producing up to 30 fused beads per hour, per machine, with all functions accurately controlled and timed. Many laboratories have found that one operator can easily run two of these units simultaneously.

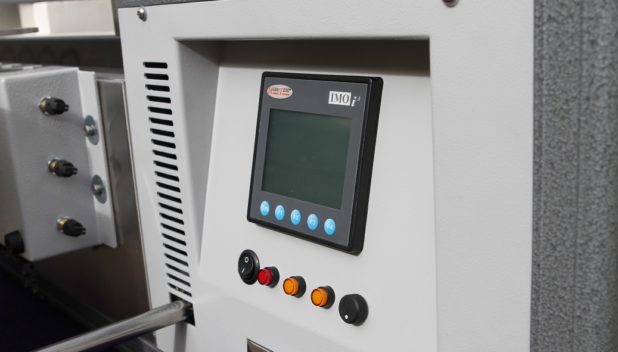

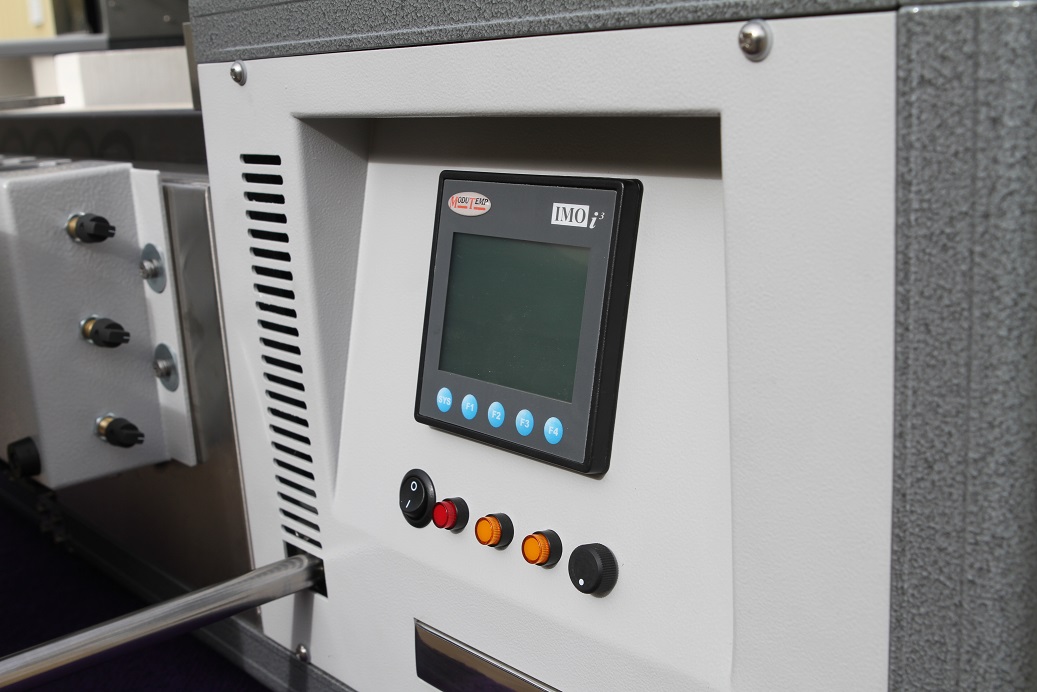

The Modutemp Shaking-Fusion furnace represents a significant development for the rapid and high-volume production of quality XRF beads. Electric heating with all solid state controls provides a clean, safe unit with low operating costs. Automated fusion control ensures that the fusion process is precisely repeatable.

Maximum Temperature (Continuous) 1250 degrees Celsius
Throughput Up to 30 beads per hour
Power 6KW
Size HxWxD 475*1100*500mm
Weight 95kg
Options Full ceramic zero contamination crucible and mould holders

Mould

modutemp-mould

Code A B C Estimated Weight (g)
TM1 39/41mm 3mm 50mm 60-100
TM2 30/32mm 3mm 42mm 60-100

Modutemp Platinum Moulds/Casting Dishes are available in 95%Pt/5%Au (platinum/gold) or SFA (Special Fusion Alloy)

Crucible

modutemp-crucible

Code A B C Estimated Weight (g)
TC1 36mm 35mm 18mm 30
TC2 36mm 40mm 18mm 30

Modutemp Platinum Crucibles are available in 95%Pt/5%Au (platinum/gold) or SFA (Special Fusion Alloy)

Robust Construction Simple Operation Robust Construction < 01 of 02 >
