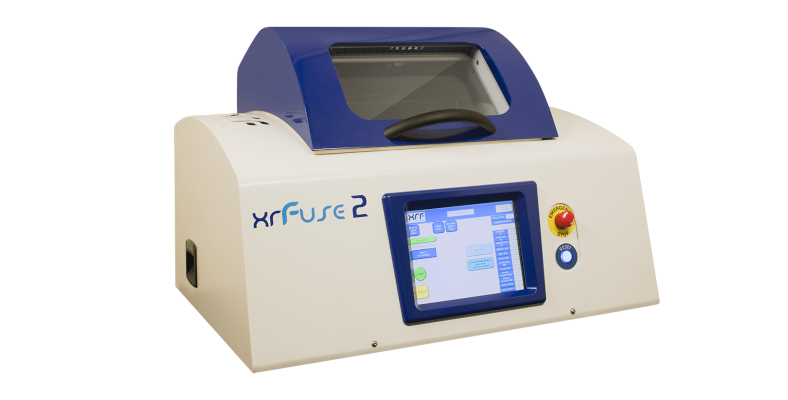

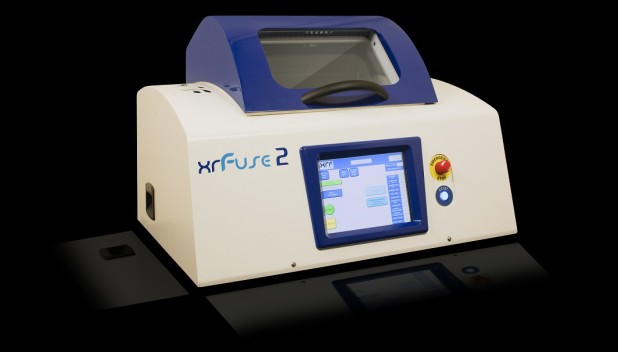

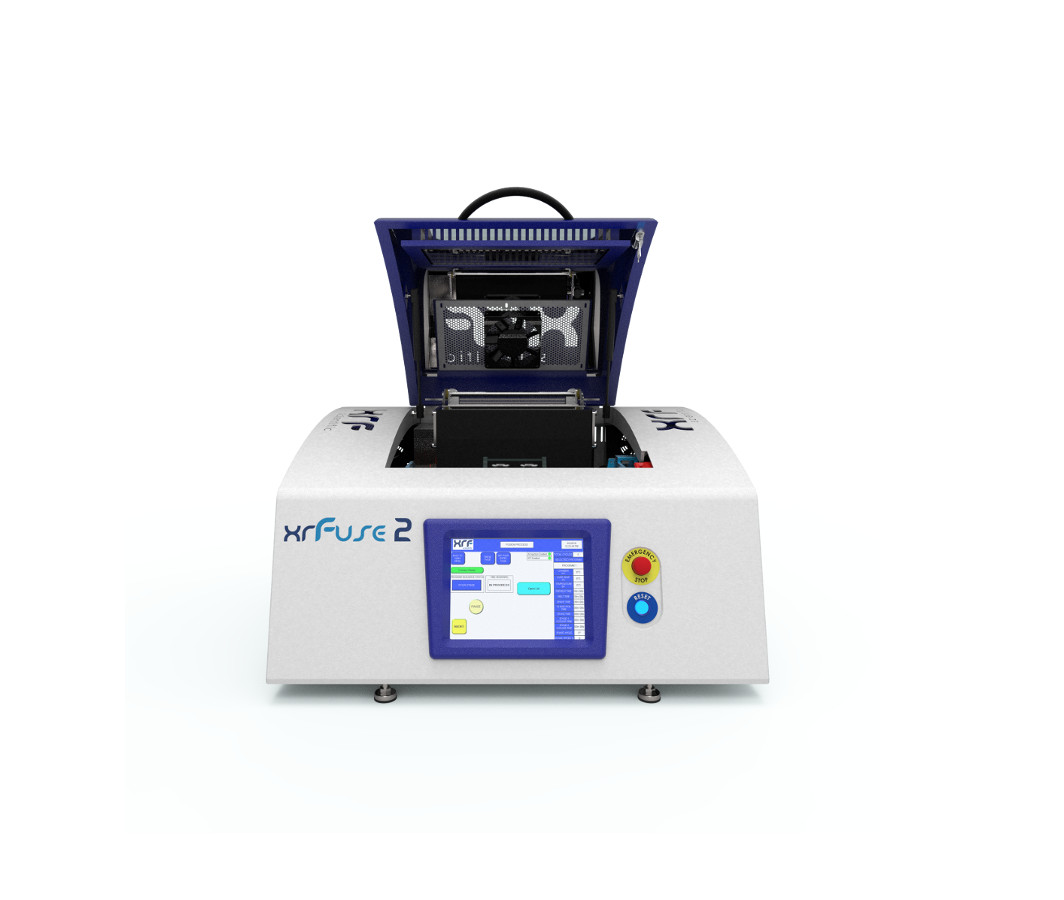

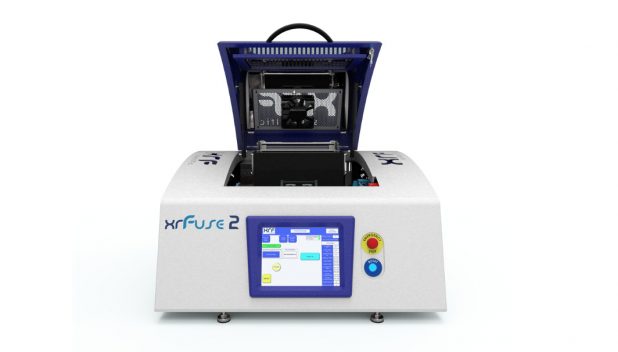

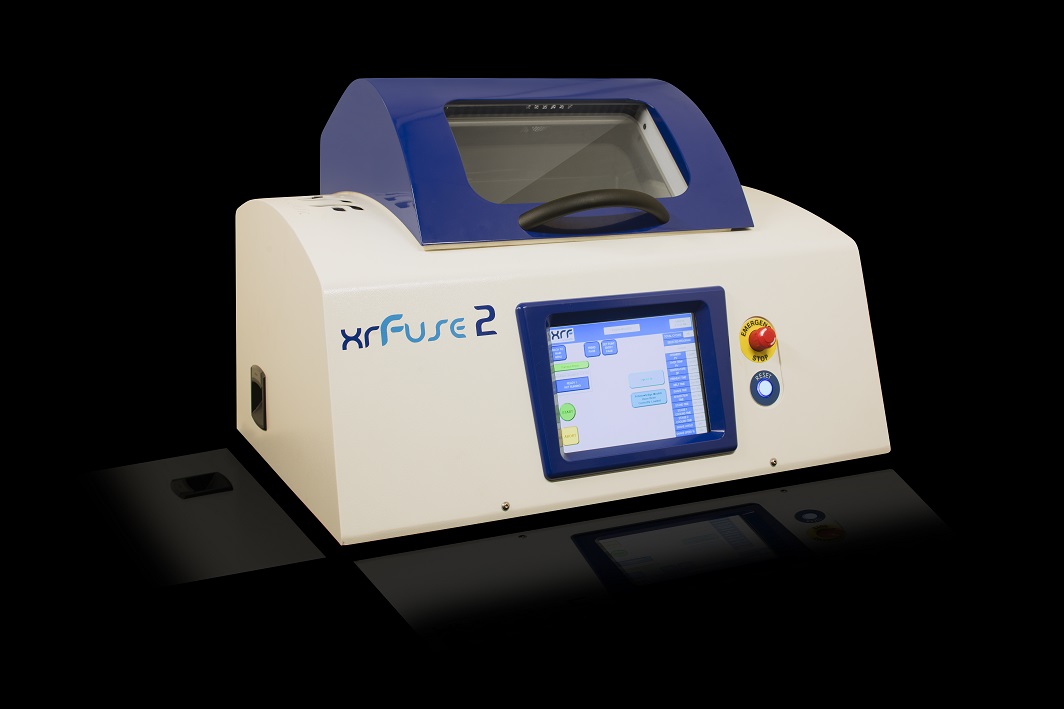

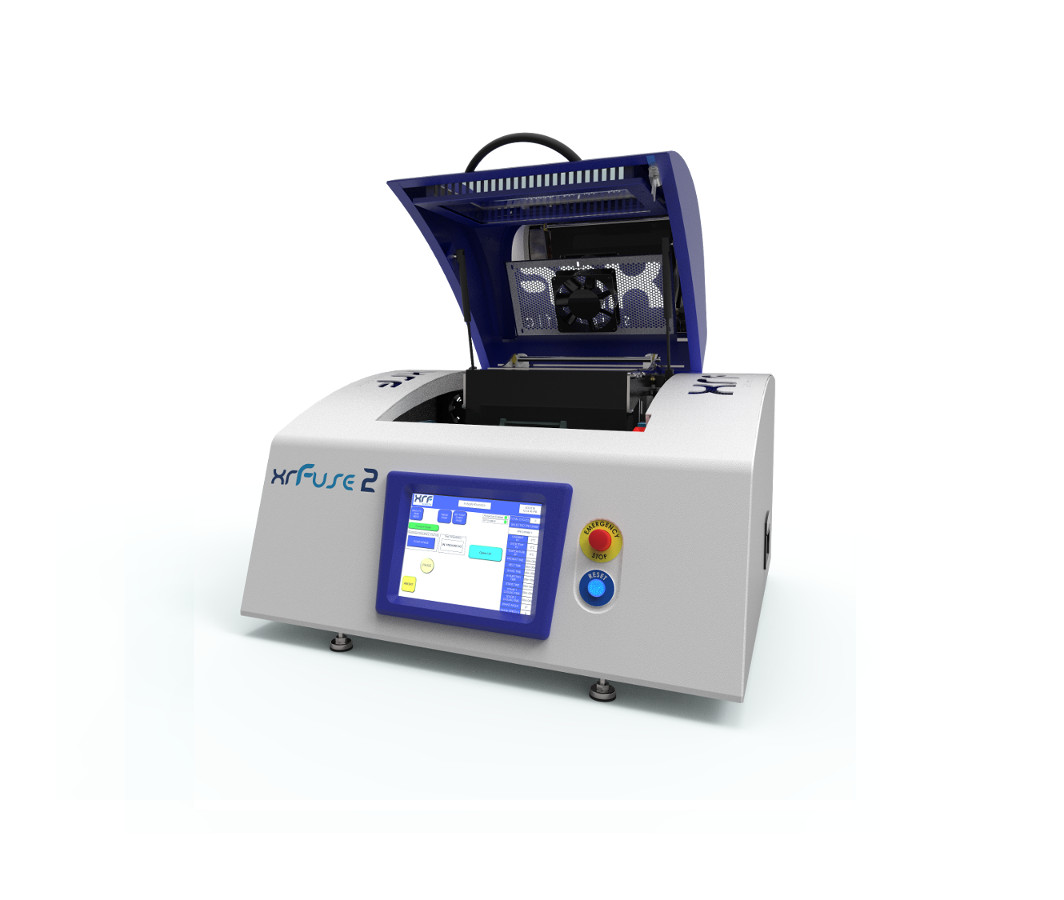

The xrFuse range of automated electric fusion machines has been developed based on more than 25 years of experience of fusion technology and applications. Designed with the latest thermal imaging technology, consumer tested in the biggest XRF laboratories in the world, xrFuse is designed with the customer in mind.

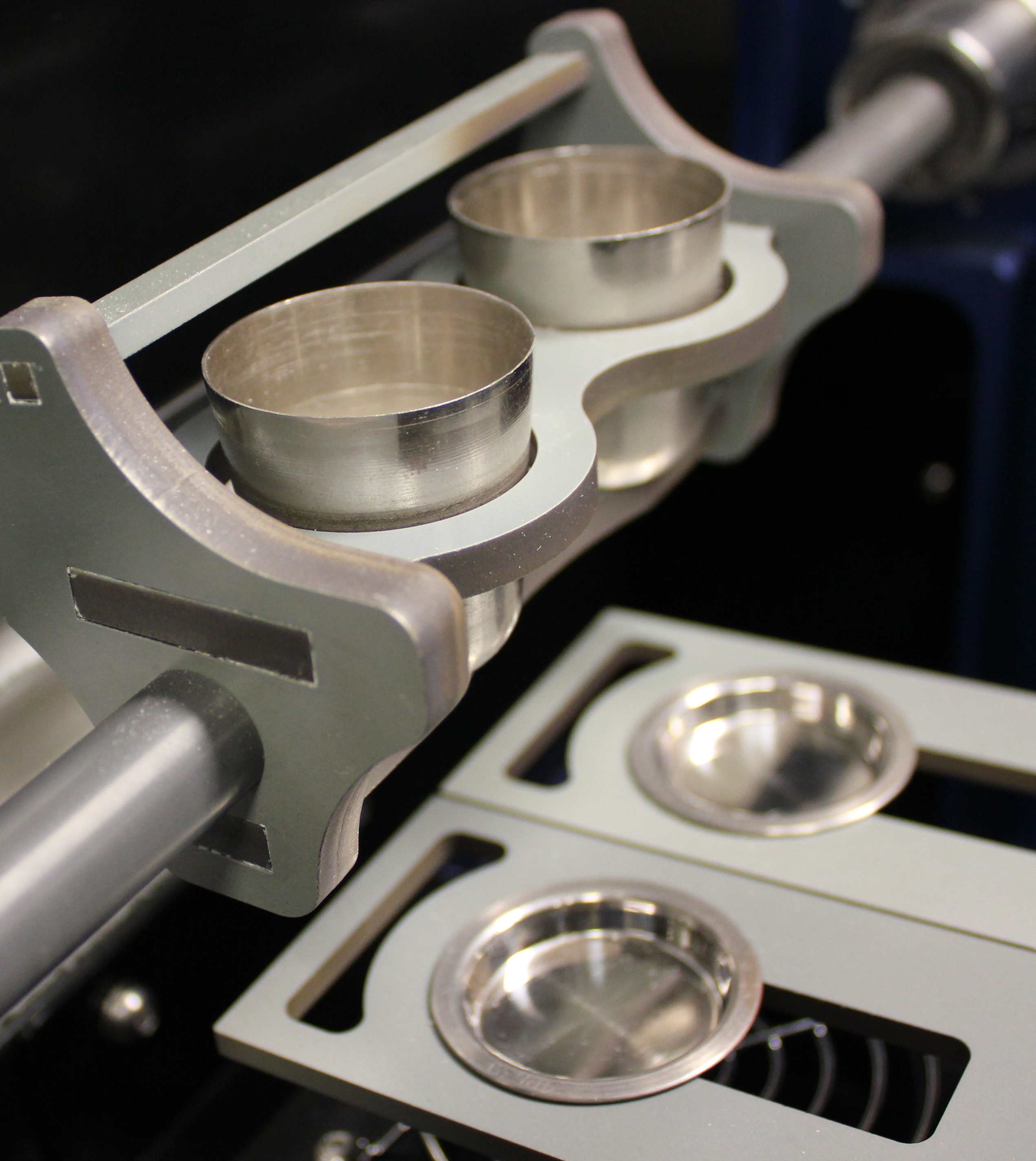

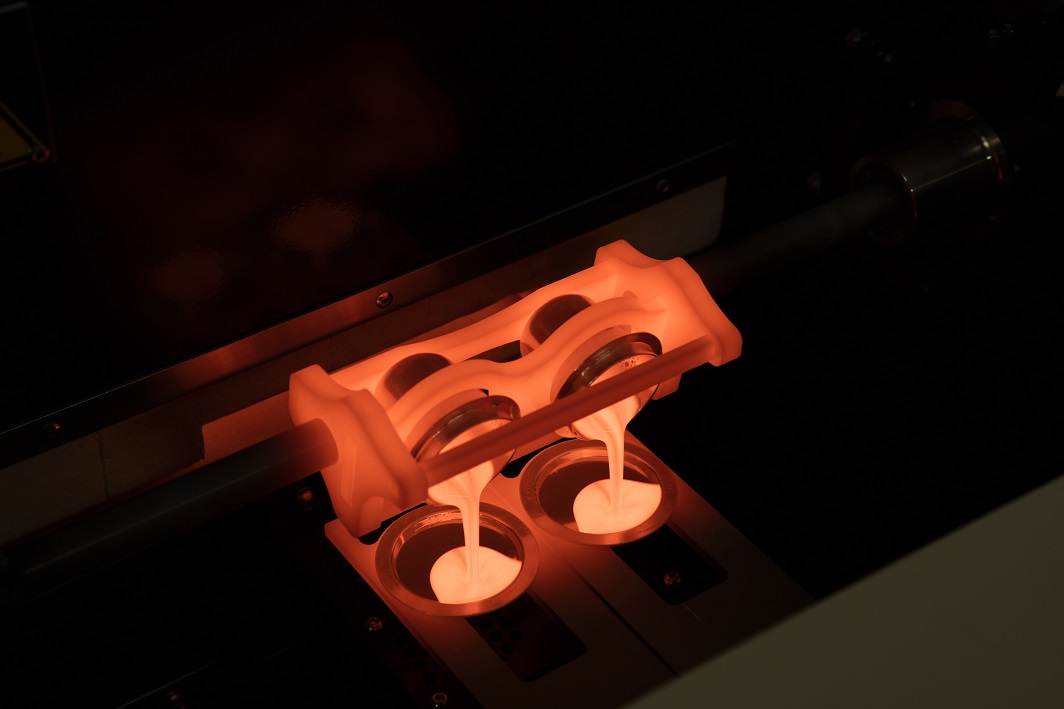

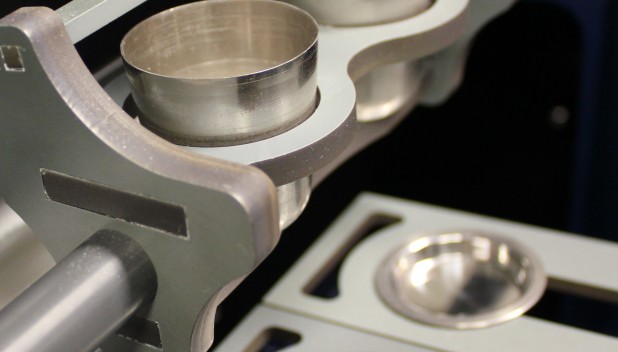

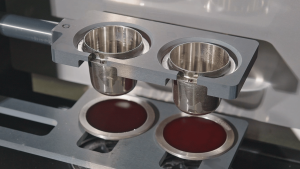

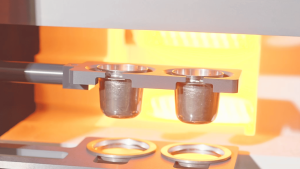

Zero Contamination – The ceramic cradle and holders ensure that the environment for creating beads has zero contamination from these sources.
Process Flexibility/ ICP – The machine is designed for both pre-heating and ICP processes. Simple to access, control and monitor. All at the touch of a button.

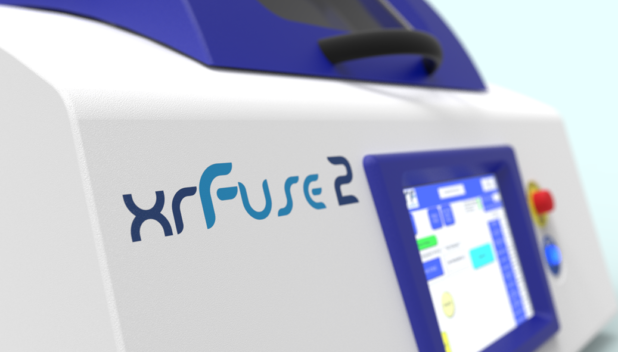

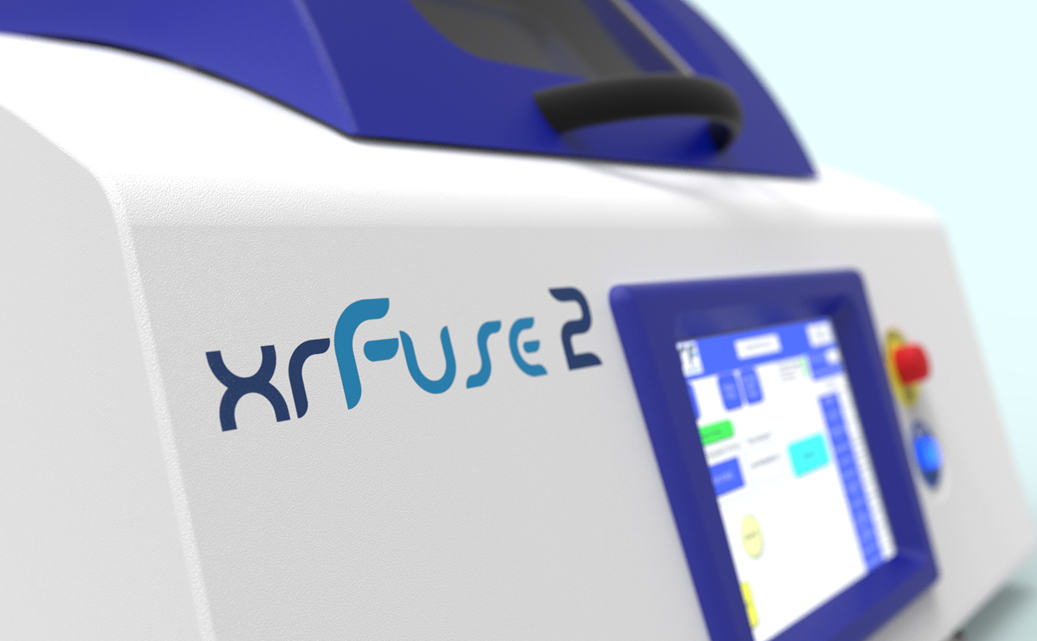

Simple User Interface – Simple touch screen interface that is easy to use. Provides the flexibility to cope with simple operation or complex one off experiments.

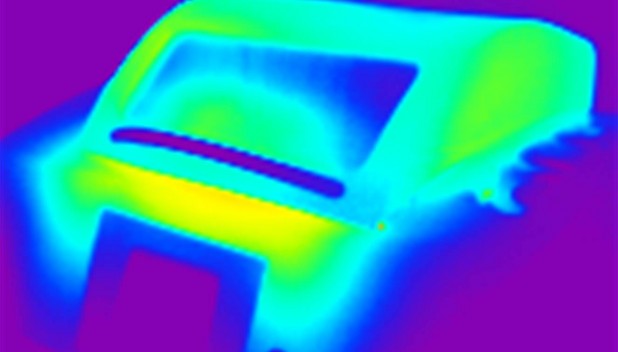

Safe Operation – The external surfaces on the machine have been modelled and developed with the latest IR technology. This ensures all external surfaces are safe to touch. The machine is CE certified and independently tested.
| Maximum Temperature | 1200°C for continuous use (1250°C for intermittent use) |
| Number of Sample Positions | 2 |
| Throughput | Up to 10 beads per hour |
| Programmable recipes | 12 |
| Cradle / mould holders | High purity ceramic |
| Voltage | 220V 1 or 3 phase 50Hz |
| Construction | Single external aluminium case |
| Crucible | 30gm |
| Moulds | 32/ 40 mm 60-100gm |
| Safety | CE Certified Cold to Cold Cat 4 rated safety circuit |
| Size | 580*780*800mm |
| Weight | 90kg |
| Elements | Silicon Carbide |

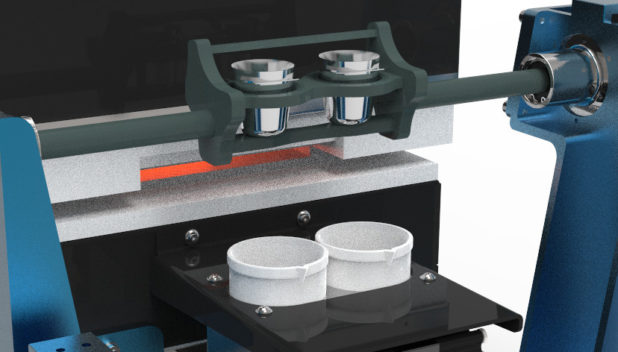

| Options | Ammonium Iodide tablet injector ICP solutions module |
Mould
| Code | A | B | C | Estimated Weight (g) |
|---|---|---|---|---|
| DM1 | 39/41mm | 4mm | 50mm | 60-100 |
| DM2 | 37/39mm | 4mm | 50mm | 60-100 |
| DM5 | 32/34mm | 4mm | 42mm | 60-100 |
| DM6 | 30/32mm | 4mm | 42mm | 60-100 |
xrFuse Platinum Moulds/Casting Dishes are available in 95%Pt/5%Au (platinum/gold) or SFA (Special Fusion Alloy)
Crucible
| Code | A | B | C | D | E | Estimated Weight (g) |
|---|---|---|---|---|---|---|
| DC1 | 36mm | 35.5mm | 19mm | 6mm | 44mm | 30 |
| DC2 | 36mm | 35.5mm | 19mm | 6mm | 44mm | 40 |
xrFuse Platinum Crucibles are available in 95%Pt/5%Au (platinum/gold) or SFA (Special Fusion Alloy)
