The TGA4000 is a flexible thermogravimetric analysis solution for high throughput laboratories. The system, even though it produces over 1,600 samples per day, can still maintain accuracy and precision to < 0.05% of standard deviation. The TGA4000 can accommodate 7 carousels in the loading cabinet and 8 in the drying oven, increasing sample throughput. The software is extremely intuitive and has the flexibility to give priority to urgent samples.
Features
- 3200 samples/day using 2 point LOI
- 1600 samples/day using 4 point LOI
- Accuracy <0.05% standard deviation

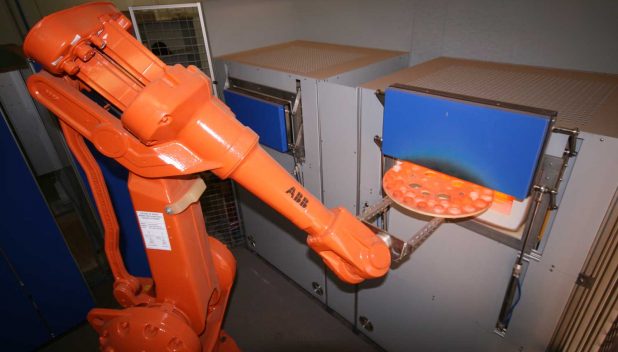

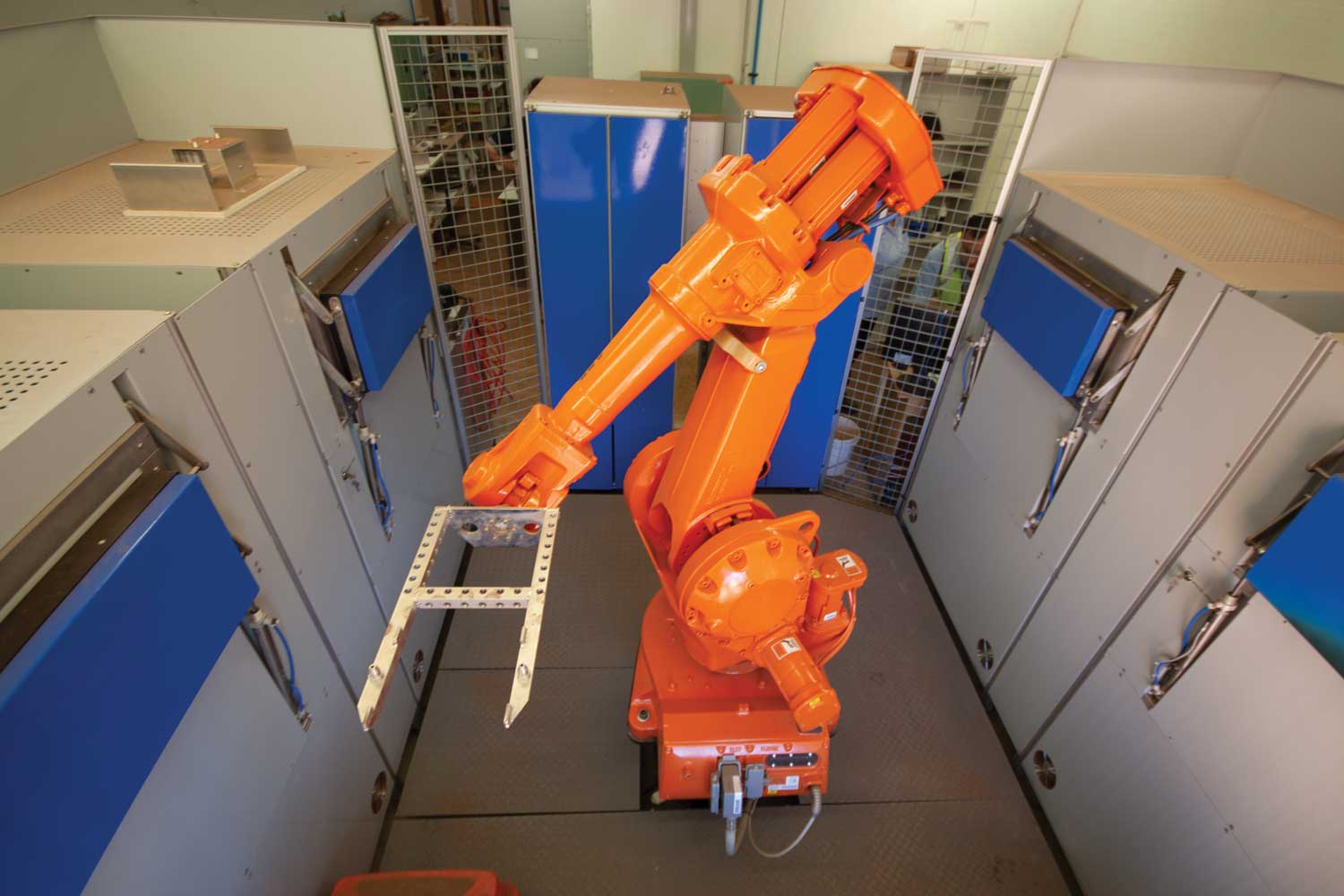

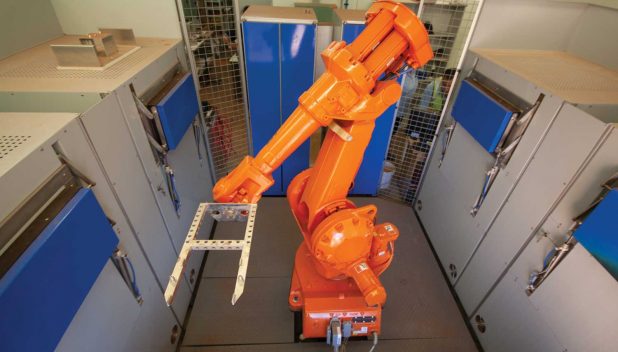

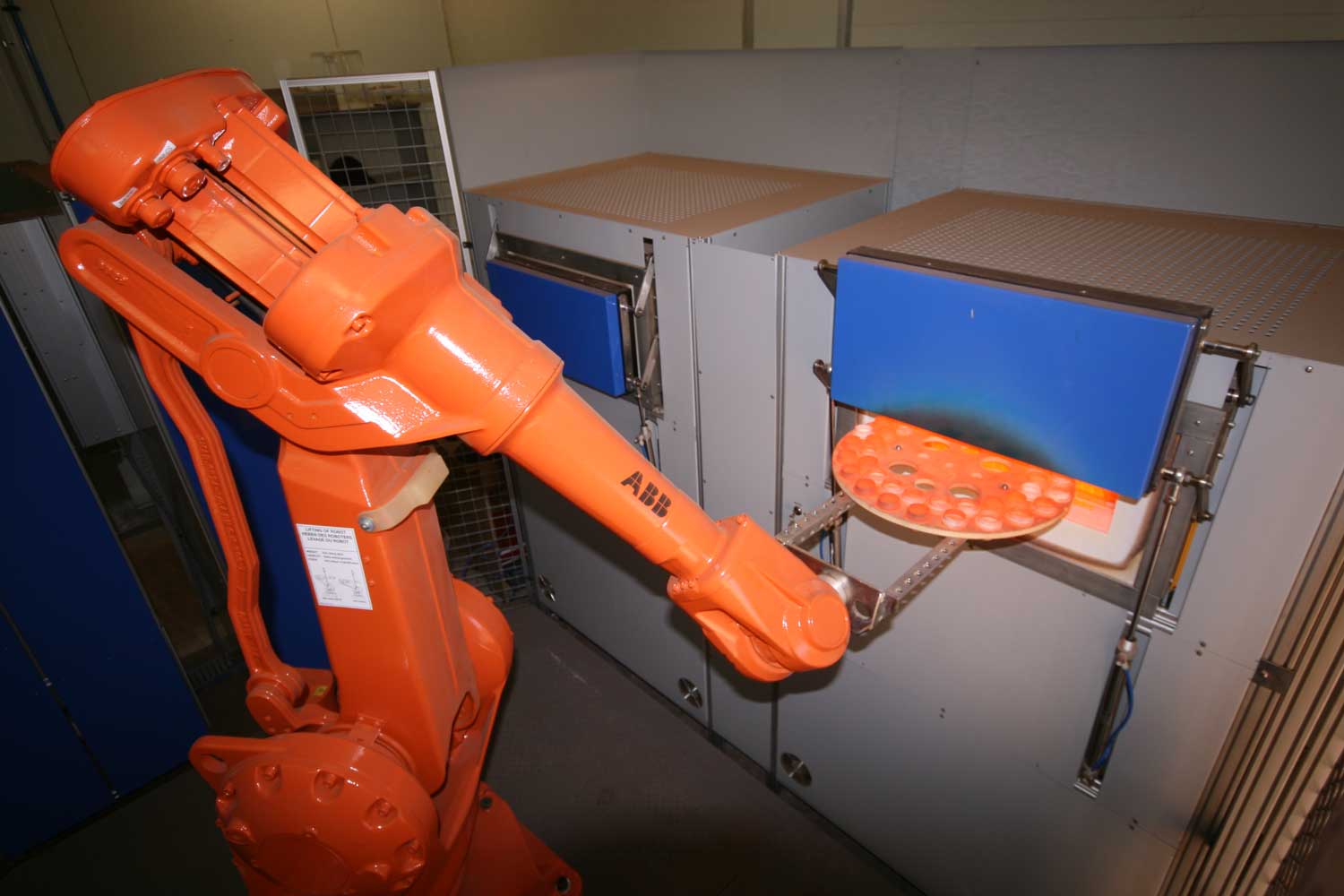

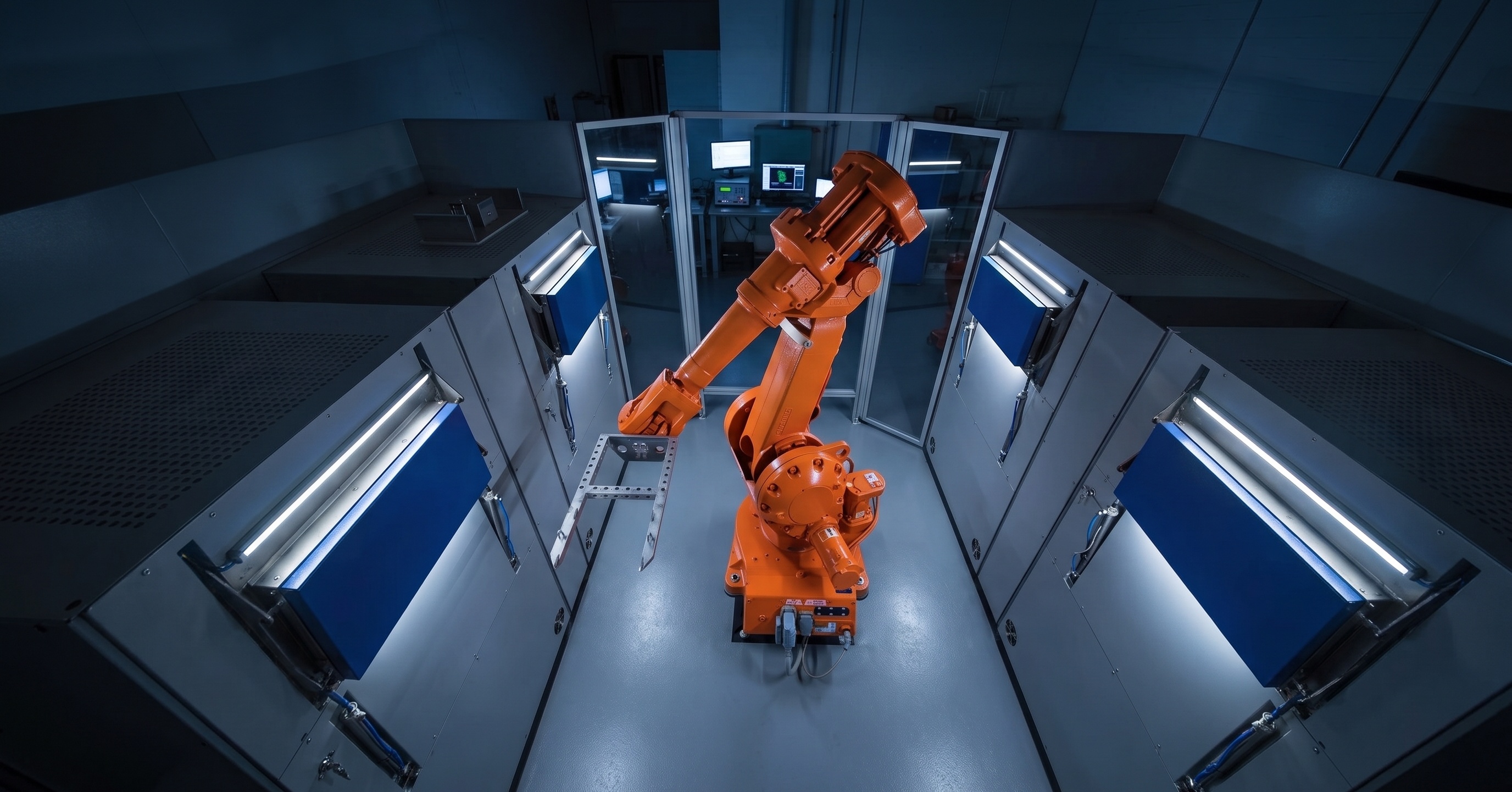

- Robotic controlled system
- 42 position sample carousels
- LIMS connectivity
- Iron ore
- Bauxite
- Coal
- Synthetic samples
- Feeds
- Organic materials
| Furnace temperature range | Room temperature to 1050°C |
| Robot | 6 axis high accuracy robot |
| Computer / Software | Windows controlled PC with user friendly software. LIMS connectivity |
| Gas flow rates | 0-10 litres per minute for oxygen or nitrogen |
| Dimensions | 3.26m wide x 3.08m deep x 2.14m high |
