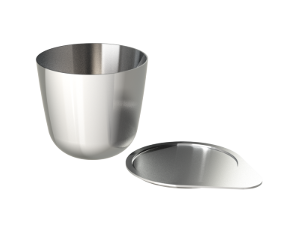

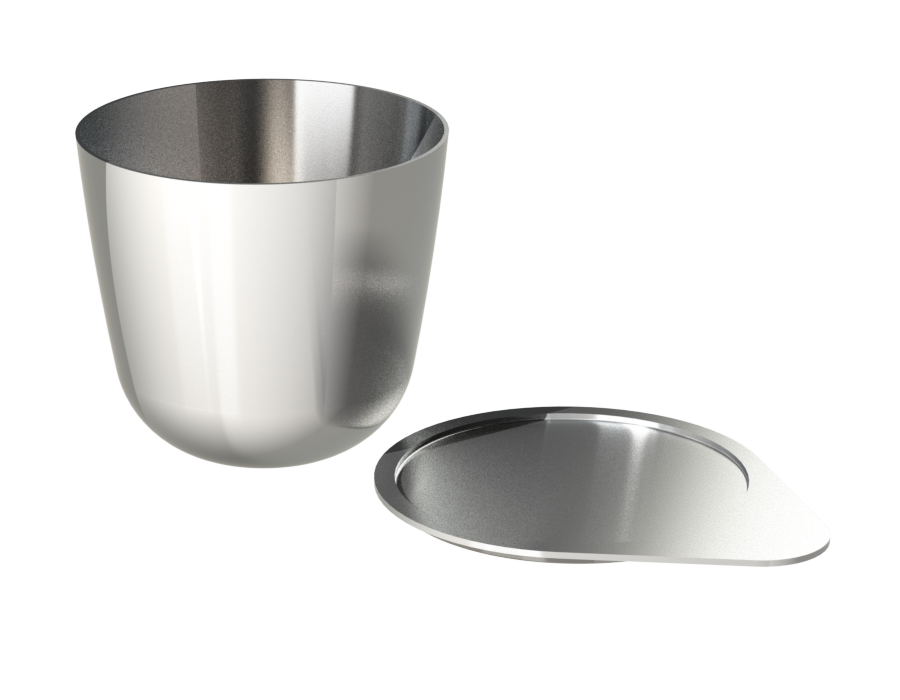

Standard Form Crucible

Request a Quote

close

    Please note that some additional information may be required, in this case one of our customer service representatives will contact you.

    * Indicates required field

    *Name

    Company

    *Email Address

    Telephone

    *Country

    *Query:

    01

    *Product Category

    *Product Sub Category



    *Product

    *Qty

    02

    Product Category

    Product Sub Category



    Product

    Qty

    03

    Product Category

    Product Sub Category



    Product

    Qty

    04

    Product Category

    Product Sub Category



    Product

    Qty

    05

    Product Category

    Product Sub Category



    Product

    Qty

    06

    Product Category

    Product Sub Category



    Product

    Qty

    07

    Product Category

    Product Sub Category



    Product

    Qty

    08

    Product Category

    Product Sub Category



    Product

    Qty

    09

    Product Category

    Product Sub Category



    Product

    Qty

    10

    Product Category

    Product Sub Category



    Product

    Qty







    *Reinforcing of the rim gives the crucible a more robust character enabling regular handling and reducing rim deformation.

    Available Capacity: 2.5-700ml (larger sizes made to order).

    Options: Lids, reinforced and/or bases.

    Alloys: Platinum crucibles are available in the following alloys:

    – 100%Pt (platinum)
    – 95%Pt/5%Au (platinum/gold)
    – 97%Pt/3%Rh (platinum/rhodium)
    – 90%Pt/10%Rh (platinum/rhodium)
    – 90%Pt/10%Ir (platinum/iridium)

    Estimated Weight (g) Estimated Weight (g) Estimated Weight (g) Estimated Weight (g) Estimated Weight (g)
    Code Capacity (ml) Diameter (mm) Depth (mm) Std. Form Rim Only (reinforced) Base Only (reinforced) Rim & Base (reinforced) Std. Lid Only
    GCS2.5 2.5 12 15 3 4 4 5 2
    GCS5 5 20 22 4 5 5 6 2
    GCS8 8 25 24 6 7 7 8 2
    GCS10 10 25 28 7 7.5 8 9 3
    GCS15 15 30 31 11 12 13 14 4
    GCS20 20 33 35 15 16 17 18 5
    GCS25 25 36 34 19 20 21 23 5
    GCS30 30 40 36 22 24 26 27 7
    GCS35 35 41 38 25 26 27 32 7
    GCS40 40 42 42 30 32 34 36 7
    GCS50 50 45 44 38 40 42 45 8
    GCS60 60 45 47 46 48 50 54 9
    GCS70 70 49 53 50 52 54 63 12
    GCS80 80 51 53 51 54 63 72 14
    GCS90 90 54 57 52 59 71 81 15
    GCS100 100 56 57 59 68 73 90 17
    GCS110 110 56 60 68 71 81 95 19
    GCS120 120 64 66 84 88 90 98 22
    GCS150 150 65 69 100 104 107 114 27
    GCS200 200 80 65 150 159 165 180 30
    GCS250 250 81 73 175 179 183 190 32
    GCS700 700 107 105 300 305 315 320 50
