Phoenix GO ICP
Request a Quote
close

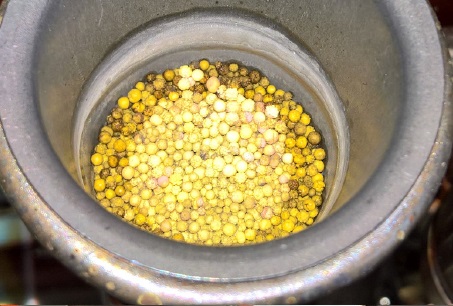

Phoenix GO ICP gas fusion machines are designed to do multiple and repeatable fusions with peroxide, hydroxide and carbonate. Phoenix GO ICP uses gas only, without the need for oxygen and compressed air. They are developed for high up time applications and made to endure repetitive exposure to aggressive environments. With 8 fusion stations, the Phoenix GO 8000 ICP is specially made for high volume.
- 2 or 8 fusion stations

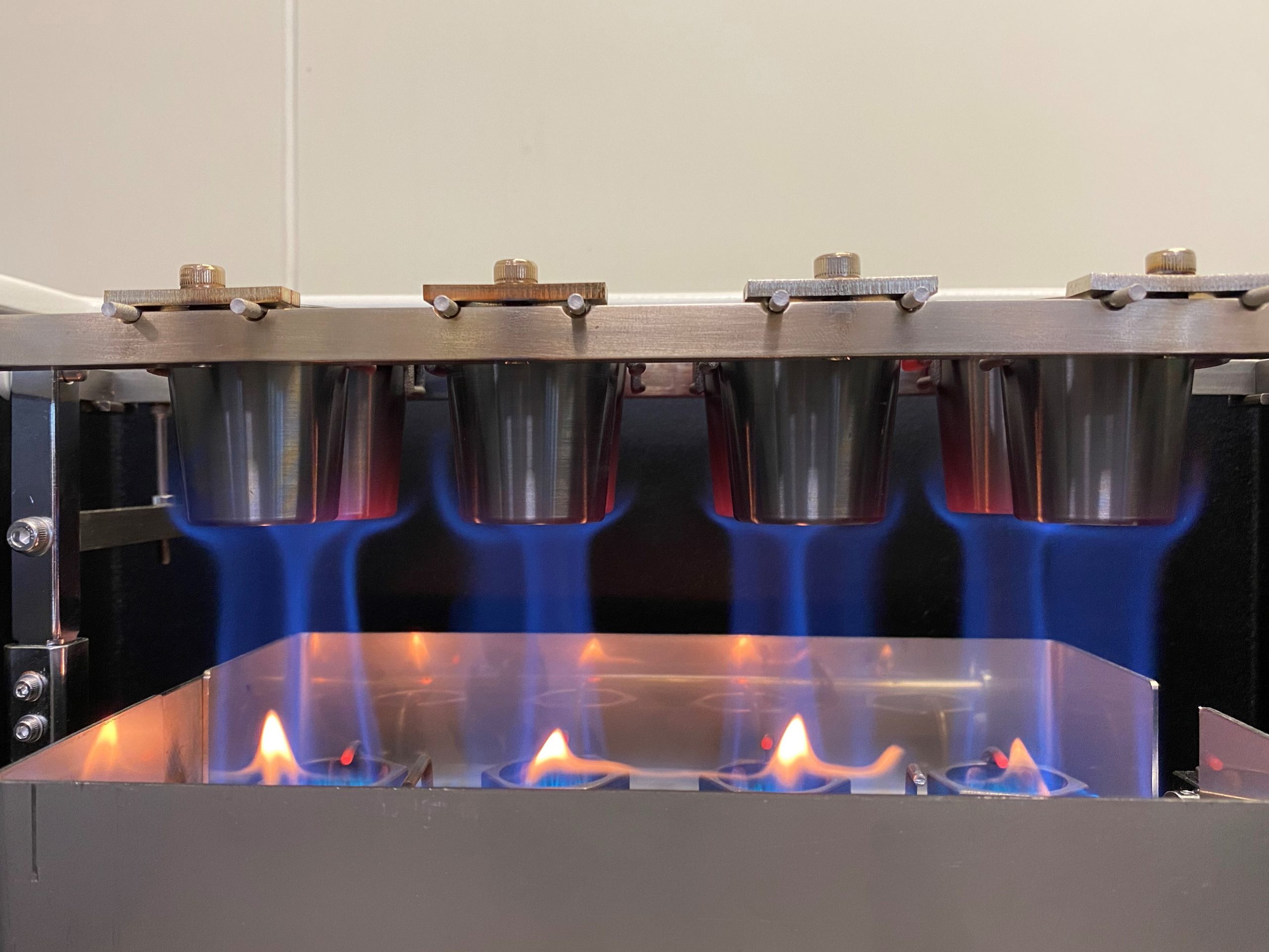

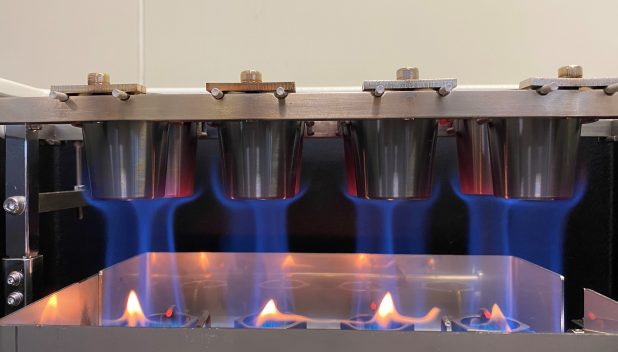

- Gas Only fan forced burner
- Fully Automatic: PREHEATING, HEATING, SWIRLING and COOLING
- Temperature: 300 – 1000°C
- Multiple Heating Steps Programmable
- Temperature measurement: Thermocouple near flame (indicative)

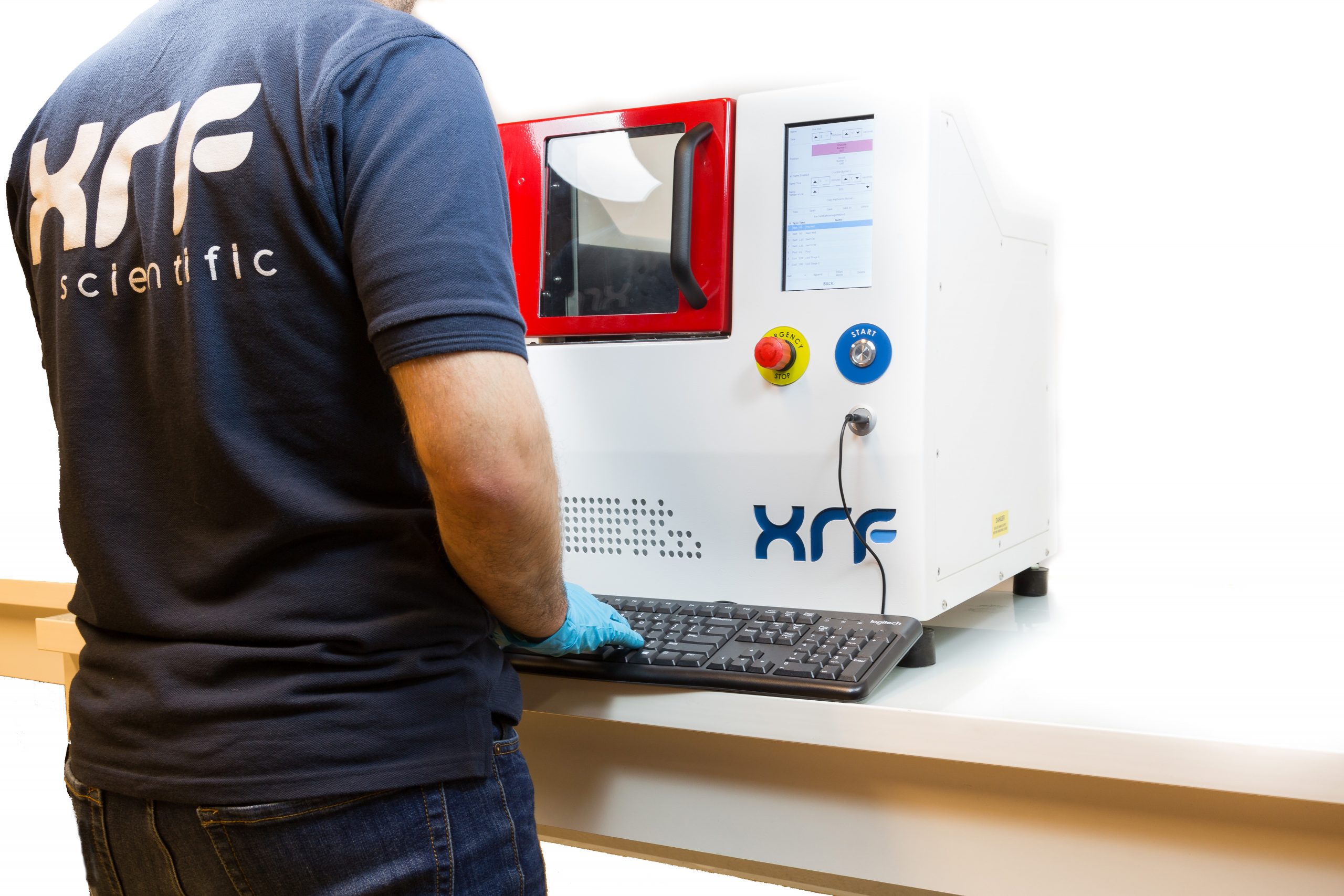

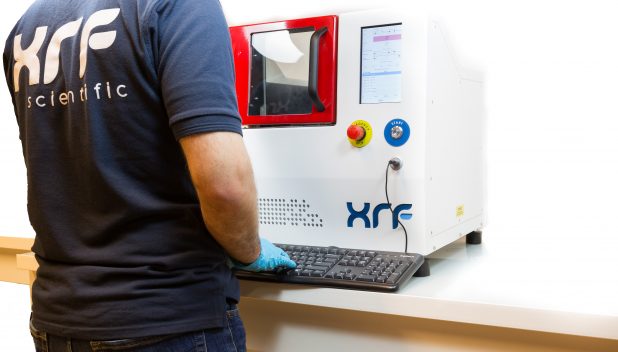

- Touch screen user interface
- Up to 100 user-defined recipes with naming flexibility
- Homogenization by Swirling
- Crucible cooled above the burner
- Emergency stop button; Automatic gas cut-off safety system, Active burner monitoring Cold-to-cold
operation, Safety rated lid switch - USB communication link
| Construction | External aluminium case |
| Door | Cool touch glass viewing window |
| Size (HxWxD) | 530 x 763 x 598mm |
| Weight | 75kg |
| User interface | Touch screen user interface |
| Programmable recipes | Up to 100 user-defined recipes with naming flexibility |
| Burner | Gas-only fan-forced burner – 2 or 8 -positions |
| Temperature measurement | Thermocouple near flame (indicative) |
| Power requirement | 50–60Hz, 100–240Volt AC |
| Noise | <70db |
