Multi-Purpose Crucibles & Moulds
Request a Quote
close

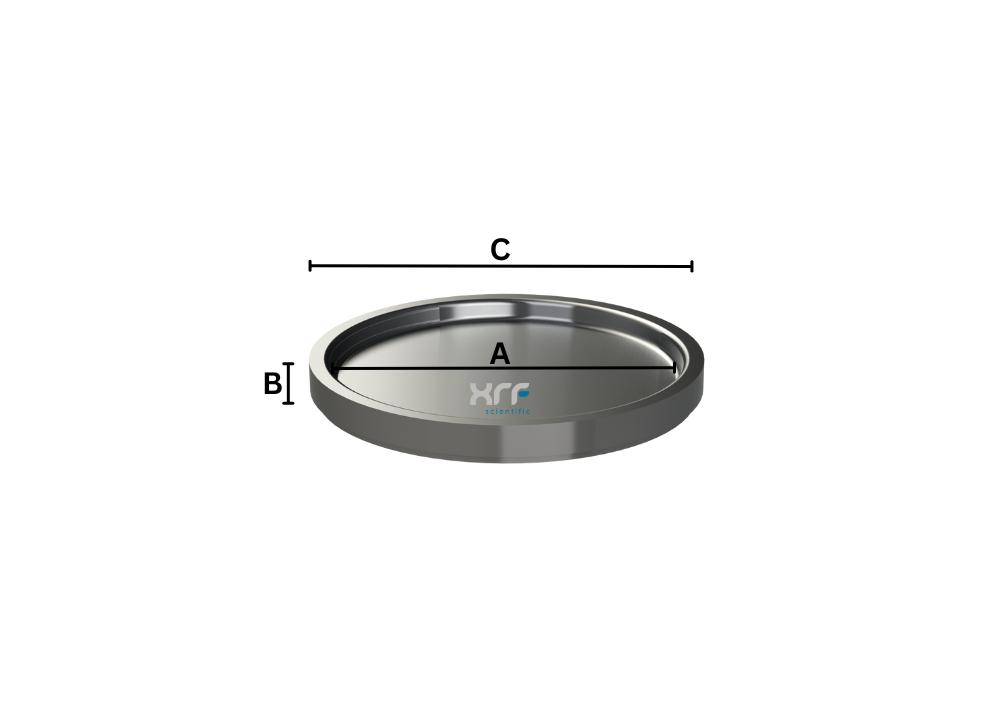

| Code | A | B | C | Estimated Weight (g) |
|---|---|---|---|---|
| XM16 | 30/32mm | 2.5mm | 33mm | 40-100 |
| XM17 | 30/32mm | 2.5mm | 39mm | 80-100 |
| XM18 | 30/32mm | 3mm | 40mm | 80-100 |
| XM19 | 32/35mm | 2mm | 39mm | 80-100 |
| XM20 | 33/35mm | 2.5mm | 37mm | 80-100 |
| XM21 | 33/35mm | 2.5mm | 39mm | 80-100 |
| XM22 | 38/40mm | 2.5mm | 44mm | 100 |
| XM23 | 39/41mm | 2mm | 44mm | 100 |
| XM24 | 39/41mm | 2.5mm | 44mm | 100 |
| XM25 | 39/41mm | 3mm | 44mm | 100 |
| XM26 | 39/41mm | 3.5mm | 44mm | 100 |
Multi-purpose Platinum Moulds/Casting Dishes are available in 95%Pt/5%Au (platinum/gold) or SFA (Special Fusion Alloy)

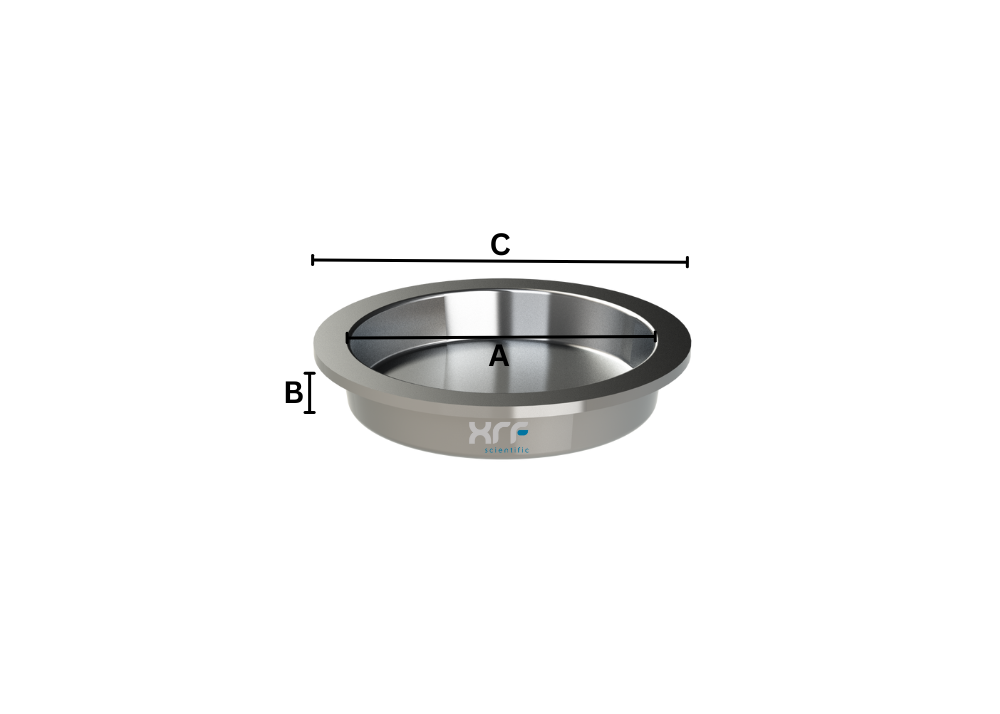

| Code | A | B | C | Estimated Weight (g) |
|---|---|---|---|---|
| XM6 | 29/31mm | 3mm | 42mm | 45-100 |
| XM7 | 30/32mm | 2.4mm | 42mm | 45-100 |
| XM8 | 30/32mm | 3mm | 42mm | 45-100 |
| XM9 | 30/32mm | 4mm | 42mm | 50-100 |
| XM10 | 32/34mm | 3mm | 46mm | 50-100 |
| XM11 | 33/34mm | 2.4mm | 46mm | 50-100 |
| XM27 | 36/38mm | 3mm | 55mm | 60-100 |
| XM12 | 38/40mm | 3mm | 52mm | 60-100 |
| XM13 | 38/40mm | 4.5mm | 52mm | 60-100 |
| XM14 | 39/41mm | 3mm | 52mm | 60-100 |
| XM15 | 39/41mm | 4mm | 52mm | 60-100 |
Multi-purpose Platinum Moulds/Casting Dishes are available in 95%Pt/5%Au (platinum/gold) or SFA (Special Fusion Alloy)
| Code | A | B | C | Estimated Weight (g) |
|---|---|---|---|---|
| XM1 | 29/31mm | 5mm | 42mm | 20-40 |
| XM2 | 30/31mm | 6mm | 37mm | 20-40 |
| XM28 | 36/38mm | 3mm | 55mm | 30-50 |
| XM3 | 38/40mm | 3.5mm | 52mm | 30-50 |
| XM4 | 38/40mm | 8mm | 48mm | 30-50 |
| XM5 | 39/41mm | 5mm | 52mm | 30-50 |
| XMD1 | 29/31mm | 6mm | 42mm | 40 |
| XMD3 | 30/32mm | 6mm | 42mm | 40 |
| XMD4 | 31/33mm | 6mm | 52mm | 50 |
| XMD5 | 32/34mm | 6mm | 46mm | 40 |
| XMD7 | 35/37mm | 6mm | 52mm | 50 |
| XMD9 | 38/40mm | 5mm | 52mm | 60 |
| XMD10 | 39/41mm | 5mm | 52mm | 60 |
| XMD11 | 39/41mm | 6mm | 52mm | 60 |
| XMD12 | 40/42mm | 6mm | 52mm | 60 |
| XM29 | 29/31mm | 4mm | 40mm | 30 |
| XM30 | 30/32mm | 4mm | 40mm | 30 |
| XM31 | 32/34mm | 4mm | 40mm | 30 |
| XM32 | 34/36mm | 4mm | 50mm | 50 |
| XM33 | 39/41mm | 4mm | 50mm | 50 |
Multi-purpose Platinum Moulds/Casting Dishes are available in 95%Pt/5%Au (platinum/gold) or SFA (Special Fusion Alloy)
