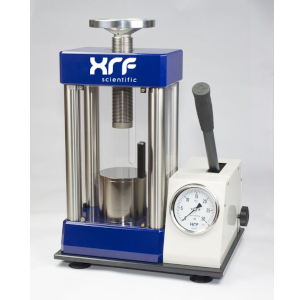

Manual Hydraulic Press

A manually operated hand press designed for preparing powder samples for IR and X-Ray Fluorescence Analysis. It features an accurate pressure gauge, tough housing with poly-carbonate safety door.

Key Features

  • Polycarbonate safety guards
  • Adjustable upper bolster
  • Adjustable pressure control valve
  • Vacuum Ports
  • Pressure release valve
  • Optional gauges for low pressure applications
Code Description
MANUALT15 Manual Hydraulic Press – 15 Ton
MANUALT25 Manual Hydraulic Press – 25 Ton
SP-GS15051 Low Tonnage Conversion Kit – Gauge Conversion Kit 0-1 Ton (0.05 Ton increments)
SP-GS15052 Low Tonnage Conversion Kit – Gauge Conversion Kit 0-2 Ton (0.1 Ton increments)
SP-GS15055 Low Tonnage Conversion Kit – Gauge Conversion Kit 0-5 Ton (0.2 Ton increments)
Max. Load on Ram (Piston) T15 15 Tons
Max. Load on Ram (Piston) T25 25 Tons
Max height (at handle) 610mm
Width 310mm
Depth 190mm
Weight 50kg
Lower Piston Stroke 25.4mm
Upper bolster screw travel 89mm
Distance between pressing faces (max) 152mm
Distance between pressing faces (min) 38mm
Lower pressing face diameter 86mm
Upper pressing face diameter 32mm
Max width of sampling area (side to side) 134mm
Max depth of sampling area (front to back) 141mm
