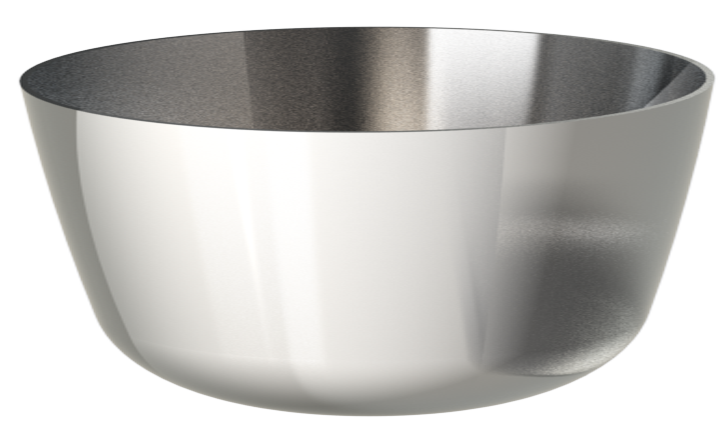

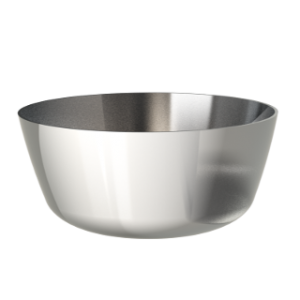

Flat Bottom Dishes

flat-bottom-dishes

Evaporating dishes may be ordered also with reinforced rim and heavy base. The additional cost for reinforcement is far outweighed by longer life and ease of handling. If covers are required, please specify.

Estimated Weight (g) Estimated Weight (g) Estimated Weight (g) Estimated Weight (g) Estimated Weight (g)
Code Capacity (ml) Diameter (mm) Depth (mm) Std. Form Rim Only (reinforced) Base Only (reinforced) Rim & Base (reinforced) Std. Lid Only
GD20 20 41 20 6 7 8 9 6
GD25 25 42 23 8 9 10 12 10
GD35 35 49 25 12 13 14 16 13
GD40 40 51 26 15 17 18 20 14
GD50 50 53 29 17 19 21 25 15
GD60 60 58 30 0 21 23 27 19
GD75 75 65 30 25 27 30 33 22
GD100 100 70 33 33 35 37 40 25
GD125 125 74 34 42 44 45 48 28
GD150 150 77 41 50 53 55 60 33
GD175 175 84 40 55 59 64 68 41
GD200 200 90 43 67 71 75 80 44
GD250 250 94 42 80 82 83 88 51
GD300 300 110 45 94 98 100 105 55
GD400 400 115 48 133 137 140 148 58
GD500 500 124 50 170 179 185 200 61
GD750 750 124 75 270 290 310 350 61

Alloys: Platinum dishes are available in the following alloys:

– 100%Pt (platinum)
– 95%Pt/5%Au (platinum/gold)
– 97%Pt/3%Rh (platinum/rhodium)
– 90%Pt/10%Rh (platinum/rhodium)
– 90%Pt/10%Ir (platinum/iridium
