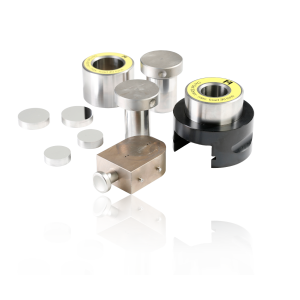

Evacuable Pellet Die Complete
Hardened stainless steel Evacuable Pellet Dies, used for compacting powdered samples into disks or briquettes. Simplified handling for the 13 … 50mm: only the sliding part has to be removed. All of the dies are equipped with nitrile O-ring seals and an evacuation port to allow for the removal of moisture, if desired, during the pressing process.
Key Features
- Hardened Stainless Steel
- Highly polished pellets
- Unique simplified handling
Unique simplified handling
Fill the Die Set, put the plunger on top and start pressing with your lab press. At the end of the pressing, instead of taking out and dismounting the Die Set, just simply pull out the bottom slider and with some smooth pressure, the pellet will be released.
| Code | Description |
|---|---|
| MA-E03-H | 3mm evacuable pellet die; Max load 1.5 Tons |
| MA-E05-H | 5mm evacuable pellet die; Max load 4.0 Tons |
| MA-E08-H | 8mm evacuable pellet die; Max load 6.0 Tons |
| MA-E10 | 10mm evacuable pellet die complete; Stainless Steel, Max load 7.0 Tons |
| MA-E13 | 13mm evacuable pellet die complete; Stainless Steel, Max load 10.0 Tons |
| MA-E20 | 20mm evacuable pellet die complete; Stainless Steel, Max load 20.0 Tons |
| MA-E25 | 25mm evacuable pellet die complete; Stainless Steel, Max load 30.0 Tons |
| MA-E32 | 32mm evacuable pellet die (2.9kg); Max load 40.0 Tons – Lightweight dies |
| MA-E40 | 40mm evacuable pellet die (2.9kg); Max load 40.0 Tons – Lightweight dies |
| MA-E50 | 50mm evacuable pellet die; Max load 40.0 Tons |
