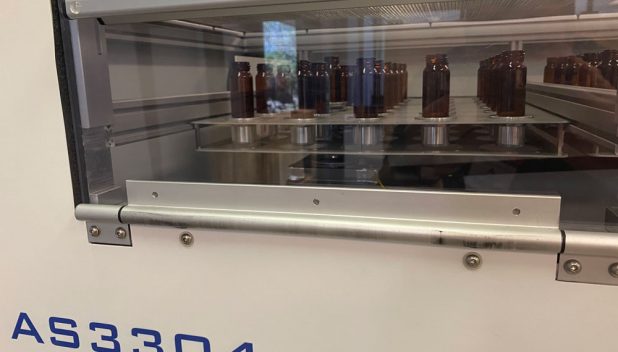

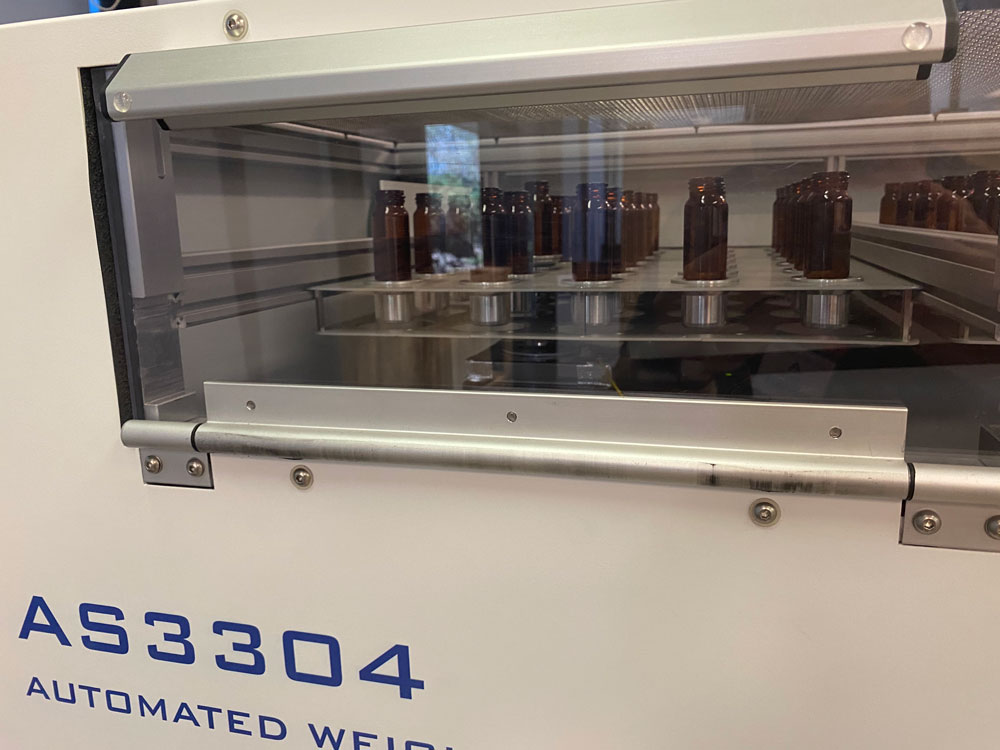

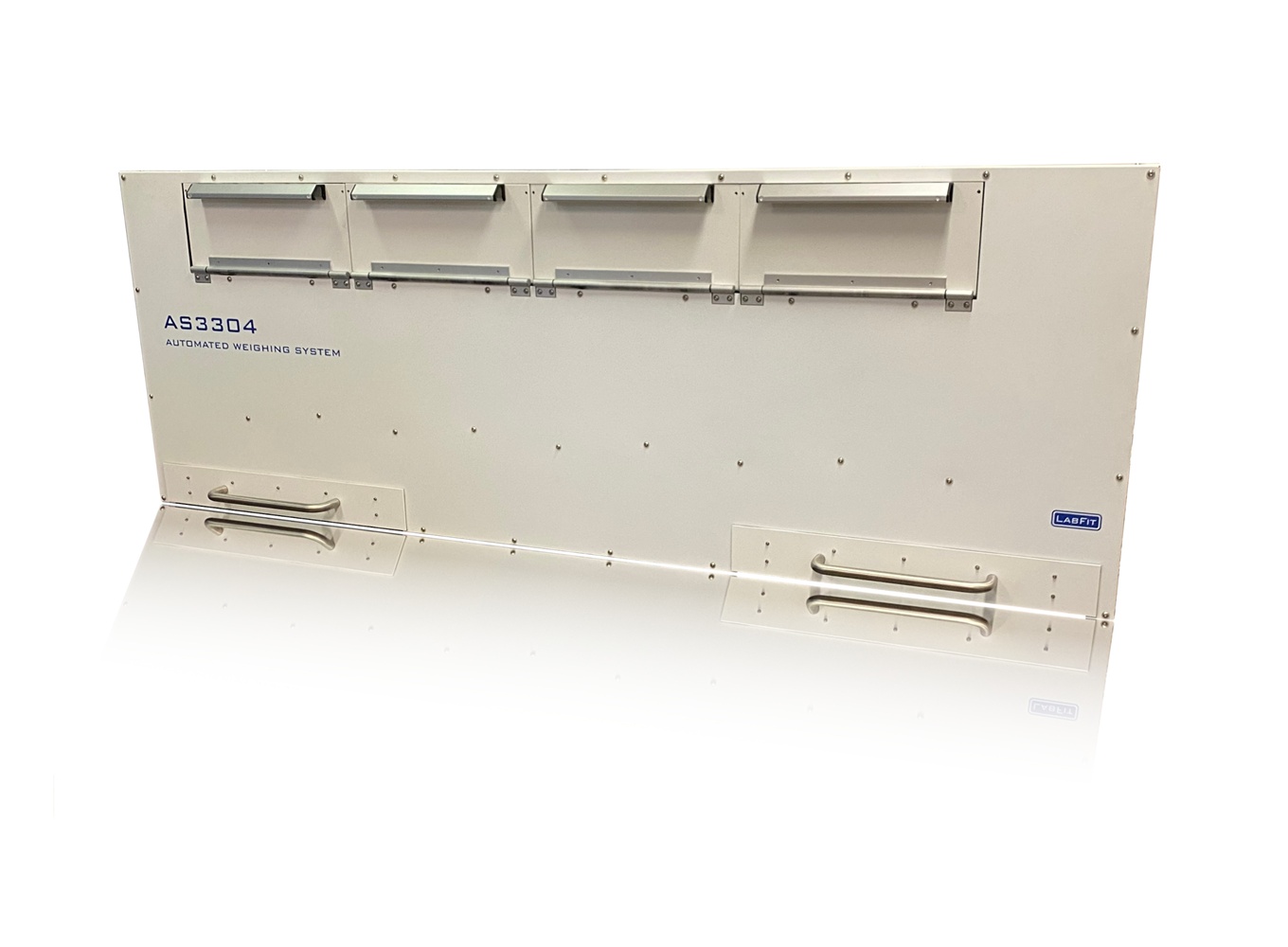

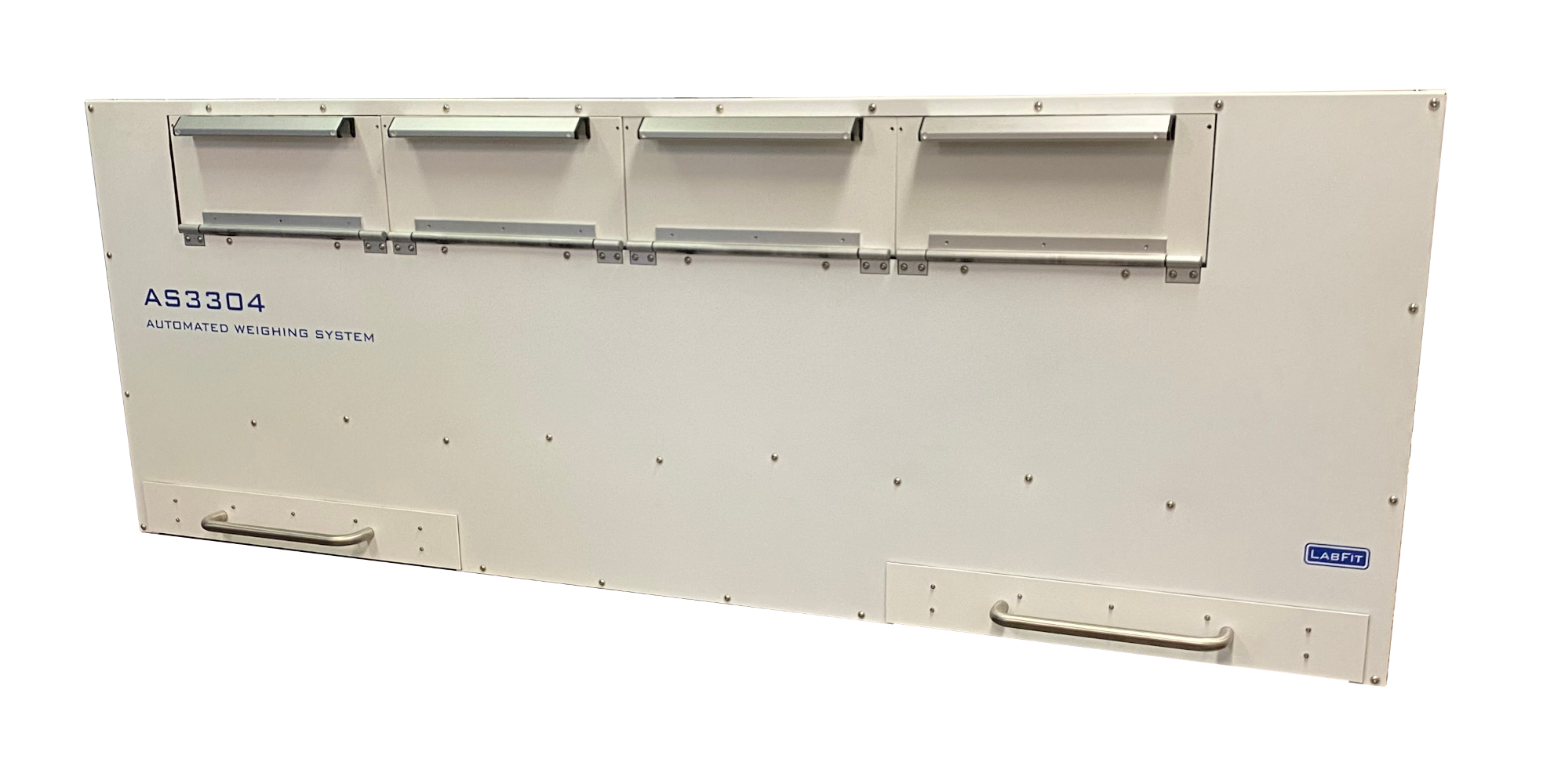

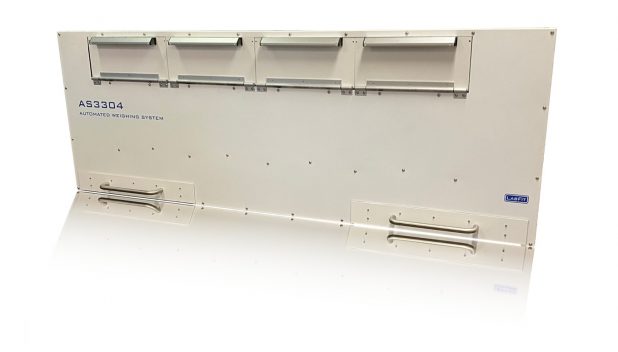

AS3304 Automated Weighing System
Request a Quote
close
The AS3304 is an automated solution for weighing of samples, such as in the process of Total Suspended Solids. It can be adapted to a variety of applications that require ultra precision weighing of samples.
Key Features
- Fully automatic weighing system with a total capacity of up to 120 samples

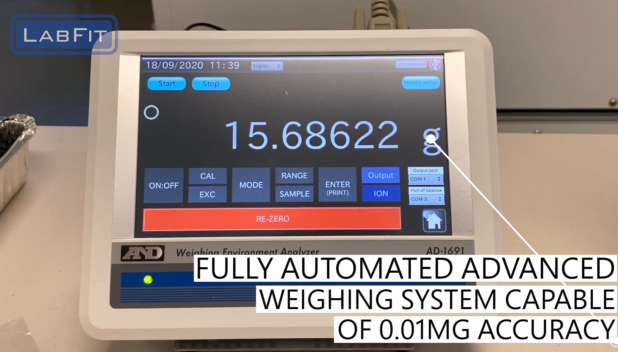

- Controlled weighing environment appropriate for precision weighing up to 0.01mg
- Automatic data handling: the system records all weights and outputs data into an easy-to-understand CSV file

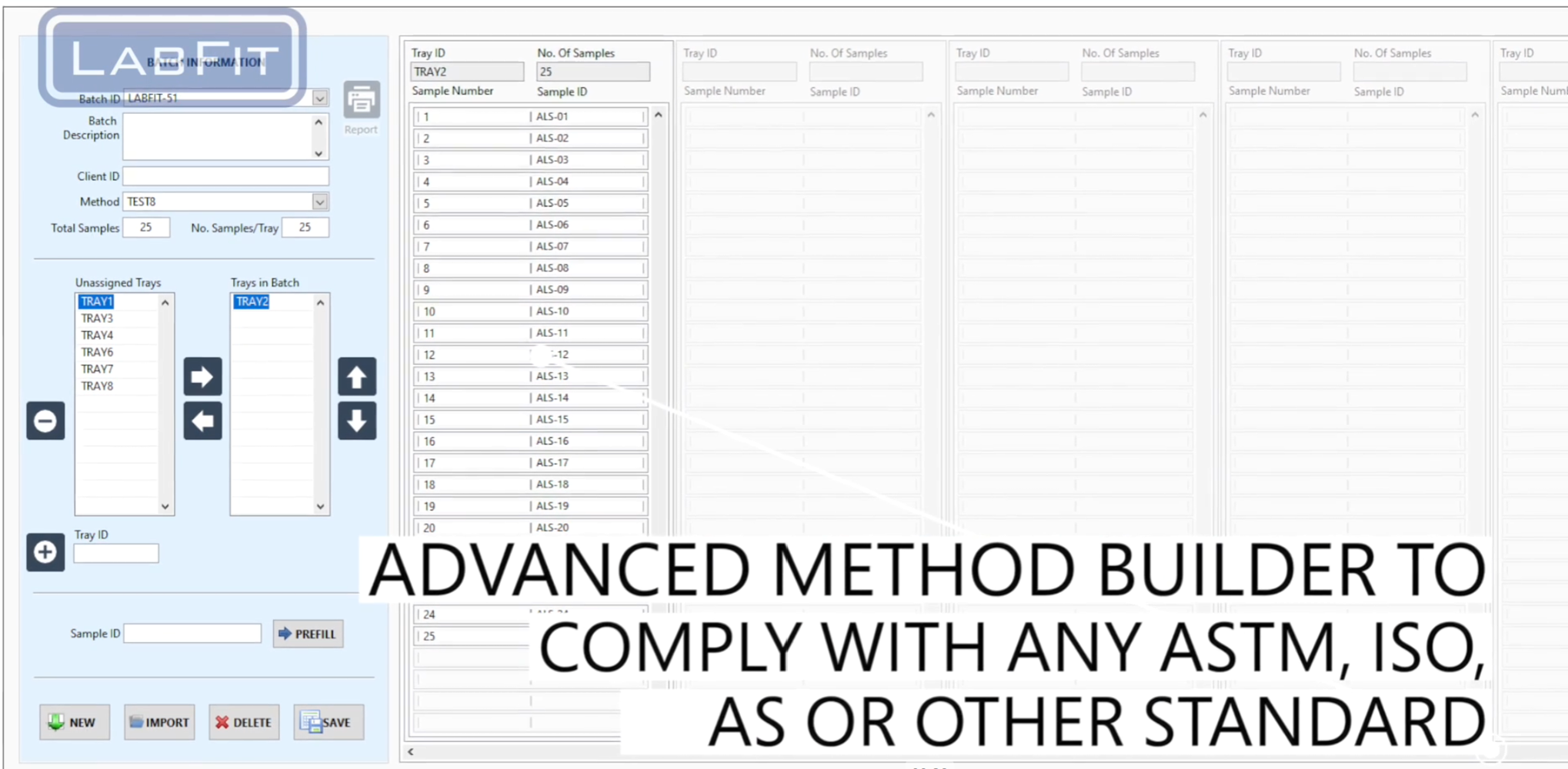

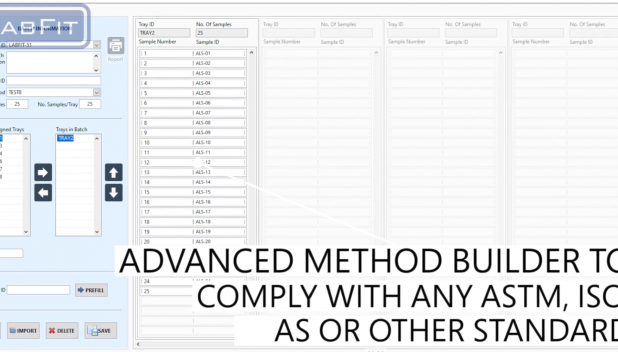

- Configurable method builder enabling adjustment of the weighing process to suit your testing requirements
| Model | AW3304 |
| Description | Freestanding Autoweigh Precision Weighing |
| No. of tray positions | 4 |

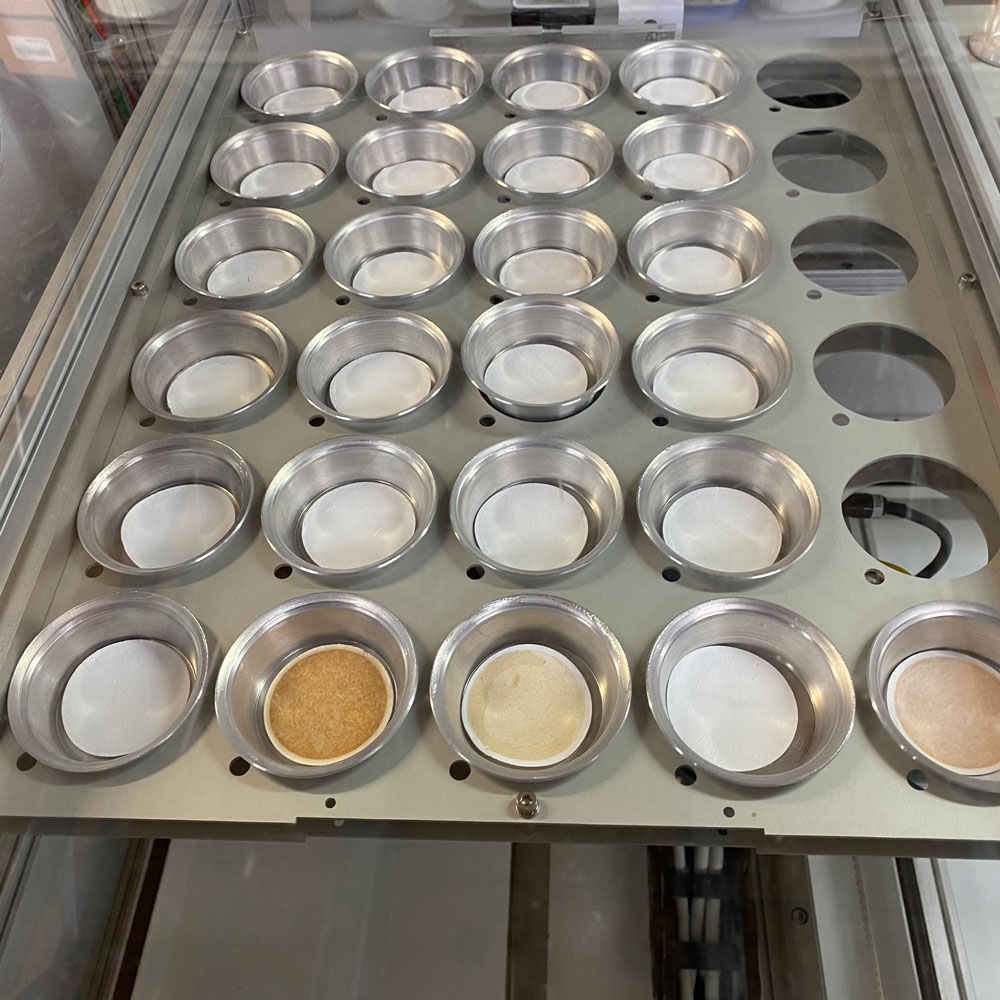

| Samples per tray | 30/40 |
| No. of trays included | 4 |
| Standard tray dimensions (mm) | 396W x 496D x 32H |
| Balance resolution | 0.01mg (5 place) |
| Balance capacity | 320g |
| Balance correction available | Yes |
| Balance remote display | Yes |
| Barcode readers | 4 – for tray ID capture |
| Suspended Solids method compatible | Yes |
| Total Dissolved Solutions method compatible | Yes |
| Accepts test tubes 120×19 | Yes |
| General weighing | Yes |
| Weighing adapter for various applications | Available upon request |
| Climate controlled | Yes |
| Humidity temp. readings | Yes |
| Air supply required | Yes |
| Heater | 2 x 60w |
| Weight | ~203.5kg |
| Dimensions (mm) | 2055W x 846D x 1270H |
| Clearway required for maintenance | 700mm along rear and left sides |
| Power requirements | 100-240VAC 10A |
| Computer | Fully integrated computer with external screen, mouse and keyboard included |
| Software | Windows based software included for full control of the weighing process |
| LIMS integration | CSV data file export |
