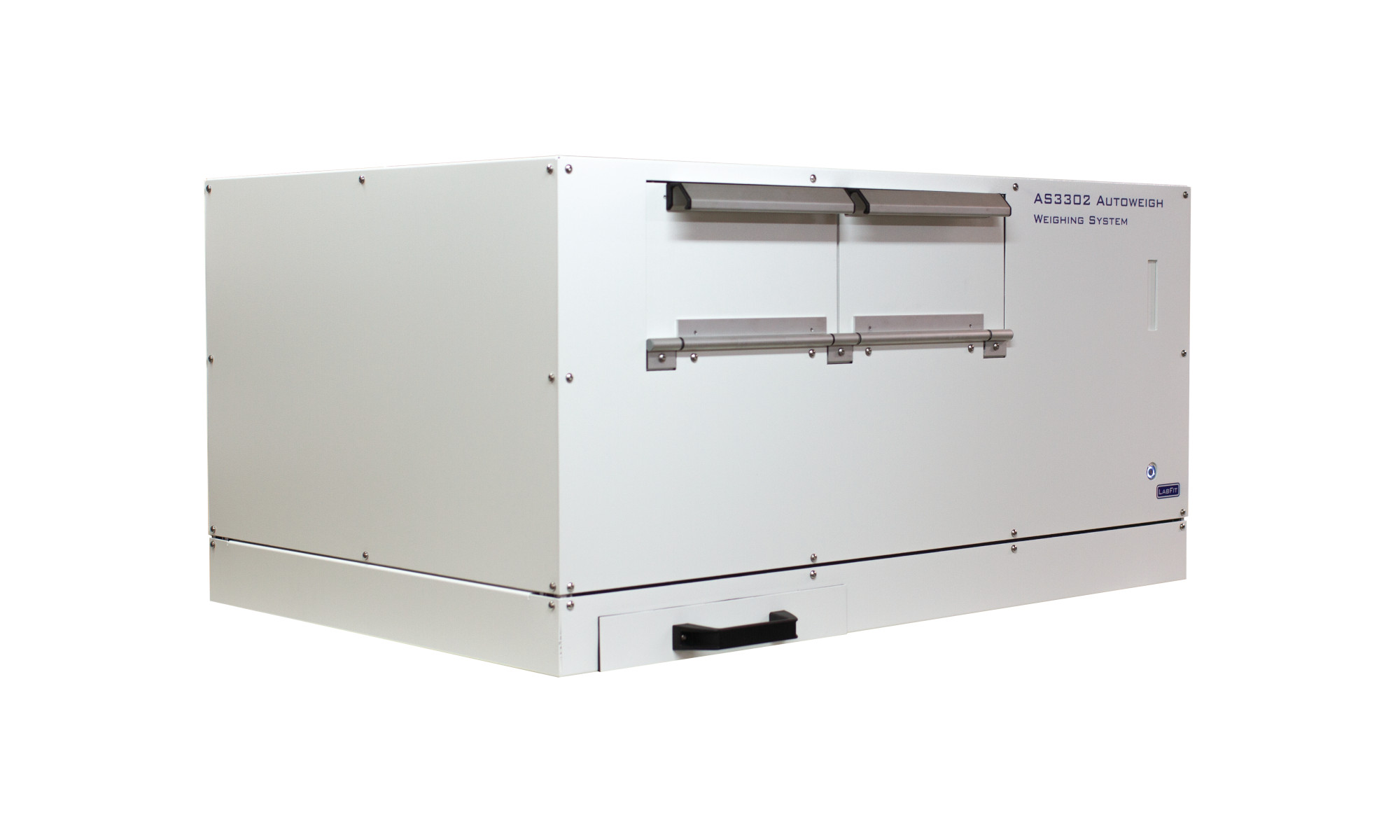

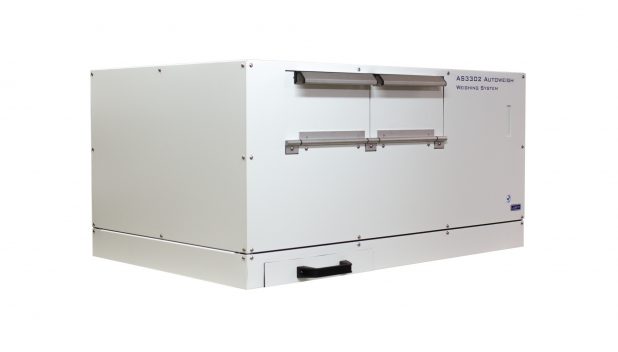

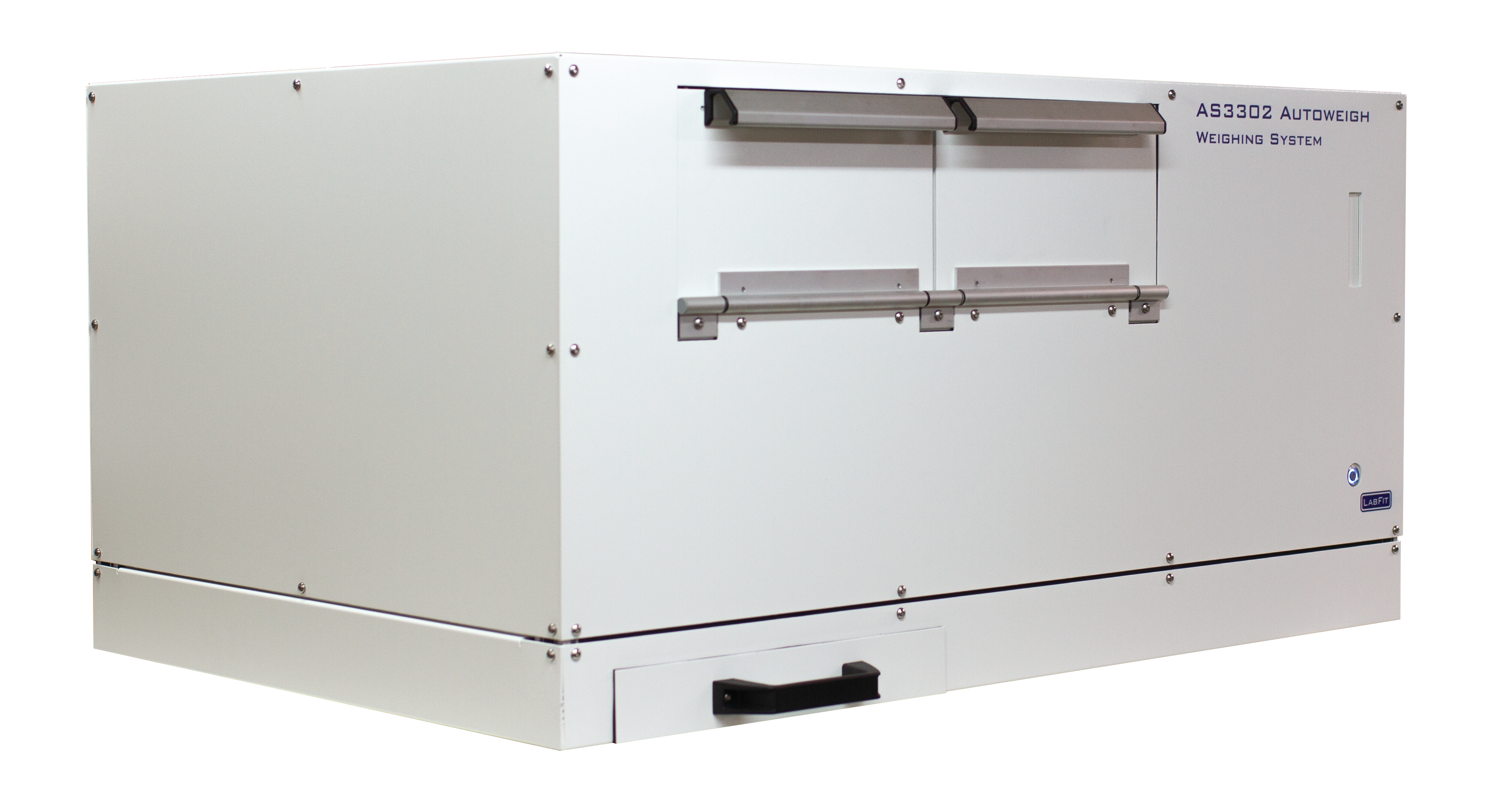

AS3302 Automated Weighing System
Request a Quote
close

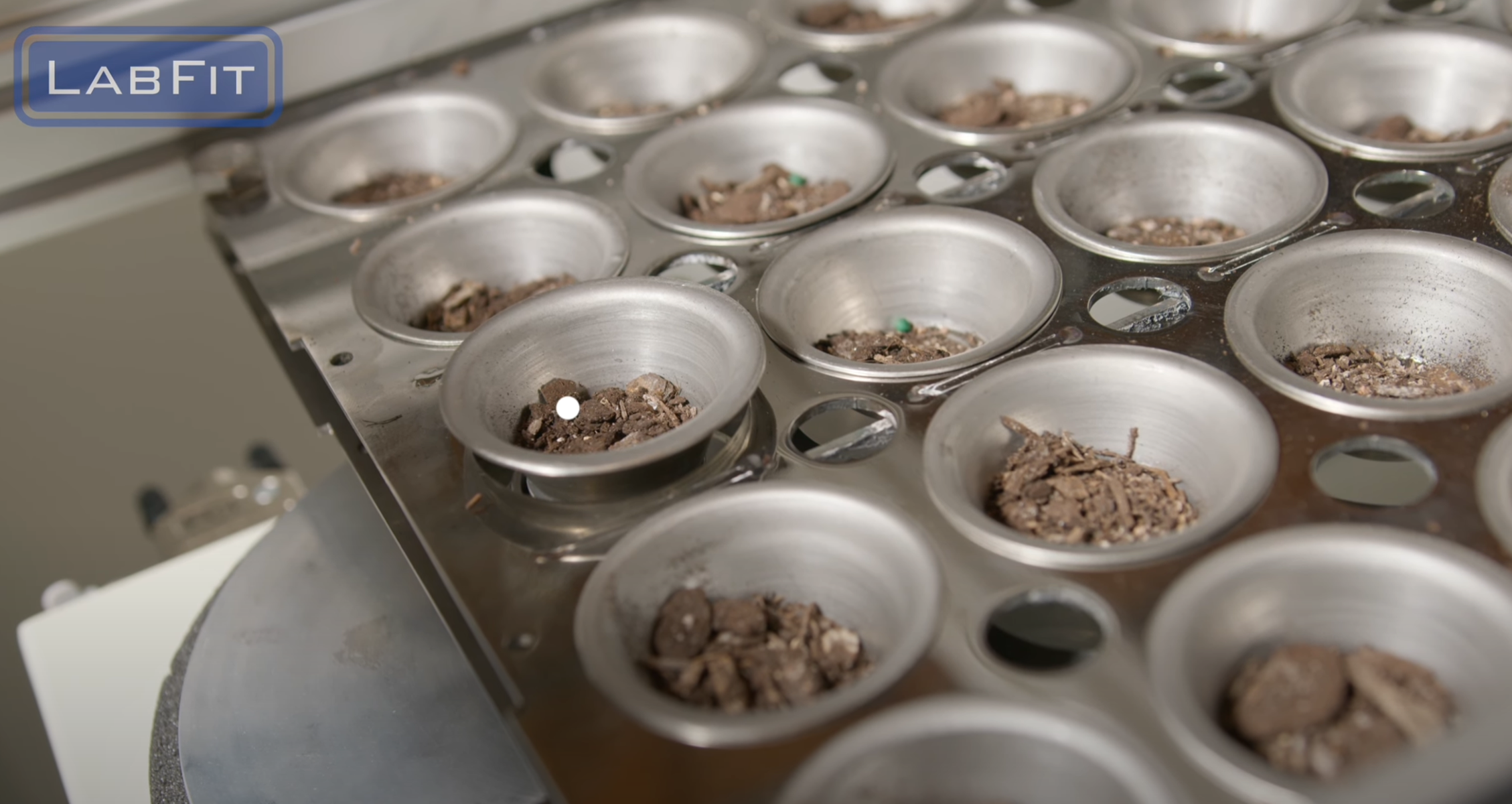

The AS3302 is an automated solution for weighing of samples, such as in the process of determining organic matter in soil. It can be adapted to a variety of applications that require precision weighing of samples.
Key Features

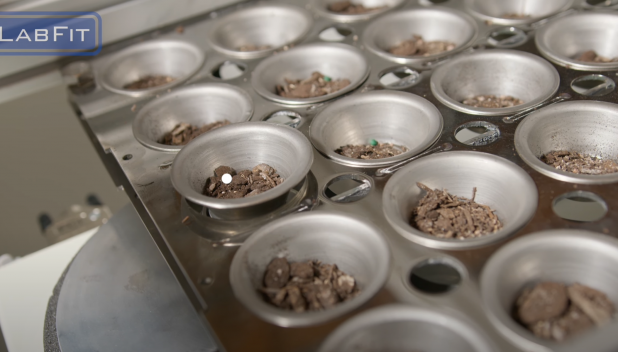

- Fully automatic weighing system with a total capacity of 80 samples

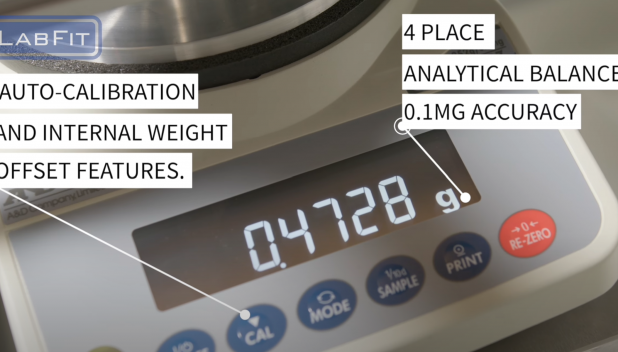

- Controlled weighing environment appropriate for precision weighing up to 0.1mg

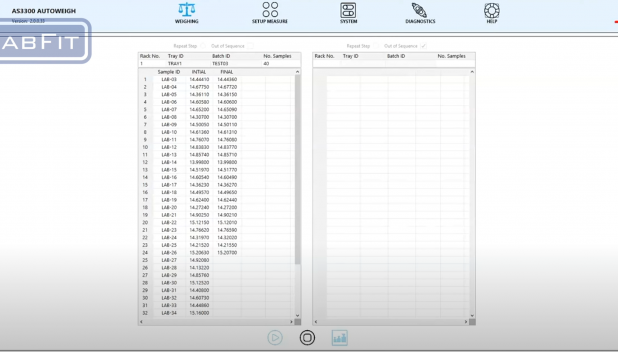

- Automatic data handling: the system records all weights and outputs data into an easy-to-understand CSV file
- Configurable method builder enabling adjustment of the weighing process to suit your testing requirements
| Model | AW3302 | AW3302S |
|---|---|---|
| Description | Benchtop Autoweigh Standard Weighing | Freestanding Autoweigh Standard Weighing |

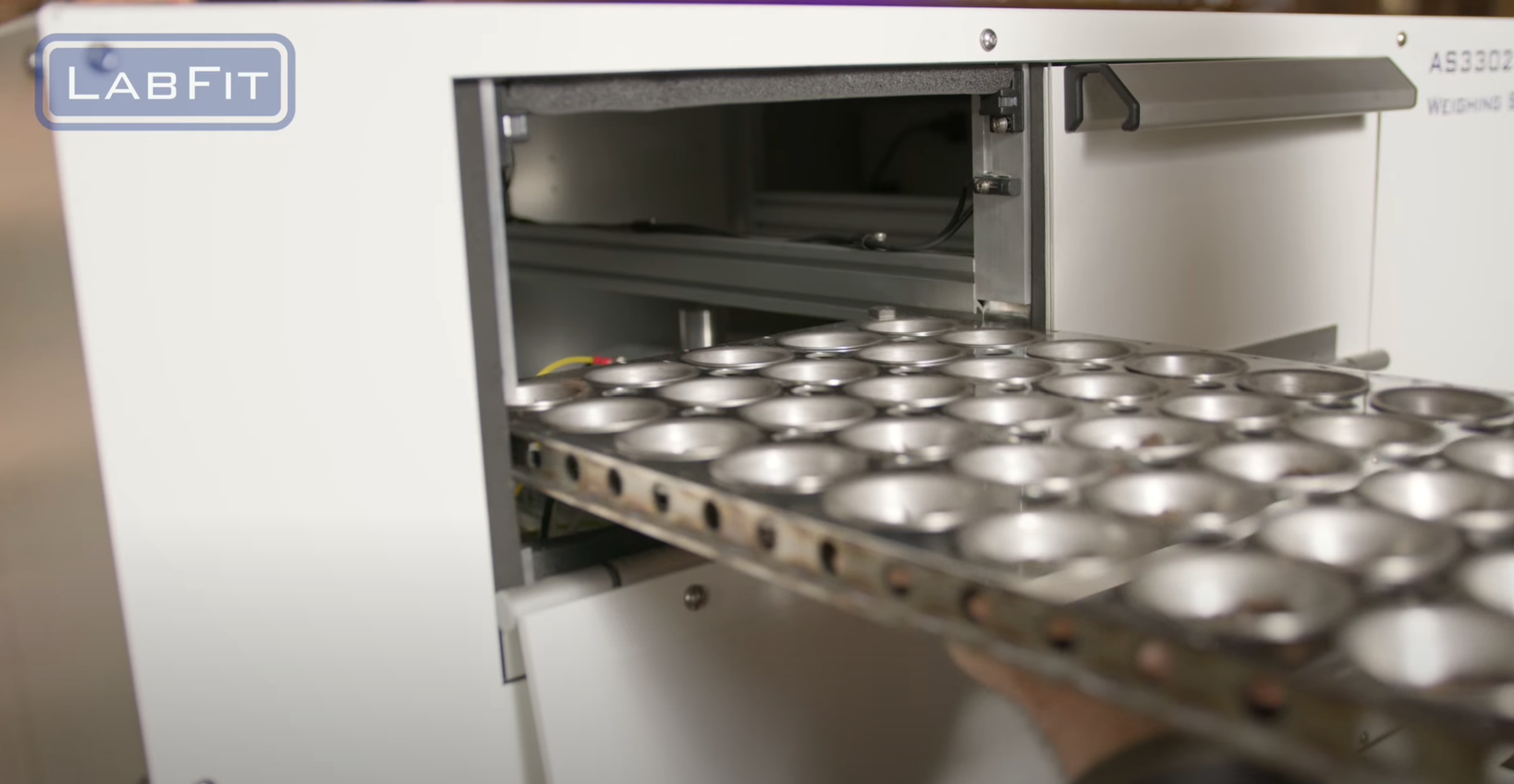

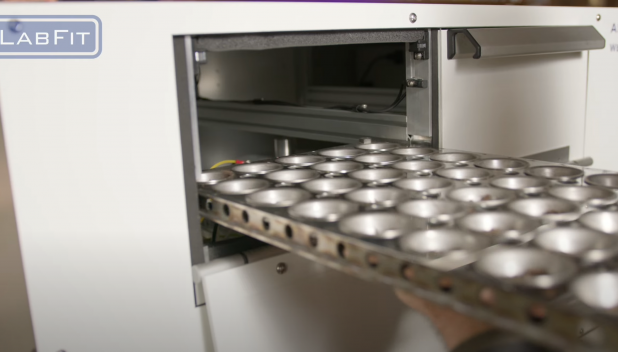

| No. of tray positions | 2 | 2 |
| Samples per tray | 30/40/50/60 | 30/40/50/60 |
| No. of trays included | 2 | 2 |
| Standard tray dimensions (mm) | 275W x 436D x 20H | 275W x 436D x 20H |

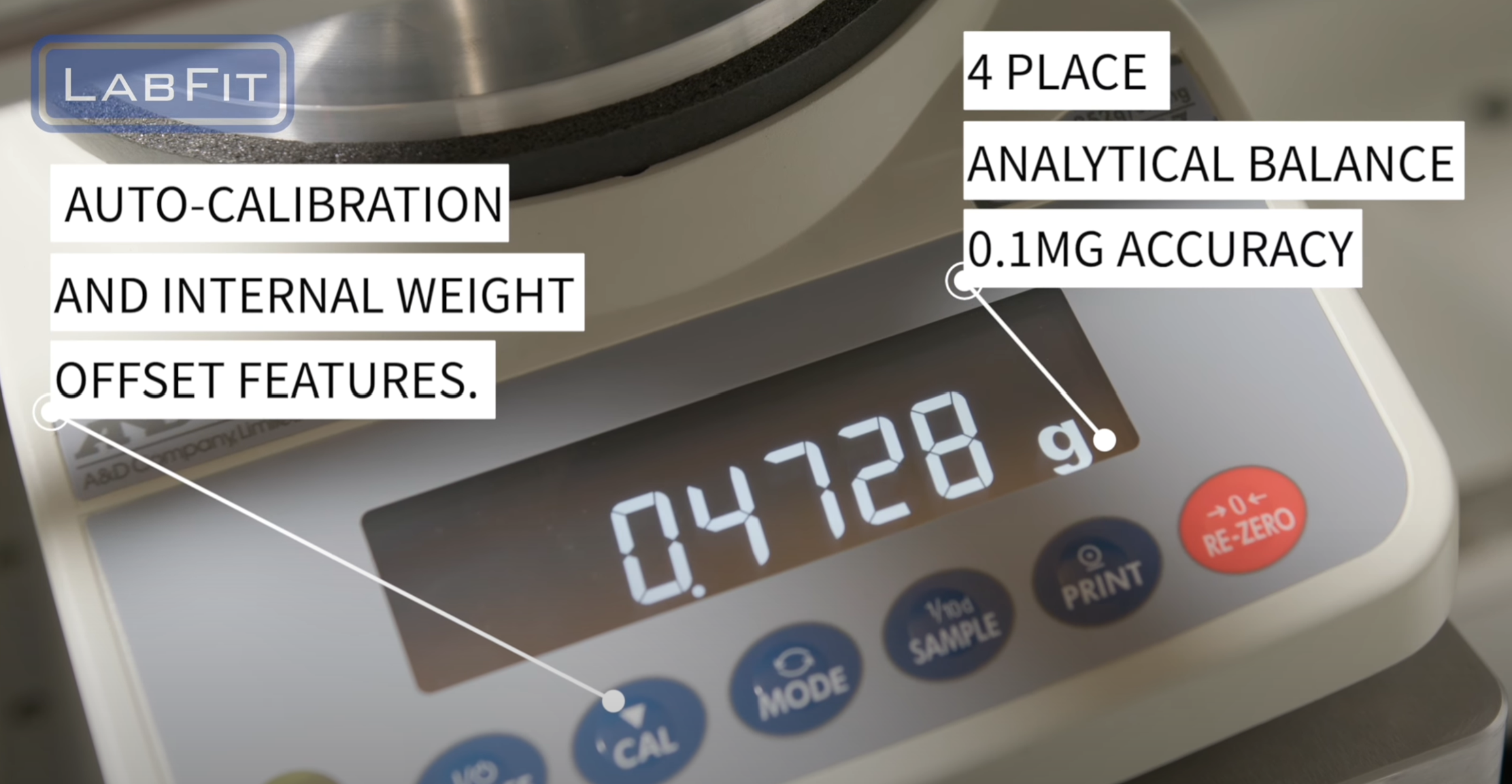

| Balance resolution | 0.1mg (4 place) | 0.1mg (4 place) |
| Balance capacity | 120g | 120g |
| Balance correction available | Yes | Yes |
| Balance remote display | No | No |
| Barcode readers | Keyboard input for tray ID | Keyboard input for tray ID |
| Suspended Solids method compatible | No | No |
| Total Dissolved Solutions method compatible | Yes | Yes |
| Accepts test tubes 120×19 | Yes | Yes |
| General weighing | Yes | Yes |
| Weighing adapter for various applications | Available upon request | Available upon request |
| Climate controlled | No | No – optional |
| Humidity temp. readings | Yes | Yes |
| Air supply required | No | No – optional |
| Heater | 1 X 60W | 1 X 60W |
| Weight | ~94.5kg | ~142.5kg |
| Dimensions (mm) | 1120W x 764D x 590H | 1120W x 764D x 1270H |
| Clearway required for maintenance | No | Yes – 700mm across rear and left sides |
| Power requirements | 100-240VAC 10A | 100-240VAC 10A |
| Computer | Fully integrated computer with external screen, mouse and keyboard included | Fully integrated computer with external screen, mouse and keyboard included |

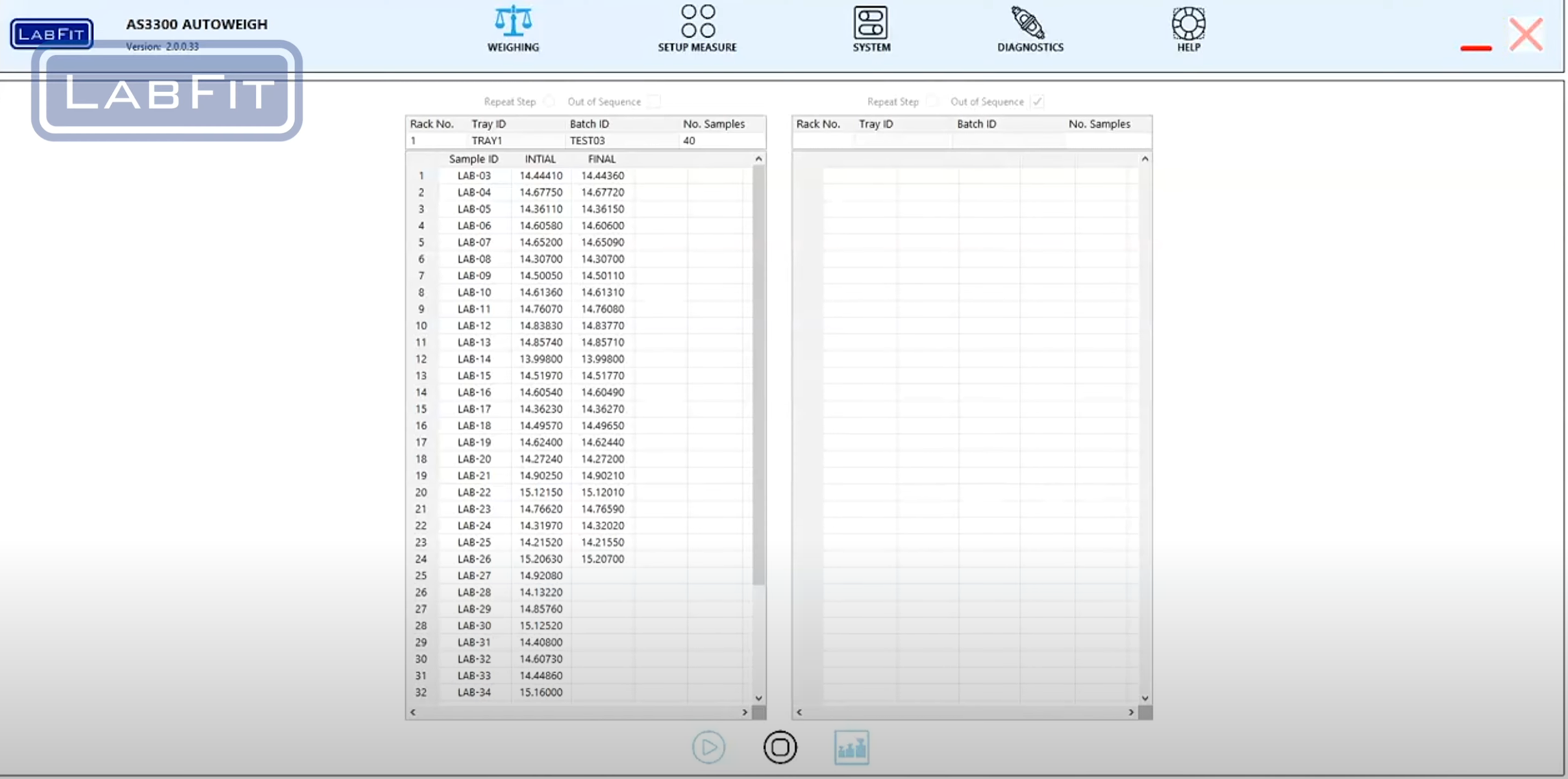

| Software | Windows based software included for full control of the weighing process | Windows based software included for full control of the weighing process |
| LIMS integration | CSV data file export | CSV data file export |
