    Advances in our R & D program have allowed us to bring to market this new Phoenix machine that uses gas only, without the need for oxygen and compressed air. You can now experience all of the great features of our Phoenix fusion machine, in a compact and more economical format.

    Innovative Fusion Technology
    The reputation of the Phoenix has been established in nearly 1000 installations worldwide in the last 20 years. In that time it has shown itself to be the reliable and flexible workhorse of the fusion laboratory; beloved by chemists and laboratory managers alike. The Phoenix GO takes that base level of reliability and provides users with an economic instrument without compromise.

    Simplicity at its best

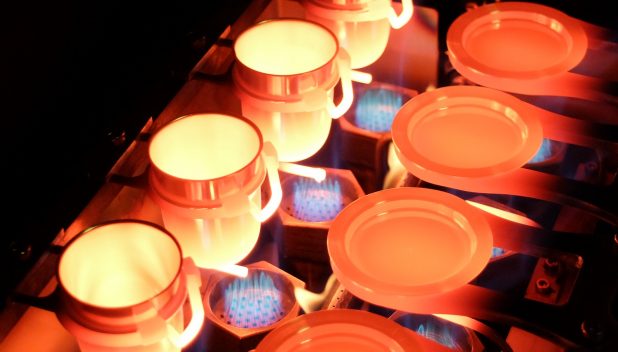

    This machine will allow you to plug, play and Phoenix GO. It requires Gas Only to reach the super high temperatures required for even difficult sample fusions (Patent Pending gas burner design). The design is extremely robust, as is the case with all Phoenix fusion machines. The perfect flame of a Phoenix is unrivaled and will give your laboratory complete control over the fusion process.

    Advanced User Interface

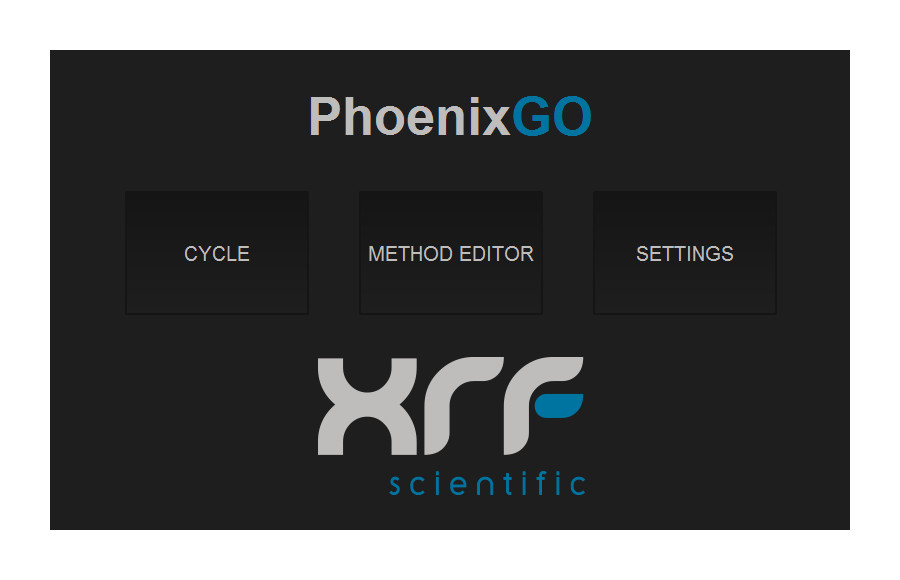

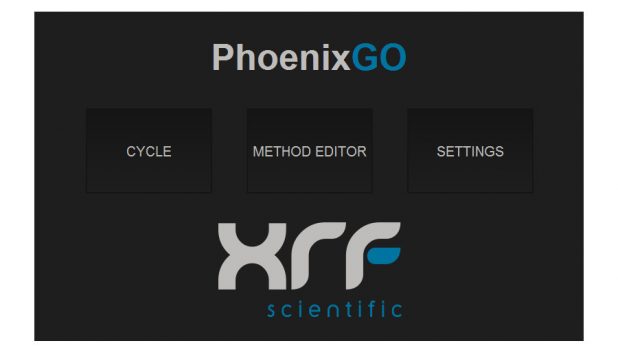

    The Phoenix GO user interface has the look and feel of a modern laboratory instrument. This simple touch screen interface is easy to use and allows the programming of recipes, visual tracking of the status of the machine and easy access to higher functionality and service.

    Established Reliability
    The Phoenix GO takes all of the great features established by Phoenix fusion machines through millions of hours of operation across the world. If you have ever owned a Phoenix machine before, you will know how low the cost of ownership is and how easy they are to maintain. Just ask us about one of the many customer reference points where a Phoenix has been operating for over 20 years!

    • Preheating temperature and duration
    • Main heating temperature and duration
    • Temperature ramping and set points
    • Swirling duration, speed and frequency – multiple speeds in one cycle
    • Pouring angle and speed
    • Multiple stage cooling
    • “Fusion complete” alarm
    • XRF or ICP mode

    ICP mode:

    • Pre-Heat and Slow Swirl
    • Main Melt (Melt temperature can range between (450 – 1100 degrees C)
    • Multiple HEAT stages
    • Cooling with slow swirl
    • 7 minute typical fusion time

    The gas burners and all high temperature items are enclosed behind a glass door. All external surfaces are safe to touch. Burner safety includes fan detection, airflow detection, flame detection on every burner (via thermocouple), standard pilot safety, plus double redundancy on the valve train.

    Construction External aluminium case
    Door Cool touch glass viewing window
    Size (HxWxD) 530 x 763 x 598mm
    Weight 75kg
    User interface Touch screen user interface
    Programmable recipes Up to 100 user-defined recipes with naming flexibility
    Burner Gas-only fan-forced burner – 4-positions
    Temperature measurement Thermocouple near flame (indicative)
    Power requirement 50–60Hz, 100–240Volt AC
    Cradle/mould holders Inconel, hastalloy or palladium
    Crucible 30–40g
    Mould 32/40mm, 40–100g
    Throughput 20 beads per hour
    Noise <70db

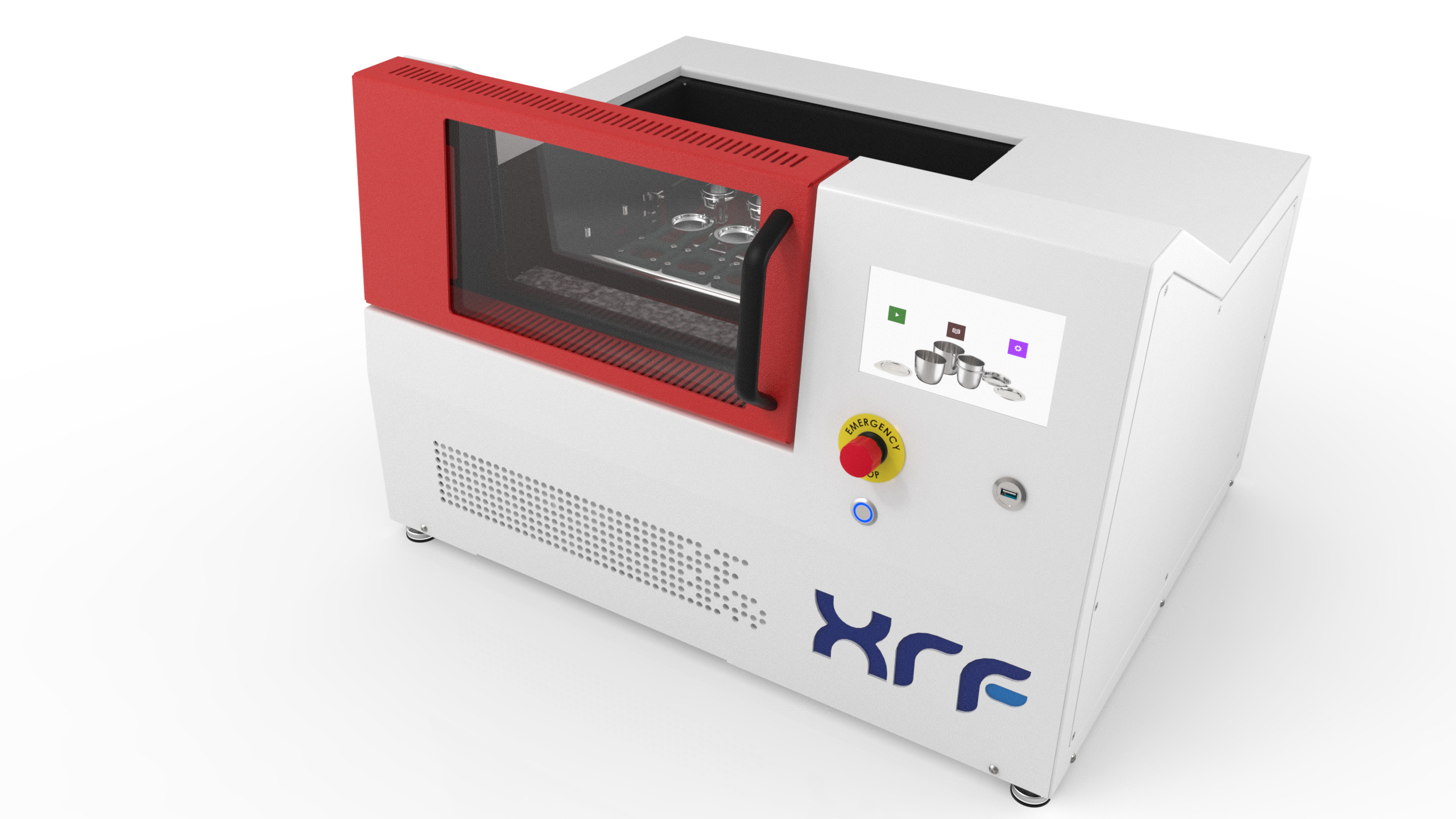

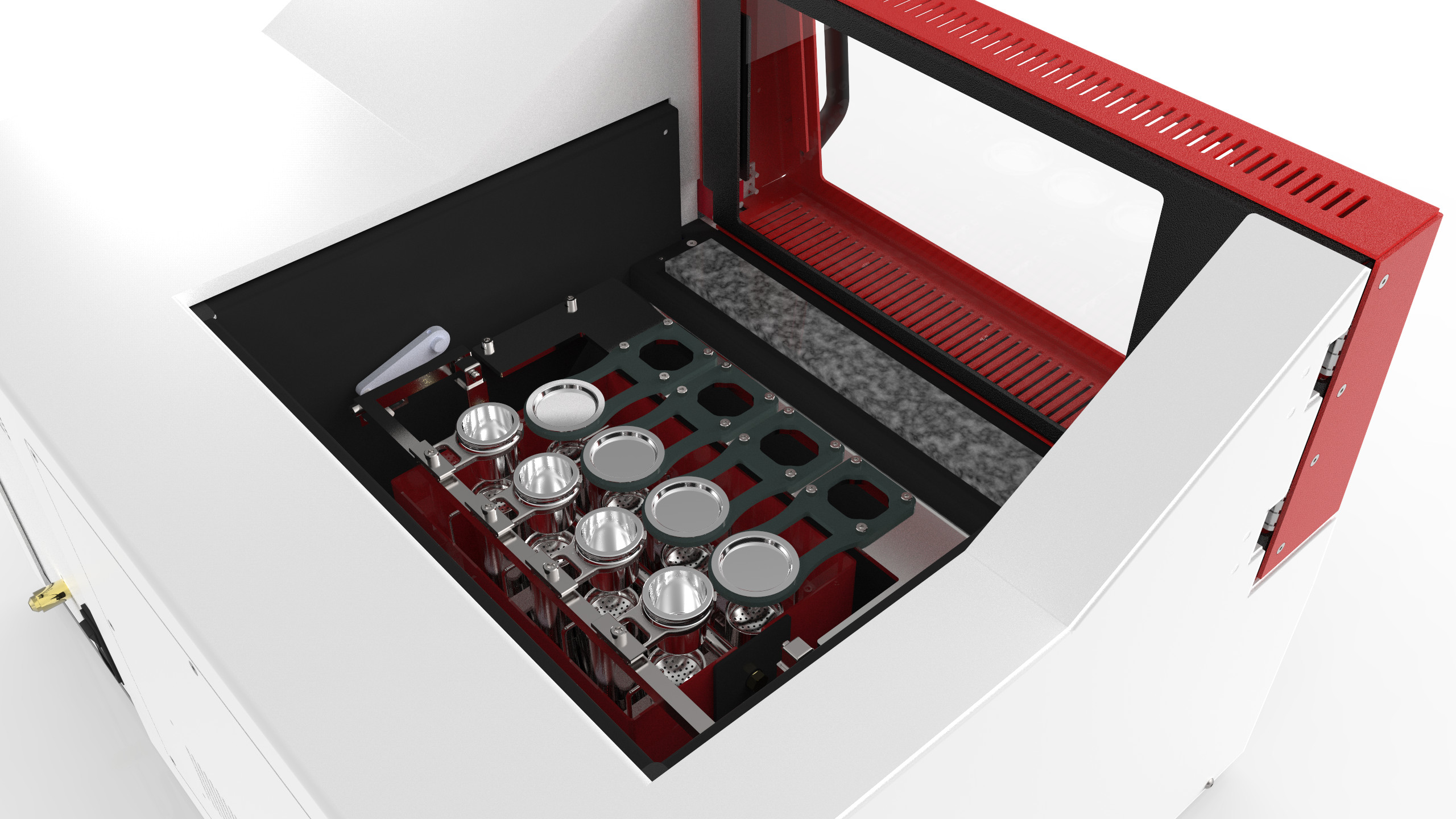

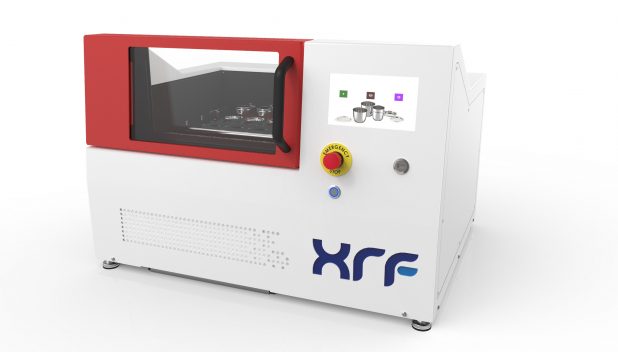

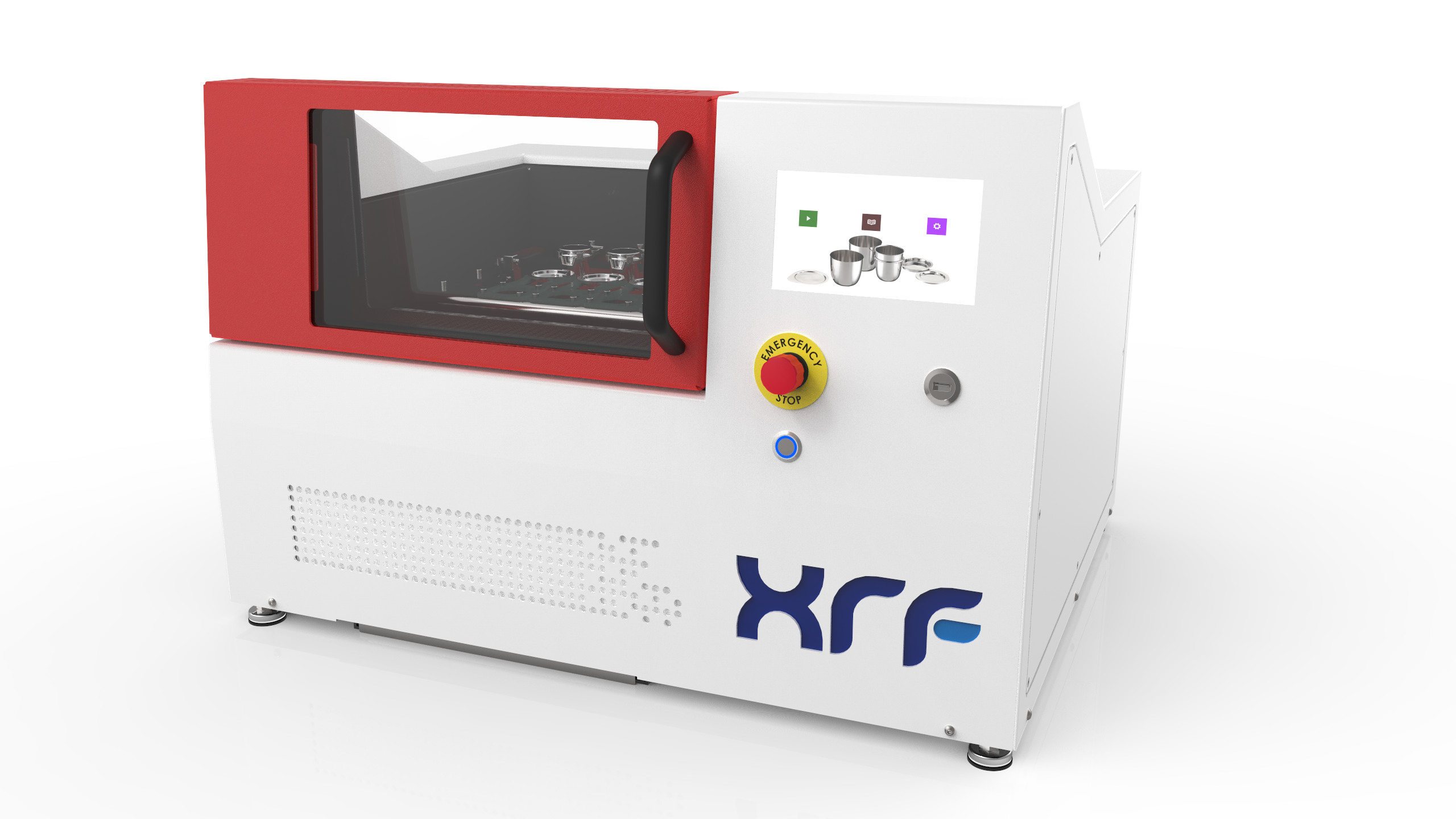

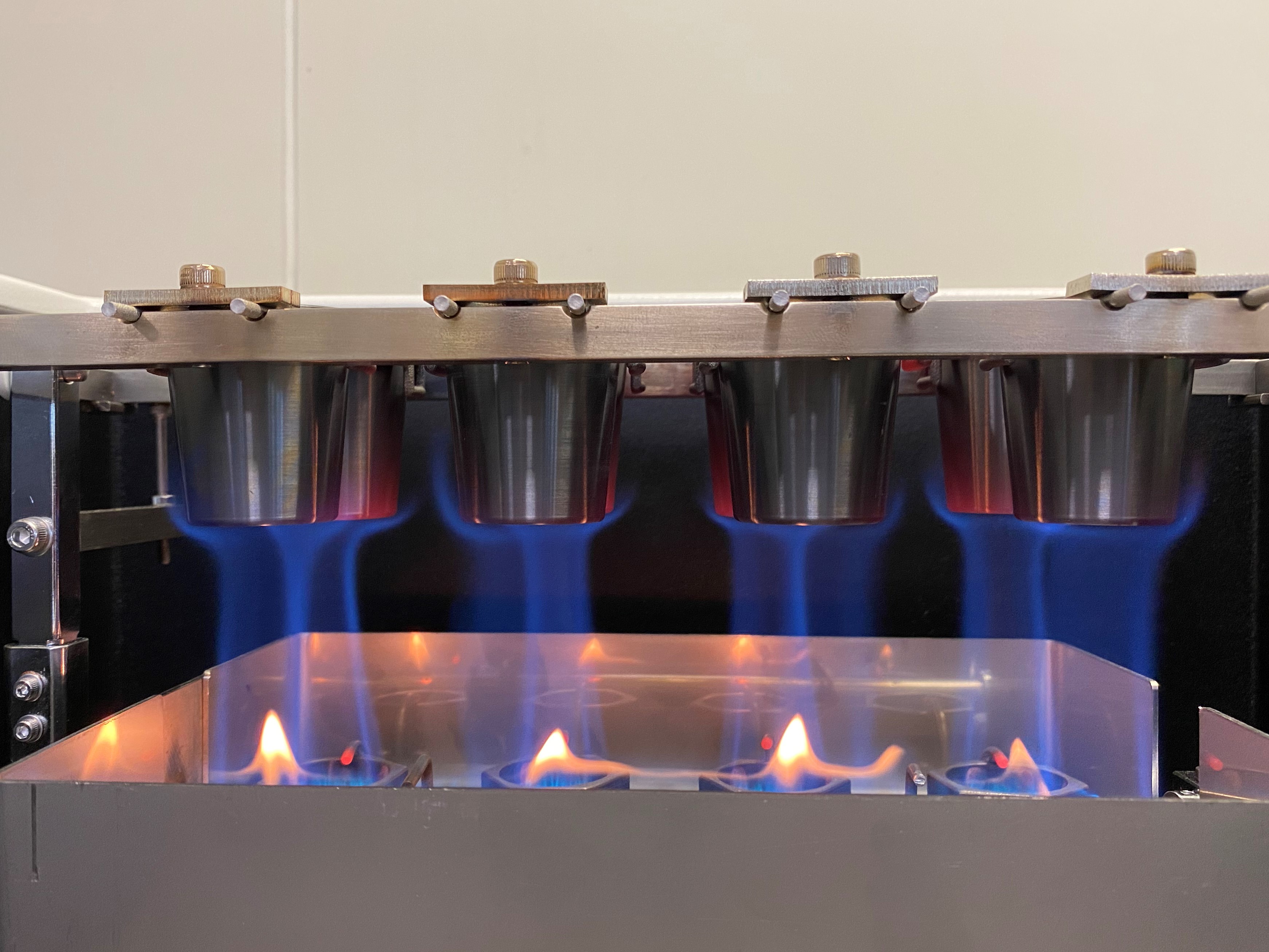

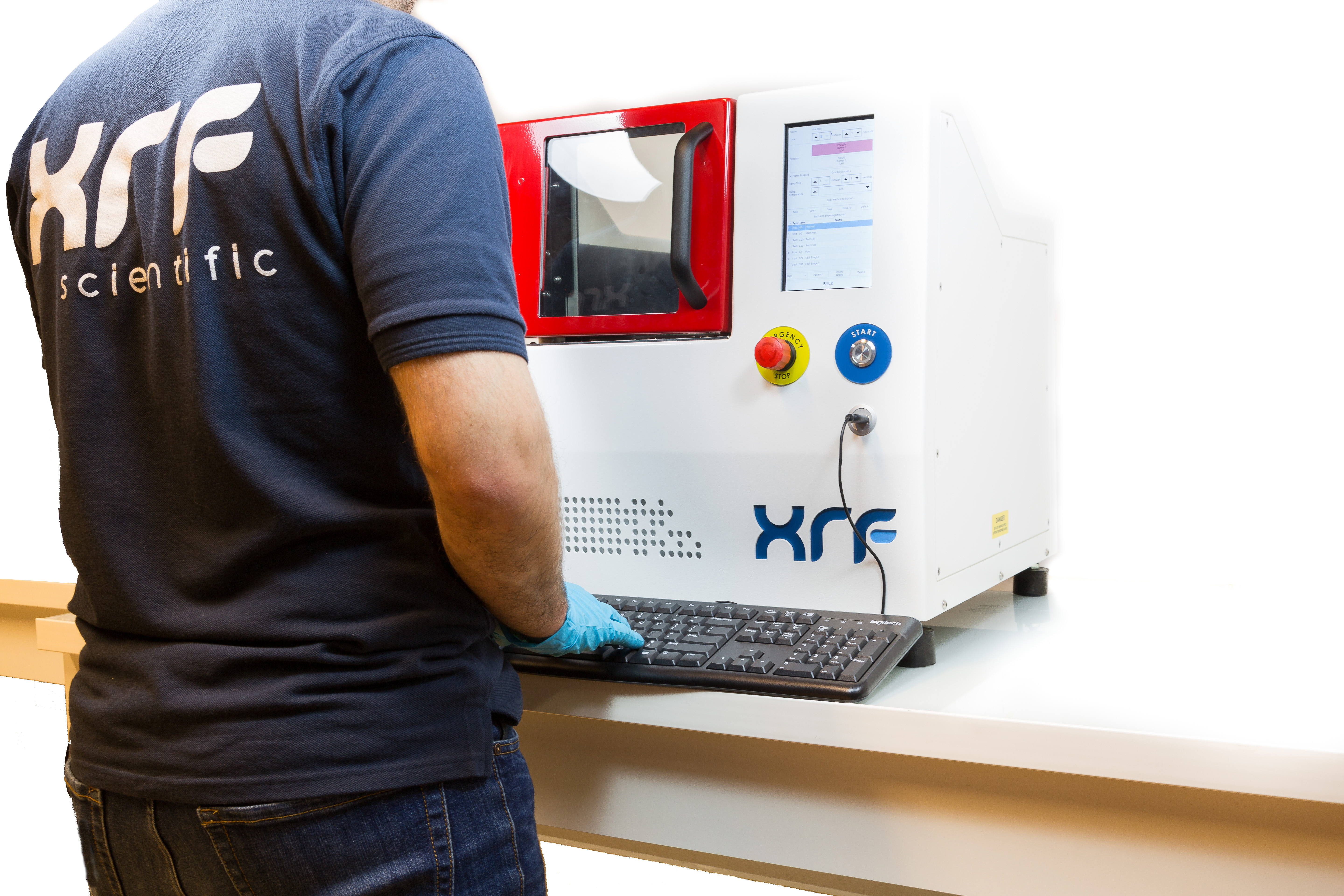

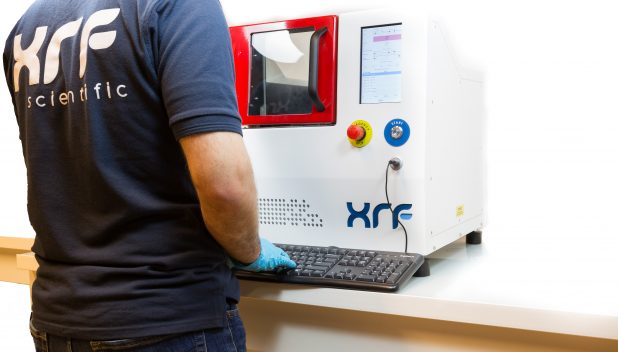

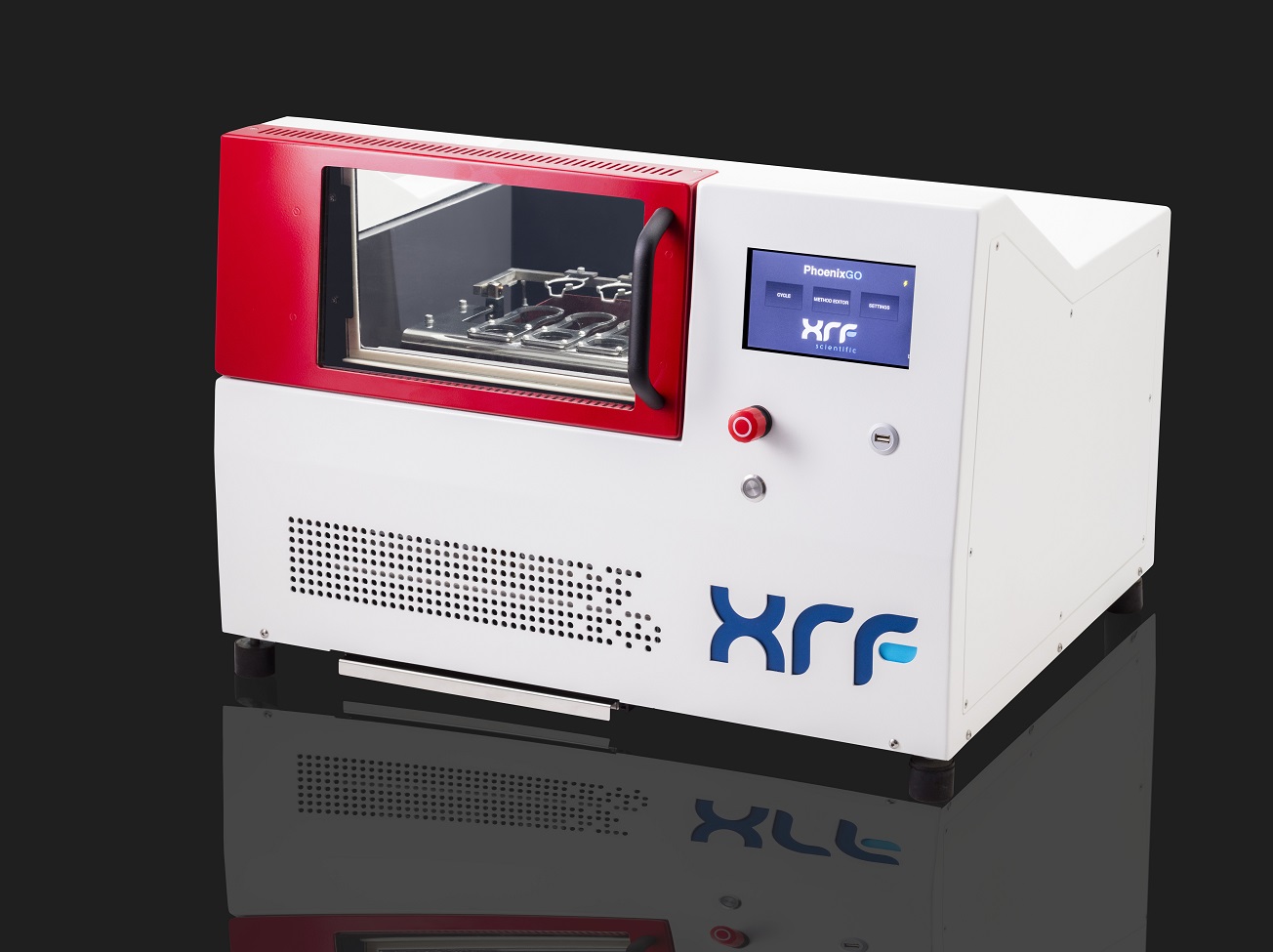

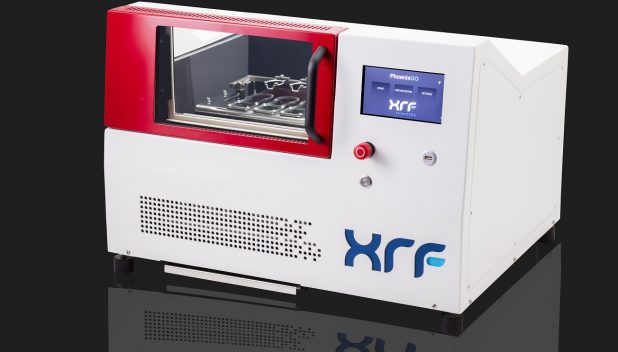

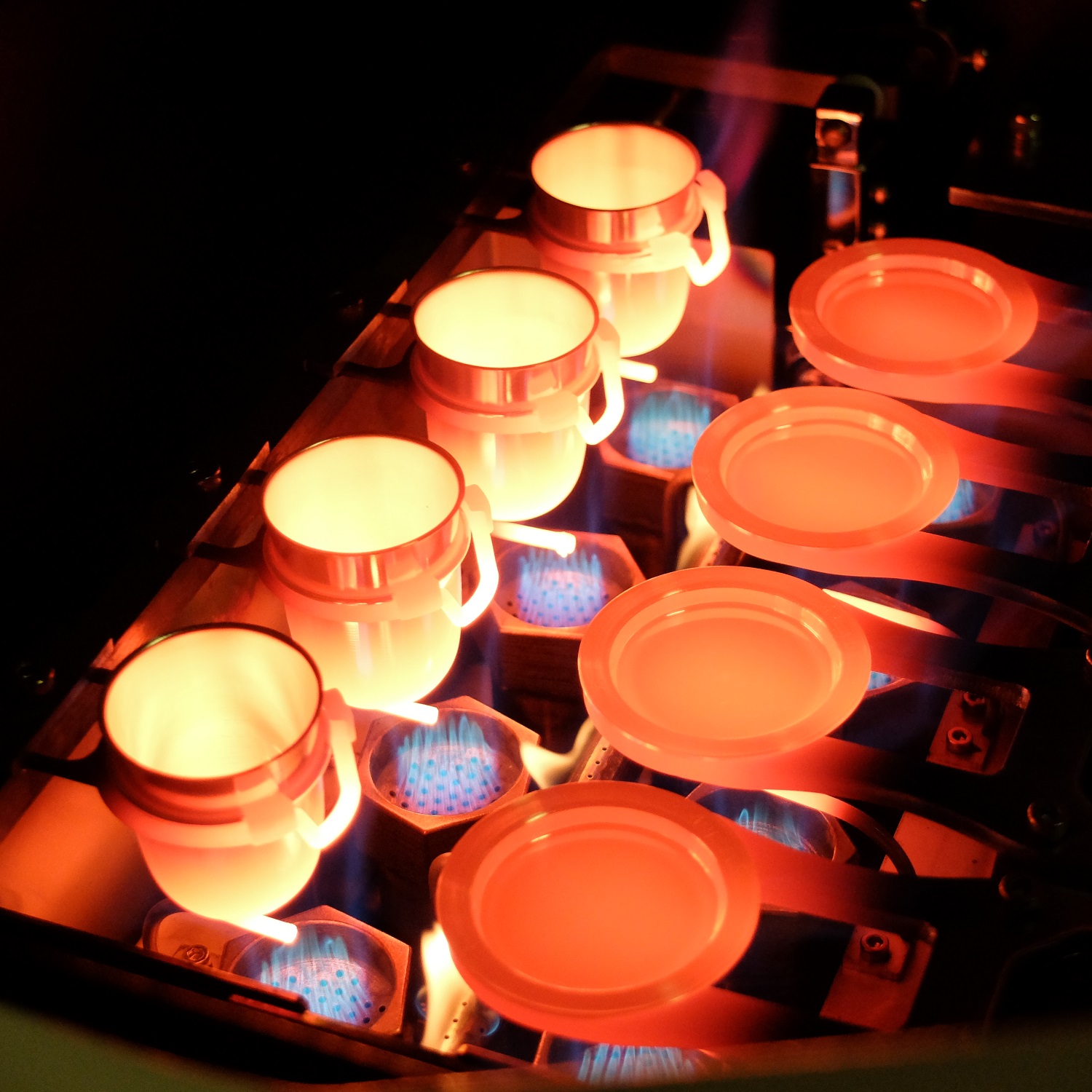

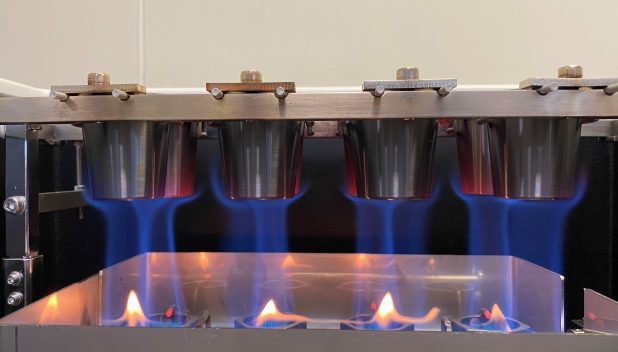

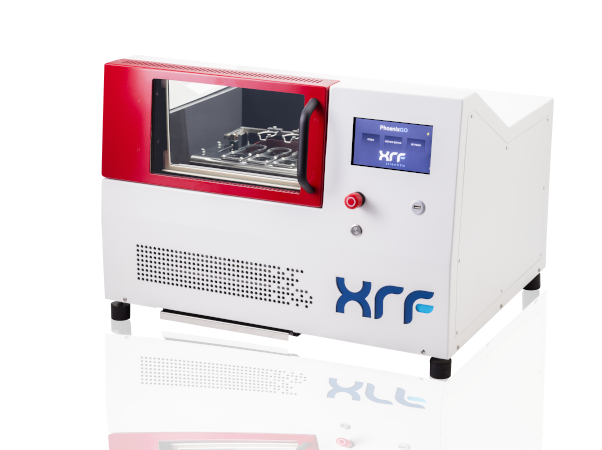

    Phoenix GO - gas only fusion machine Phoenix GO - gas only fusion machine Full control over temperature, swirling and cooling Extensive safety features including enclosed design Advanced User Interface Safe and controlled, high temperature flame ICP mode Keyboard access via USB port Phoenix GO - gas only fusion machine < 01 of 08 >
