Motorized Hydraulic Press

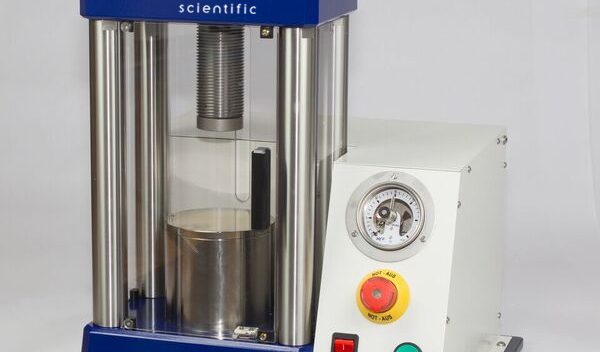

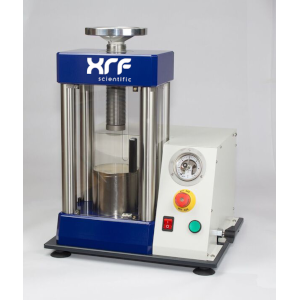

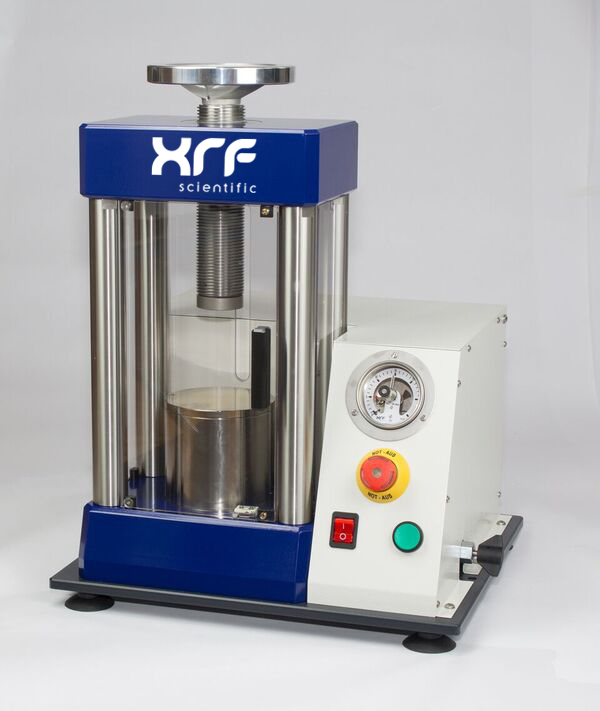

The xrPress ET25, is a power assisted hydraulic press operating to 25 Tons. The press has been designed to handle a wide variety of pressing applications, including XRF and IR sample preparation.

The pressure can be directly set at the manometer. A safety switch prevents pressing with an open door. An illuminated emergency pushdown button is also mounted at the front plate.
Pushing the green button starts the pressing process and it stops with reaching the predefined pressure. The blue button releases the pressure gently until the position is back in his normal position.

The xrPress ET25 is durable, easy to use and ideal for repetitive pressing operations at higher loads when used in conjunction with Lightweight Dies for x-ray fluorescence sample preparation

Key features
• Compact bench top design
• Polycarbonate safety guards
• Safety rated lid switch
• Adjustable upper bolster
• Large working distance between pressing surfaces
• Vacuum Ports
• Pressure release valve
• Secure fixation with rubber suction feet
• Low noise operation < 70 dBa

• Maximum Load: 25 Tons
• Load Range (1.0 Ton increments): 2 – 25 Ton
• Upper Pressing Area (Top Screw Diameter): 45mm
• Top Lead Screw Vertical travel: 112mm
• Lower Pressing area (Piston Diameter): 105mm
• Piston Stroke: 25mm
• Max/Min Dist. between Pressing Faces: 185mm – 73mm
• Dimensions (H min/max x W x D): 497/609 x 370 x 400 mm
• Weight: 63kg

Ordering information
– XRPRESSET25: Motorized Hydraulic Press – 25 Tons (230v, 50Hz)

Shipping dimensions
– Dimensions: 800mm(L) x 600mm(W) x 670mm(H)
– Weight: 85kg
